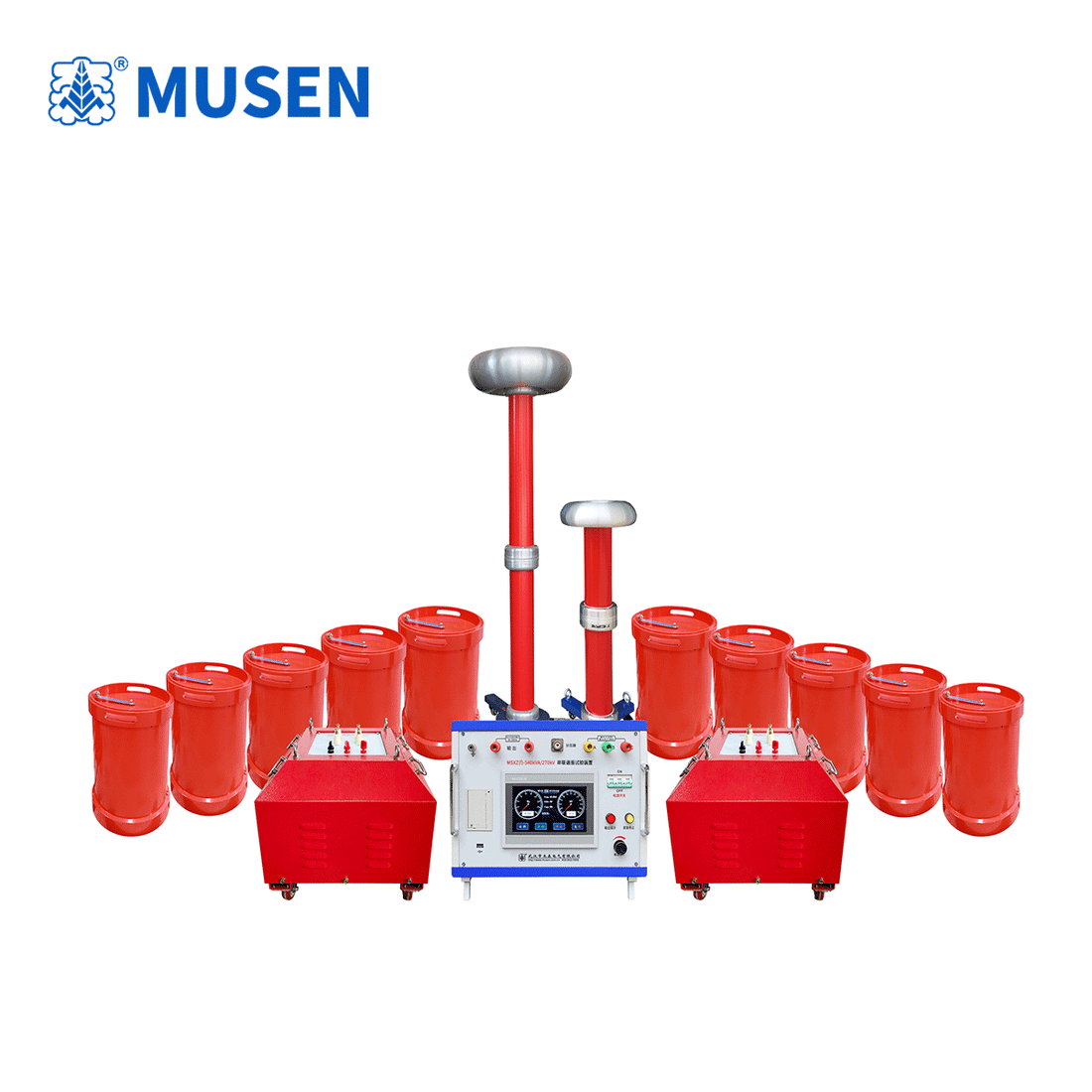

Why Choose the AC Resonance Test System for High Voltage Infrastructure?
In the field of high-voltage (HV) engineering, ensuring the dielectric strength of Gas Insulated Switchgear (GIS) and long-distance transmission cables is critical for grid stability. Traditional power-frequency testing often faces logistical hurdles due to the sheer size of the equipment required. The Ac Resonance Test System offers a sophisticated, high-efficiency alternative, leveraging electrical resonance to deliver high-voltage outputs with minimal power input. This article outlines why international power utilities and electrical contractors are increasingly adopting this technology from Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) for their commissioning needs.
1. How Does the Resonance Principle Optimize On-site Testing?
The efficiency of the Ac Resonance Test System lies in its ability to tune the circuit frequency so that inductive and capacitive reactances cancel each other out. This state of resonance allows for the generation of high voltage across the test object while only drawing active power to cover internal losses. For overseas electrical engineering firms, this means significantly reduced equipment weight—often 1/5th to 1/10th of a traditional test transformer—making it ideal for remote substation sites where heavy lifting equipment may be limited.
2. Why is Sine Wave Purity Critical for GIS and Cable Longevity?
Unlike some alternative testing methods, a Series Resonance Test System acts as a natural high-quality filter. The circuit only allows the fundamental frequency to resonate, effectively suppressing harmonics. This results in a pure sine wave output, which is essential for accurate insulation diagnostics. By ensuring the test voltage is free from harmonic distortion, engineers can prevent "over-stressing" the insulation of expensive assets like XLPE cables, thereby extending their operational lifespan and reducing the risk of premature failure post-commissioning.
3. What Safety Mechanisms Protect Against System Flashovers?
High-voltage testing inherently carries the risk of insulation breakdown or flashover. Modern systems are designed with "self-extinguishing" characteristics. If a breakdown occurs in the test specimen, the circuit immediately falls out of resonance, causing the voltage to collapse instantaneously. This inherent safety feature prevents the arc from sustaining and damaging the test object further. Furthermore, our systems integrate real-time digital monitoring to capture the exact breakdown parameters, providing invaluable data for forensic engineering analysis.
4. Core Technical Specifications and Performance Data
✔ Advanced Protection: The system features comprehensive protection against overvoltage, overcurrent, and zero-start conditions. In the event of a flashover, the mechanism records the specific voltage value for subsequent analysis.
✔ Ultra-Portable Design: Each component is engineered for lightweight portability, ensuring ease of transport for field operations across diverse geographical terrains.
✔ Flexible Operating Modes: Users can choose between Fully Automatic, Manual, or Automatic Tuning with Manual Voltage Boost modes to optimize efficiency based on specific field constraints.
✔ Digital Data Management: Supports internal data storage and remote printing. Each record is numerically identified for rapid retrieval and reporting.
✔ Real-time Visualization: A large LCD displays the frequency sweep curve in real-time, allowing operators to visually confirm the resonance point during the automatic sweep process.
✔ Future-Ready Technology: Based on a high-speed DSP platform, the system allows for seamless software upgrades and functional customization to meet evolving international testing standards.
5. Conclusion: Is Your Testing Strategy Meeting Global Standards?
In conclusion, the Ac Resonance Test System is no longer just an alternative; it is the industry standard for high-capacitance HV testing. By delivering superior wave quality, unmatched portability, and robust safety protocols, it ensures that your GIS and power cable installations meet the highest levels of reliability. Wuhan Musen Electric Co., Ltd. remains committed to providing authoritative, data-driven solutions that empower power utilities worldwide to maintain a resilient and efficient electrical grid.
6. Common Questions About Resonance Testing (FAQ)
Can this system test different voltage levels with the same equipment?
Yes. By using a modular reactor design, you can connect multiple reactors in series (for higher voltage) or parallel (for higher current), making the system adaptable to various equipment ratings from 35kV to 500kV and beyond.
How does the system handle "System Detuning"?
System detuning occurs during a flashover or unexpected change in capacitance. The system's DSP controller detects the shift in the phase angle and immediately shuts down the high-voltage output to protect both the operator and the equipment.
What is the typical frequency range for these tests?
For power cables and GIS, the frequency typically ranges from 20Hz to 300Hz. This range is specifically chosen to be close enough to power frequency (50/60Hz) to be valid, while allowing for a smaller, more portable reactor design.
Is the test data compatible with international reporting standards?
Absolutely. The digital output and remote printing capabilities ensure that all test results—including frequency, voltage, and duration—can be directly integrated into official commissioning reports required by global utility owners.
