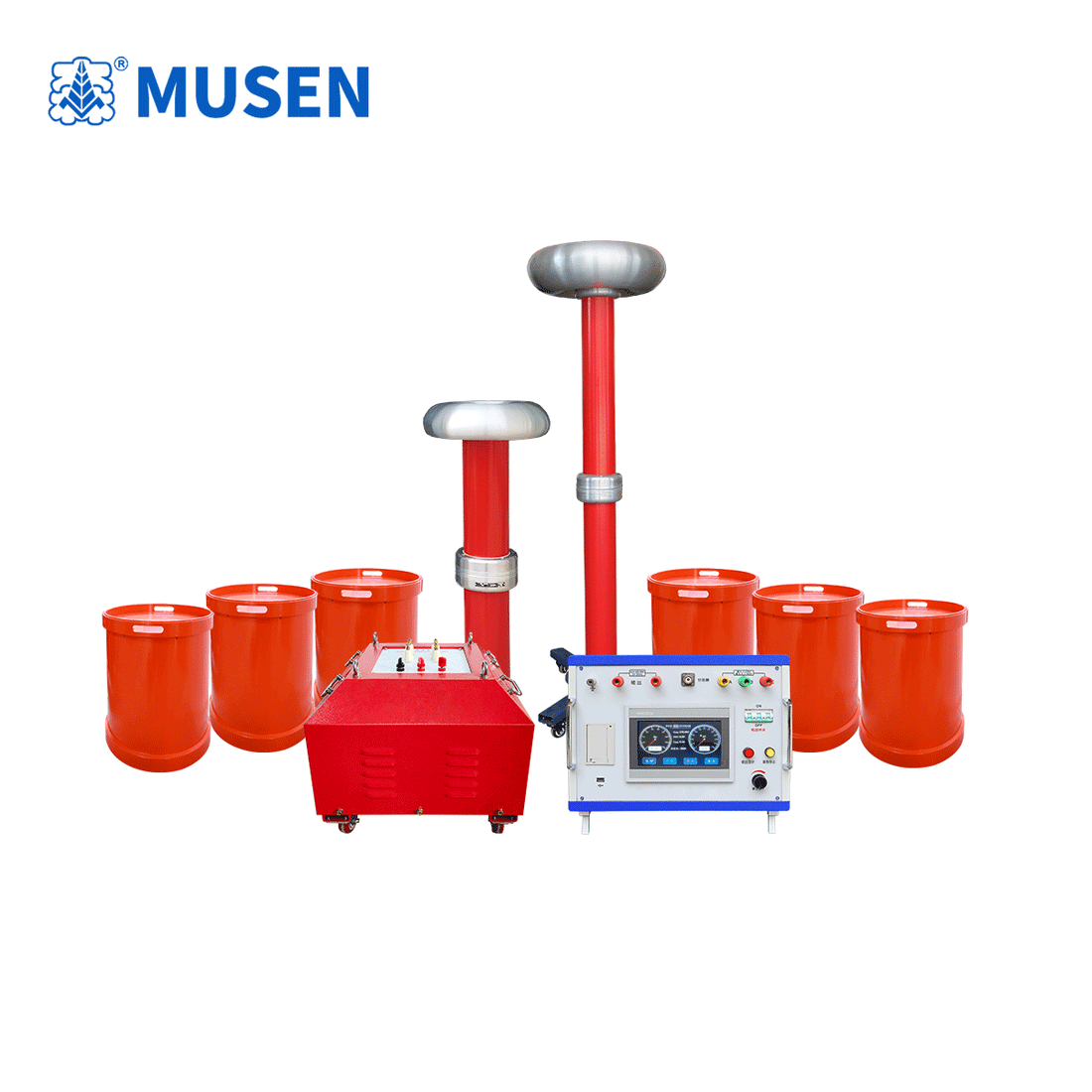

Is the Portable Series Resonance Test System the Safest Solution for HV Insulation?

Strategic Overview of Modern High-Voltage Insulation Diagnostics

In the evolving landscape of global power infrastructure, ensuring the reliability of high-voltage (HV) assets is no longer optional—it is a critical mandate for grid stability. For overseas power engineering firms and utility operators, the challenge lies in conducting rigorous insulation assessments in remote or space-constrained environments. The Series Resonance Test System has redefined industry standards by offering a high-efficiency, resonant-circuit solution that provides superior AC withstand capabilities while minimizing the physical footprint of the testing apparatus. Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) remains at the forefront of this technology, delivering engineered excellence to international power projects.

1. Why Choose Resonance Over Traditional High-Voltage Testing?

Standard high-potential (hipot) testers often require massive transformers that are logistically challenging for field use. In contrast, a Series Resonance Test System utilizes the principle of electrical resonance—where inductive and capacitive reactance cancel each other out—to generate high voltage from a low-power source.

• Power Efficiency: The system requires only a fraction (typically 1/30th to 1/50th) of the power required by traditional methods.

• Waveform Quality: It produces a pure sine wave, which is essential for accurate insulation stress analysis without the harmful harmonics of DC testing.

• Safety Margin: If a specimen fails, the resonance is immediately broken, preventing the high-current surges that often cause collateral damage during traditional testing.

2. Technical Specifications and Performance Data

For engineering decision-makers, the technical integrity of the equipment is paramount. Our systems are built on a modular architecture to ensure maximum uptime and adaptability.

3. Operational Advantages in Field Power Engineering

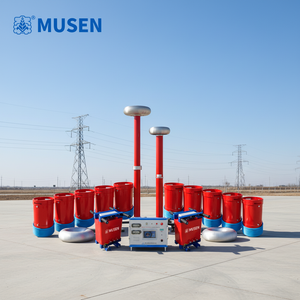

Field conditions demand equipment that is both robust and intelligent. The Series Resonance Test System provided by Musen Electric is designed with the following professional-grade features:

1. Comprehensive Protection: The system integrates multi-point safeguards against overvoltage, overcurrent, zero-start failures, and system detuning (flashover). Thresholds are fully customizable; during a flashover event, the system captures and logs the exact voltage value for post-test forensic analysis.

2. Modular Portability: Every component is engineered for weight reduction. This modularity allows a small team to transport and assemble the system at remote substations or within narrow cable trenches without heavy lifting machinery.

3. Intelligent Interface: Utilizing an advanced DSP platform, the system offers a highly intuitive user interface. This allows for rapid software upgrades and functional customization to meet specific international utility standards.

4. Real-Time Diagnostics: During the automatic frequency sweep, a large LCD monitors the resonance curve. Users can define the sweep range and direction, ensuring the resonance point is identified with surgical precision.

5. Data Integrity: The system supports high-capacity data storage and remote printing. Each test record is indexed numerically, ensuring that your compliance documentation is organized and audit-ready.

4. Authoritative Conclusion for Utility Procurement

Investing in a Series Resonance Test System is a strategic move toward preventative maintenance excellence. By reducing logistics costs and increasing testing accuracy, power utilities can significantly extend the lifecycle of their HV cables and transformers. As a dedicated partner in the global power industry, Wuhan Musen Electric Co., Ltd. ensures that every system delivered meets the highest benchmarks of safety and performance. For detailed technical consultation, visit our official portal at www.musenelectric.com.

5. Frequently Asked Questions (FAQ)

Q1: How does the system handle different cable lengths?

The system uses variable frequency and modular reactors. By connecting reactors in series or parallel, the inductance is adjusted to match the specific capacitance of varying cable lengths, ensuring resonance is always achieved.

Q2: What happens if there is a sudden power loss during the test?

The system is designed with a zero-start interlocking mechanism and hardware-level discharge protection. In the event of power loss, the system safely de-energizes without causing a voltage spike to the test object.

Q3: Can the software be customized for specific regional grid codes?

Yes. Our DSP-based architecture allows Musen Electric to provide tailored software updates that align with specific international standards (IEC, IEEE, etc.) and specific reporting requirements.

Q4: Is the automatic mode safe for sensitive equipment?

Absolutely. The automatic mode includes "smart-ramp" technology that carefully increases voltage while monitoring for pre-flashover indicators, ensuring the test object is never exposed to unnecessary stress.
