Why is the GIS Partial Discharge Test Vital for High-Voltage Grid Reliability?

  GIS Partial Discharge Test, GIS PD-Free Test System, Gas-Insulated Switchgear Test, HV AC Hipot Test, Musen Electric

 Is your substation safe? Discover why the GIS Partial Discharge Test is essential for 100kV-1200kV systems. Learn how Musen Electric’s PD-free technology prevents catastrophic failures in GIL and GIS infrastructure.

1. What Are the Hidden Risks in 100kV to 1200kV GIS Infrastructure?

In the specialized field of ultra-high voltage (UHV) power transmission, Gas-Insulated Switchgear (GIS) serves as the heart of the substation. However, internal insulation defects—often invisible to the naked eye—pose a severe threat. A precision GIS Partial Discharge Test is the only definitive method to identify these vulnerabilities before they escalate into explosive failures. For international utility providers and power engineering firms, the cost of an unplanned outage far outweighs the investment in rigorous diagnostic testing.

2. How Does a PD-Free System Ensure Accurate Insulation Diagnostics?

When testing high-capacitance equipment like GIS or GIL, the integrity of the test signal is paramount. A standard test transformer often generates its own internal noise, which can mask the faint signals of actual equipment defects. Utilizing a GIS PD-Free Test System eliminates background interference, allowing engineers to isolate and analyze discharge patterns with surgical precision. This level of accuracy is critical for meeting the strict E-E-A-T (Experience, Expertise, Authoritativeness, and Trustworthiness) standards required by global insurance and regulatory bodies.

3. Why is the 100–1,200 kV Gas-Insulated Switchgear (GIS) Test System with Partial Discharge Monitoring Necessary for Modern Grids?

As grids transition to higher voltages to improve efficiency, the margin for error shrinks. The implementation of a 100–1,200 kV Gas-Insulated Switchgear (GIS) Test System with Partial Discharge Monitoring provides a comprehensive safety net. These systems are engineered to simulate operational stress while monitoring for "silent killers" like metallic particles, protrusion-induced ionization, or spacer surface tracking. By integrating advanced monitoring directly into the AC Hipot cycle, Wuhan Musen Electric Co., Ltd. ensures that every component meets the highest dielectric standards before energization.

4. Technical Performance Data for High-Voltage GIS Testing

To maintain authoritative status in the power industry, data-driven results are essential. Modern test systems must adhere to specific technical benchmarks to ensure they do not damage the equipment under test:

• PD Sensitivity: Background noise levels must be maintained below 3pC.

• Voltage Range: Modular support for 100kV, 200kV, 300kV, 500kV, 750kV, 1000kV, and 1200kV.

• Power Efficiency: Resonant circuit design reduces the required input power by up to 90% compared to traditional transformers.

• Structural Integrity: Enclosures must be rated for SF6 gas pressure and long-distance logistics.

5. Professional Solutions: MSGTU Gas-Insulated Switchgear (GIS) Test System with Partial Discharge Monitoring

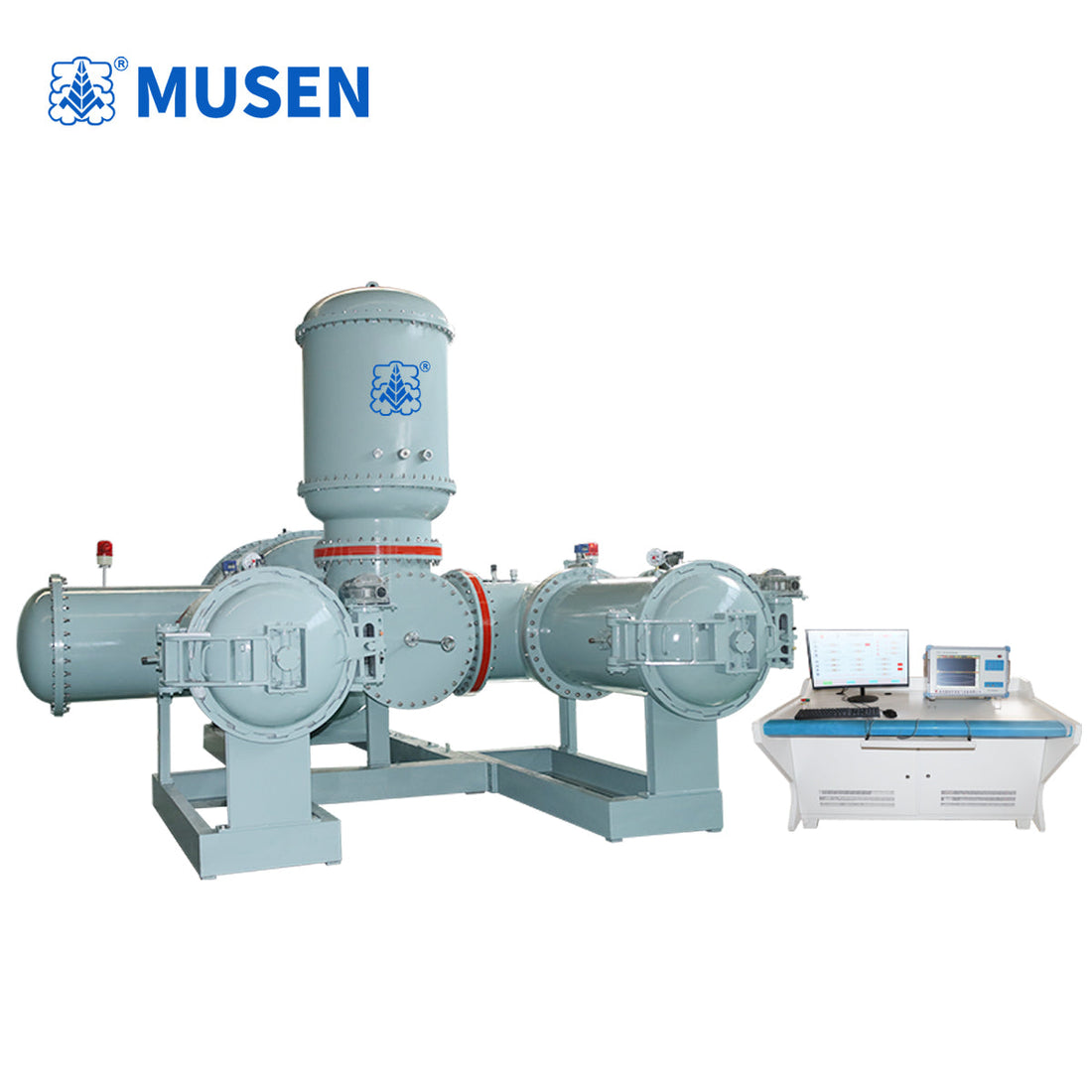

Wuhan Musen Electric Co., Ltd. provides the MSGTU series, a flagship solution designed for the most demanding global engineering environments. This system integrates the high-voltage source and the test object into a single, fully shielded space. Key technical advantages include:

• Ultimate Safety: Full metal enclosure provides a shielded environment for reliable onsite testing.

• Precision Control: Total partial discharge volume is strictly limited to 1-3pC.

• Optimized Mobility: Compact footprint and lightweight components facilitate use in tight indoor substations.

• Versatile Integration: Features a built-in high-voltage isolation switch for multi-functional testing.

• Direct Coupling: Connects directly to the GIS/GIL, reducing setup time and potential error points.

• Robust Durability: Specifically engineered to withstand the rigors of long-distance international shipping.

• Extensive Range: Rated capacities from 50kVA to 2000kVA, covering all global transmission standards.

6. Frequently Asked Questions Regarding GIS Testing

Q1: Why is a partial discharge test more effective than a simple voltage withstand test?

A voltage withstand test only proves the equipment won't fail immediately under overvoltage. A PD test detects the process of failure, identifying defects that would cause a breakdown weeks or months after commissioning.

Q2: What is the benefit of the MSGTU’s 1-3pC PD level?

Standard industrial noise is often >10pC. By lowering the system's own PD to 1-3pC, we can detect microscopic defects that other equipment would miss, ensuring 100% confidence in the GIS insulation.

Q3: Is the MSGTU system suitable for offshore wind or remote desert substations?

Yes. The MSGTU is designed with a ruggedized structure specifically for long-distance transport and features a modular, space-saving design ideal for the limited footprints of offshore platforms.

Q4: How does Musen Electric support international procurement and maintenance?

Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides full technical documentation, remote diagnostic support, and equipment calibrated to international IEC/IEEE standards, ensuring seamless integration into any global utility project.
