Is Your Equipment Safe? The Role of Non Partial Discharge Hipot Test Transformers

Non Partial Discharge Hipot Test Transformer, PD Free Test Transformer, Electrical Component Testing, MS-YDQW, Wuhan Musen Electrical

 Why is zero-noise testing critical for high-voltage assets? Discover how a Non Partial Discharge Hipot Test Transformer ensures insulation integrity for motors and cables.

1. Why Is Partial Discharge Testing Mandatory for High-Voltage Reliability?

In international power engineering, the presence of partial discharge (PD) is the leading indicator of insulation degradation. For EPC contractors and utility maintenance teams, a standard dielectric test is no longer sufficient. To ensure long-term stability in motors, generators, and gas-insulated switchgear (GIS), engineers must utilize a Non Partial Discharge Hipot Test Transformer. This specialized equipment allows for the detection of microscopic voids and manufacturing defects without the interference of background electrical noise, which is common in low-quality testing rigs.

2. How Does a PD Free Test Transformer Eliminate Background Interference?

When testing sensitive electrical components like high-voltage bushings or power transformers, the testing source itself must remain silent. A standard transformer might produce internal discharges exceeding 20pC, masking the actual condition of the test object. By contrast, a PD Free Test Transformer is engineered to maintain a system background noise of less than 5pC. This precision enables technicians to distinguish between harmless surface tracking and critical internal insulation failures, ensuring that only 100% compliant assets are energized on the grid.

3. What Are the Technical Advantages of SF6 Integrated Test Systems?

Modern overseas utility projects prioritize equipment that is both highly accurate and portable. The shift from bulky oil-immersed units to gas-insulated technology has revolutionized on-site commissioning. An integrated Non Partial Discharge Hipot Test Transformer, specifically the MS-YDQW series, utilizes SF6 gas for superior arc quenching. This design consolidates the transformer, coupling capacitor, and voltage divider into a single, metallic-enclosed unit. This structural integration not only reduces the physical footprint by nearly 40% but also shields the internal components from environmental humidity and dust, which are known to trigger false PD readings.

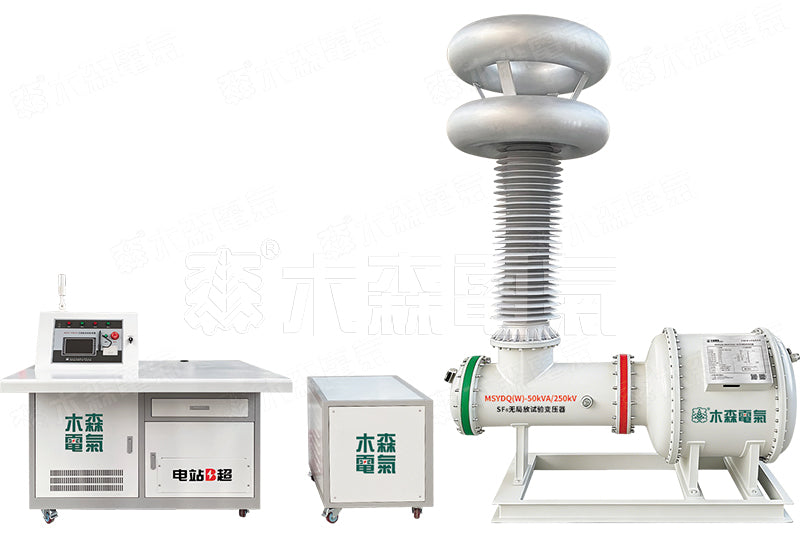

4. MS-YDQW Product Technical Profile & Performance Data

Wuhan Musen Electrical (www.musenelectric.com) provides the MS-YDQW series to meet the rigorous demands of global testing standards (IEC 60060).

• Insulation Type: SF6 Gas-insulated; non-flammable and intrinsically safe for indoor laboratory use.

• PD Performance: Internal discharge level ≤ 5pC at rated voltage; significantly superior to traditional modular setups (approx. 10pC).

• Integrated Components: Built-in current-limiting resistors, coupling capacitors, and high-precision capacitive dividers.

• Protection Logic: Advanced over-current and over-voltage protection with an automated zero-start interlock for operator safety.

• Maintenance Profile: Hermetically sealed metal tank; requires zero oil changes and only periodic gas density monitoring.

•

5. Frequently Asked Questions Regarding PD Testing Equipment

Q1: Can this equipment perform both PD and standard AC withstand tests?

Yes. It is designed for dual-purpose use: performing high-precision partial discharge analysis and standard power-frequency withstand (Hipot) testing for manufacturers and utilities.

Q2: How does the integrated design improve the accuracy of results?

By housing the capacitor and resistor within the same SF6-filled tank, stray capacitance and external electromagnetic interference (EMI) are minimized, resulting in a cleaner signal compared to traditional wire-connected components.

Q3: What maintenance is required for the SF6 insulated units?

Unlike oil-filled transformers that require acidity and moisture testing, the MS-YDQW is virtually maintenance-free. Operators only need to verify the gas pressure gauge remains within the green safety zone.

Q4: Is the equipment suitable for harsh environmental conditions?

Because the high-voltage components are fully enclosed in a grounded metal tank, the system’s PD performance is unaffected by high altitude, dust, or ambient humidity.
