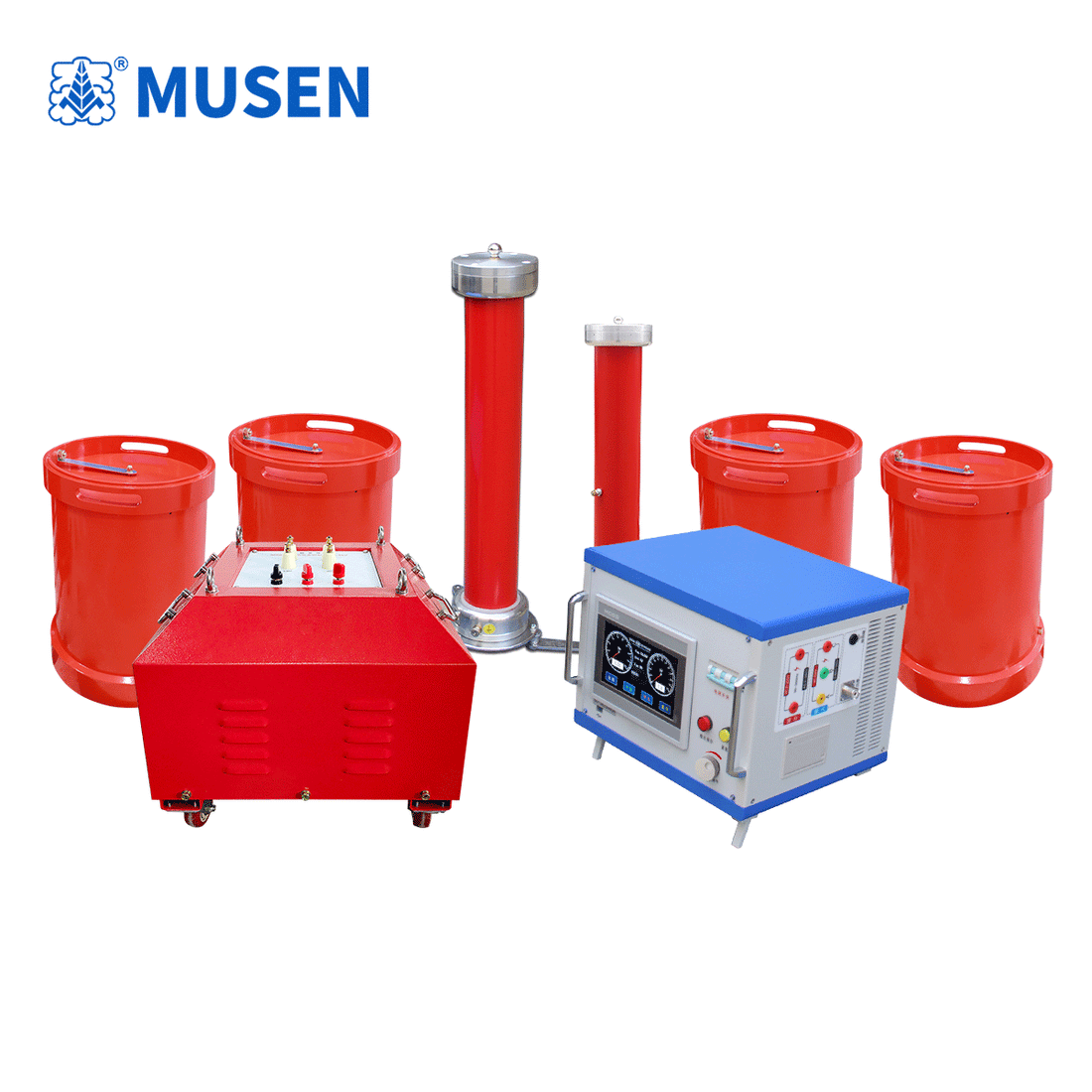

Why Choose a Variable Frequency AC Resonance Test System for High Voltage Assets?

AC Resonance Test System, Musen Electric, Series Resonance Test, 500kV Cable Test, HV Transformer Testing

Learn why global utilities trust Musen Electric's AC Resonance Test System for 6kV to 500kV power equipment. Discover the technical advantages of series resonance over traditional testing methods.

1. How Does the AC Resonance Test System Optimize High-Voltage Power Grid Reliability?

For global power utilities and electrical engineering firms, maintaining grid stability for infrastructure ranging from 6kV to 500kV is a non-negotiable priority. The AC Resonance Test System has emerged as the industry standard for verifying the insulation integrity of high-capacitance assets such as XLPE cables, GIS (Gas Insulated Switchgear), and large-scale power transformers. Unlike traditional high-potential (hipot) testing, resonance technology utilizes the principle of series inductance and load capacitance to generate high voltage with minimal input power, ensuring a non-destructive yet rigorous evaluation of the equipment.

2. Why is Series Resonance Superior for 500kV XLPE Cable and Transformer Testing?

Testing long-distance cables or large generators requires massive reactive power. A standard testing transformer would be prohibitively heavy and require a massive power source. By employing an AC Resonance Test System, the system frequency is tuned to match the natural frequency of the circuit, where XL=XC. At this point, the power source only needs to supply the active power losses of the system. This results in a pure sinusoidal wave and a dramatic reduction in equipment footprint, making it the most efficient method for field-commissioning of 500kV transmission lines and GIS installations.

3. What Technical Innovations Define Musen Electric’s Specialized Testing Solutions?

Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) has engineered its resonance sets to meet the rigorous demands of international electrical standards. Our systems are characterized by their modular design and proprietary digital control. Key performance metrics include:

• Harmonic Distortion Control: Our low-harmonic technology limits total harmonic distortion (THD) to less than 0.3%, significantly lower than the 5% international standard.

• Portability: The total weight is reduced to 1/10—1/30 of conventional equipment, allowing for rapid deployment in remote or high-altitude substations.

• Input Adaptability: Systems are designed to operate on standard 220V or 380V field power, eliminating the need for specialized high-capacity generators on-site.

4. How Does the System Ensure Safety During High-Voltage Breakdown Events?

Safety is the cornerstone of Musen Electric’s design philosophy. The AC Resonance Test System is inherently safer than traditional methods. If a test object experiences a breakdown or flashover, the resonance condition is immediately destroyed. The circuit detunes instantly, causing the voltage to drop to zero without the massive energy surge or "kickback" common in capacitive DC testing or bulky AC transformers. The integrated software provides multi-layer protection, including over-voltage, over-current, and zero-start interlocks, protecting both the operator and the valuable asset under test.

5. Why Choose Musen Electric (www.musenelectric.com) for Your Testing Infrastructure?

Wuhan Musen Electric Co., Ltd. provides comprehensive testing solutions that balance efficiency with precision. Our equipment offers several distinct advantages for procurement managers and site engineers:

• Operational Simplicity: Intuitive interfaces allow for automated resonance searching and testing, reducing human error.

• Equivalency: The test results provide high equivalency to actual operating conditions, offering more realistic performance data for transformers and generators.

• Modular Scalability: Multiple reactors can be configured in series or parallel to handle different voltage levels and capacitance loads, maximizing the return on investment for testing companies.

• Longevity: By reducing testing losses and avoiding harmonic stress, our systems extend the operational life of the primary equipment being tested.

6. Frequently Asked Questions Regarding Resonance Testing

Q: Can this system be used for both 6kV and 500kV applications?

A: Yes. Through the modular configuration of the reactors, the same system can be adjusted to meet the specific voltage and current requirements of low-voltage distribution cables or ultra-high voltage transmission assets.

Q: What is the main benefit of the 0.3% harmonic level?

A: Low harmonic levels prevent the "over-testing" or unintended stress on the insulation of the main transformer or generator, ensuring that the test itself does not cause latent damage to the equipment.

Q: How does the system handle site power limitations?

A: Because the system only requires power to cover the resistive losses of the resonant circuit, the demand on the local grid or generator is minimal, often allowing for full 500kV tests to be powered by a standard industrial outlet.

Q: Does Musen Electric provide technical support for international projects?

A: Absolutely. Musen Electric (www.musenelectric.com) offers global technical support and equipment calibration services to ensure your testing projects meet local regulatory requirements.
