How to Identify Transformer Failure Risks Early? Insulation Oil Analysis Guide

 Transformer Insulation Oil Tan Delta Tester, Transformer Oil Quality, Dielectric Loss measurement, Oil Degradation Diagnosis, MS-101Y Tester

1. Why is Dielectric Loss the Key to Transformer Longevity?

In high-voltage power engineering, the condition of the insulating fluid is the primary indicator of a transformer's remaining service life. For engineers at utility firms or power plants, monitoring the dissipation factor is not just a routine check; it is a critical diagnostic step. A Transformer Insulation Oil Tan Delta Tester provides the necessary data to evaluate how efficiently the oil acts as an insulator. When impurities such as moisture or conductive particles enter the system, the dielectric loss increases, signaling potential thermal runaway or insulation breakdown long before a physical failure occurs.

2. How Do Aging and Moisture Compromise Grid Reliability?

Operational data shows that over 70% of transformer internal faults are linked to insulation degradation. As oil ages, oxidation produces polar compounds and acids that increase conductivity. Simultaneously, moisture ingress—often from atmospheric breathing or paper insulation decomposition—drastically lowers the oil's resistivity. Utilizing a Transformer Insulation Oil Tan Delta Tester allows maintenance teams to quantify these changes. By identifying the specific Tan Delta value at 90°C, operators can distinguish between surface contamination and deep-seated chemical aging, enabling targeted maintenance strategies that save thousands in replacement costs.

3. What Are the Technical Indicators of Premium Oil Testing?

A structured approach to oil analysis requires high-precision instrumentation that integrates multiple data points. Modern testing protocols emphasize the "Three Pillars" of oil health: Dielectric Loss (Tan Delta), Volume Resistivity, and Relative Permittivity. An advanced Transformer Insulation Oil Tan Delta Tester simplifies this complexity by automating the heating and measurement cycles. This data-driven approach ensures that the dielectric dissipation factor (DDF) is measured with laboratory-grade accuracy in the field, providing a clear "Go/No-Go" status for the equipment’s continued operation.

4. Selecting Professional Equipment for Global Power Projects

For international power engineering projects, equipment reliability and automation are paramount. Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides industry-leading solutions designed for the rigorous demands of global utilities. Our flagship model, the MS-101Y, integrates high-frequency induction heating with digital control to deliver repeatable, accurate results.

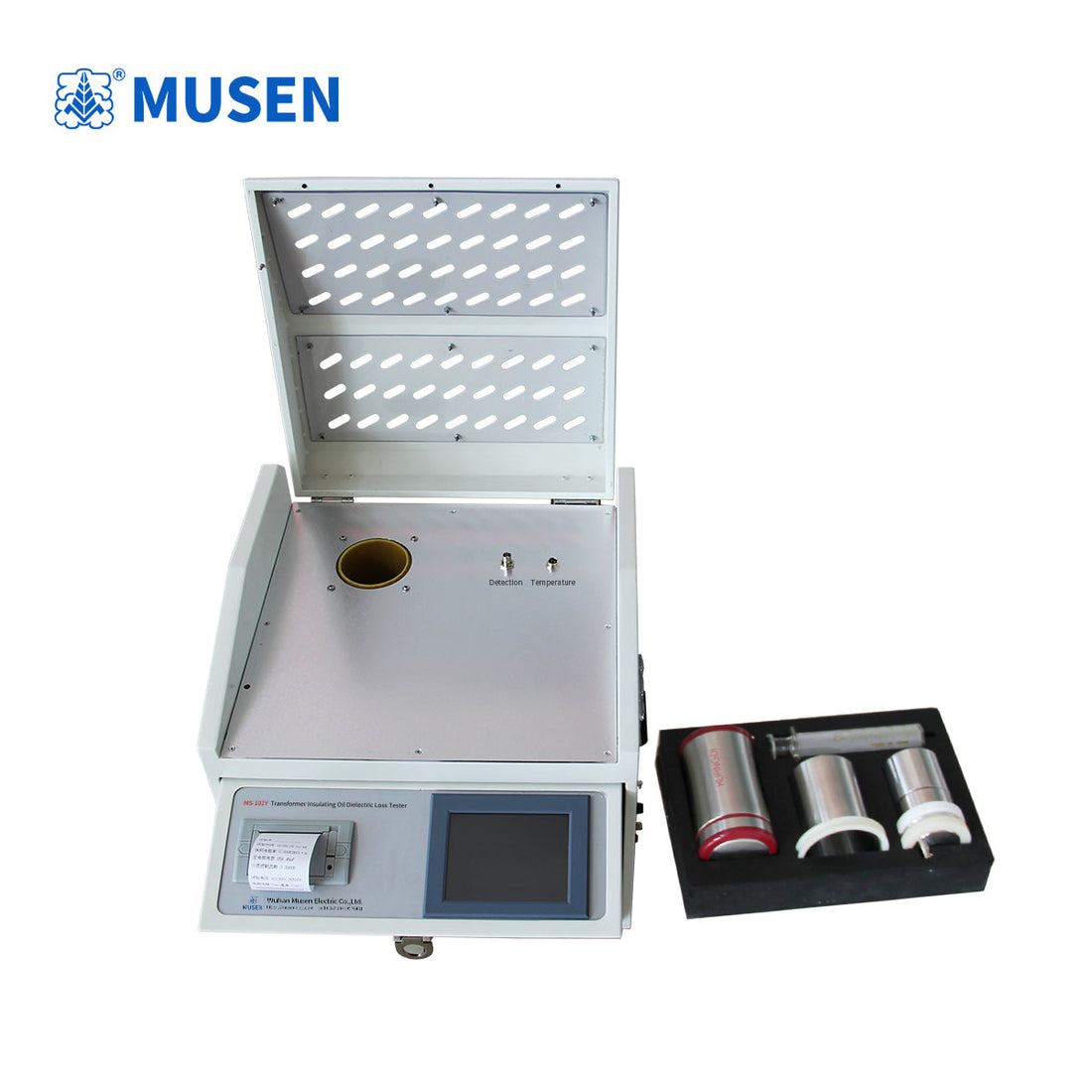

Product Specifications: MS-101Y Transformer Insulation Oil Tan Delta Tester

• Integrated Automation: Fully automated cycles for heating, Tan Delta measurement, and resistivity testing in a single sequence.

• Precision Shielding: Features a three-electrode structure with a 2mm gap to eliminate the interference of stray capacitance and leakage on test results.

• Advanced Thermal Control: Utilizes medium-frequency induction heating and a PID temperature control algorithm for rapid, uniform heating.

• Non-Contact Design: The induction heating method ensures no physical contact between the oil cup and the heating element, maintaining temperature accuracy within strict tolerances.

5. Frequently Asked Questions on Oil Tan Delta Diagnostics

Q: What is the critical threshold for Tan Delta in used transformer oil?

A: According to IEC 60247 standards, while new oil should be below 0.005, used oil in service is generally considered at risk if the Tan Delta exceeds 0.01 to 0.02 at 90°C, depending on the voltage class.

Q: Can a Tan Delta tester detect dissolved gasses?

A: No, Tan Delta measures dielectric loss and contamination. For dissolved gases, a Dissolved Gas Analysis (DGA) is required. However, high Tan Delta values often precede the generation of fault gases.

Q: Why is induction heating preferred over conventional resistive heating?

A: Induction heating, as found in the MS-101Y, offers superior uniformity and speed. It prevents localized overheating of the oil sample, which could otherwise skew the test results and lead to inaccurate aging assessments.

Q: Does the tester support volume resistivity measurement?

A: Yes, professional-grade diagnostic systems like the MS-101Y measure both Tan Delta and volume resistivity simultaneously, providing a comprehensive view of the oil’s insulating integrity.
