Why is Transformer Bushing tanδ Measurement Critical for Grid Reliability?

tanδ Test Kit, Tan Delta Tester, Dielectric Loss Test Kit, Transformer Insulation Testing, Bushing Maintenance, Wuhan Musen Electric

Discover why measuring the dielectric loss factor and capacitance of transformer bushings is essential. Learn how a professional tanδ Test Kit prevents power outages through precise insulation diagnostics.

1. Why Does Dielectric Loss Testing Matter for Transformer Bushings?

In high-voltage power engineering, the dielectric loss factor, or tanδ Test Kit measurement, is the most sensitive indicator of insulation health. For overseas power utilities managing aging infrastructure, transformer bushings represent a common point of failure. These components operate under extreme electrical stress. Over time, moisture ingress and chemical aging increase the dielectric loss. By utilizing a high-precision tanδ Test Kit, engineers can quantify the energy dissipated as heat within the insulation. A stable tanδ value ensures the bushing remains within its thermal design limits, while an increasing trend warns of potential catastrophic failure.

2. How to Detect Insulation Aging Using Capacitance Trends?

Capacitance measurement is the structural counterpart to tan delta testing. While the loss factor indicates the quality of the material, capacitance values reflect the physical integrity of the capacitive layers within a bushing. A deviation of more than 5% from the initial nameplate value often indicates a partial breakdown of internal insulation layers or the entry of water. Professional operators at Wuhan Musen Electric recommend simultaneous monitoring of both parameters. Modern tanδ Test Kit solutions provide a comprehensive diagnostic profile, allowing for data-driven decisions on whether to maintain, repair, or replace critical substation assets.

3. Can Advanced Anti-Interference Technology Ensure Accurate Field Data?

One of the greatest challenges in overseas substation maintenance is the presence of heavy electromagnetic interference (EMI). Traditional bridge methods often yield unstable readings in energized environments. To solve this, the latest generation of tanδ Test Kit hardware utilizes frequency conversion technology. By shifting the test frequency away from the power frequency (e.g., to 45Hz or 55Hz), the equipment effectively "filters" out the background noise of the grid. This ensures that the dielectric loss measurement is a true reflection of the equipment’s condition, providing the accuracy required for International Electrotechnical Commission (IEC) compliance.

4. Integrated Technical Features for High-Voltage Diagnostic Success

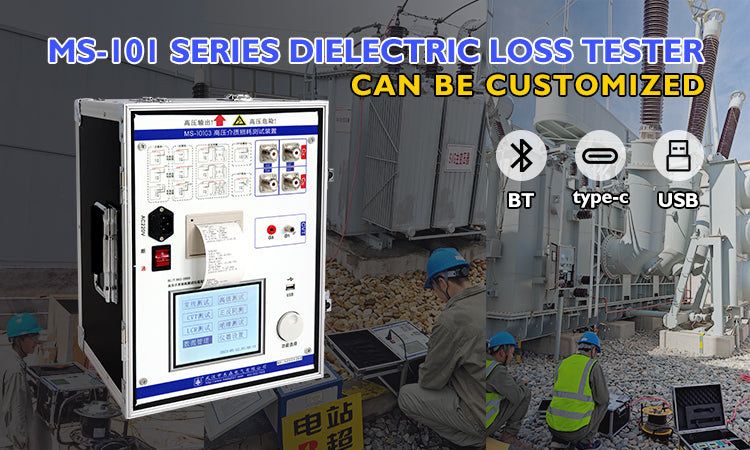

Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides specialized testing solutions designed for the rigorous requirements of global power projects. Our equipment integrates multiple diagnostic functions into a single portable unit:

• CVT Self-Excitation Measurement: Simultaneously measure capacitance and Tgδ for C1 and C2 with a single connection.

• High-Voltage Shielding: Perform 10kV reverse-connection dielectric loss measurement even when the CVT bus is grounded, eliminating the need to disconnect primary leads.

• Versatile Testing Range: Supports external voltage application and Cn measurement for specialized laboratory or field setups.

• Transformation Ratio Analysis: Built-in functionality to measure the ratio of 35-500kV CVT devices.

• Efficiency-Focused Design: Features four-channel synchronous testing and integrated insulation resistance testing (including PI and DAR).

• Automated LCR Function: Automatically measures inductance, capacitance, and resistance for auxiliary component verification.

5. Frequently Asked Questions (FAQ)

Q1: What are the standard limits for tanδ in transformer bushings? A: According to international standards, new oil-impregnated paper bushings typically show tanδ values below 0.5% (at 20°C). Values exceeding 0.7% or a 30% increase from previous tests generally necessitate closer monitoring or replacement.

Q2: How does temperature affect tan delta results? A: Dielectric loss is highly temperature-dependent. For accurate analysis, measurements must be corrected to a reference temperature (usually 20°C) using standard correction factors to ensure comparability across different seasons.

Q3: Can the kit test both grounded and ungrounded specimens? A: Yes. Professional kits support both "UST" (Ungrounded Specimen Test) and "GST" (Grounded Specimen Test) modes, allowing for flexible testing of bushings, windings, and surge arresters.

Q4: Is the equipment suitable for harsh outdoor environments? A: Our devices are designed for field use, featuring ruggedized enclosures, high-contrast displays for sunlight readability, and robust internal protection against surges and short circuits.
