Why is a VLF Test Set Essential for High-Capacitance Power Cable Testing?

  VLF Test Set, VLF Hipot Tester, Cable Insulation Testing, VLF Test Set for Cable Insulation, 0.1Hz VLF Hipot Tester

 Discover why engineers rely on the VLF Test Set for testing high-capacitance assets like XLPE cables and generators. Learn how Wuhan Musen Electric optimizes field efficiency.

1. Why is VLF Technology Required for High-Capacitance Equipment?

In global power engineering, testing high-capacitance assets—such as long-distance XLPE cables, large-scale generators, and motors—presents a significant logistical challenge. Standard power-frequency (50/60Hz) testing requires massive reactive power, leading to the use of heavy, impractical equipment. The VLF Test Set addresses this by operating at 0.1Hz, effectively reducing the required power and equipment size by a factor of 500. This shift allows field teams to perform high-voltage withstand tests with portable units without compromising the structural integrity of the insulation.

2. How Does a VLF Hipot Tester Improve Insulation Reliability?

The primary objective of using a VLF Test Set for Cable Insulation is to initiate a controlled discharge at the site of pre-existing defects, such as water trees or void inclusions, without creating the harmful space-charge effects associated with DC testing. By applying a sinusoidal AC waveform at very low frequencies, the tester ensures that the electrical stress distribution is nearly identical to operating conditions. This method is internationally recognized for its ability to "pass" healthy cables while safely "failing" compromised ones during maintenance windows, preventing costly unplanned outages.

3. Optimizing Field Performance with Advanced VLF Parameters

Precision in insulation diagnostics requires sophisticated control systems. Modern units, such as those engineered by Wuhan Musen Electric Co., Ltd., utilize high and low-voltage closed-loop negative feedback circuits to eliminate the "capacitance rise effect." This ensures the output voltage remains stable regardless of the load. Furthermore, the ability to switch between 0.1Hz, 0.05Hz, and 0.02Hz allows engineers to extend the testing range for exceptionally long cable runs, making the VLF Test Set a versatile tool for diverse utility environments.

4. Technical Specifications and MSVLF Series Performance Data

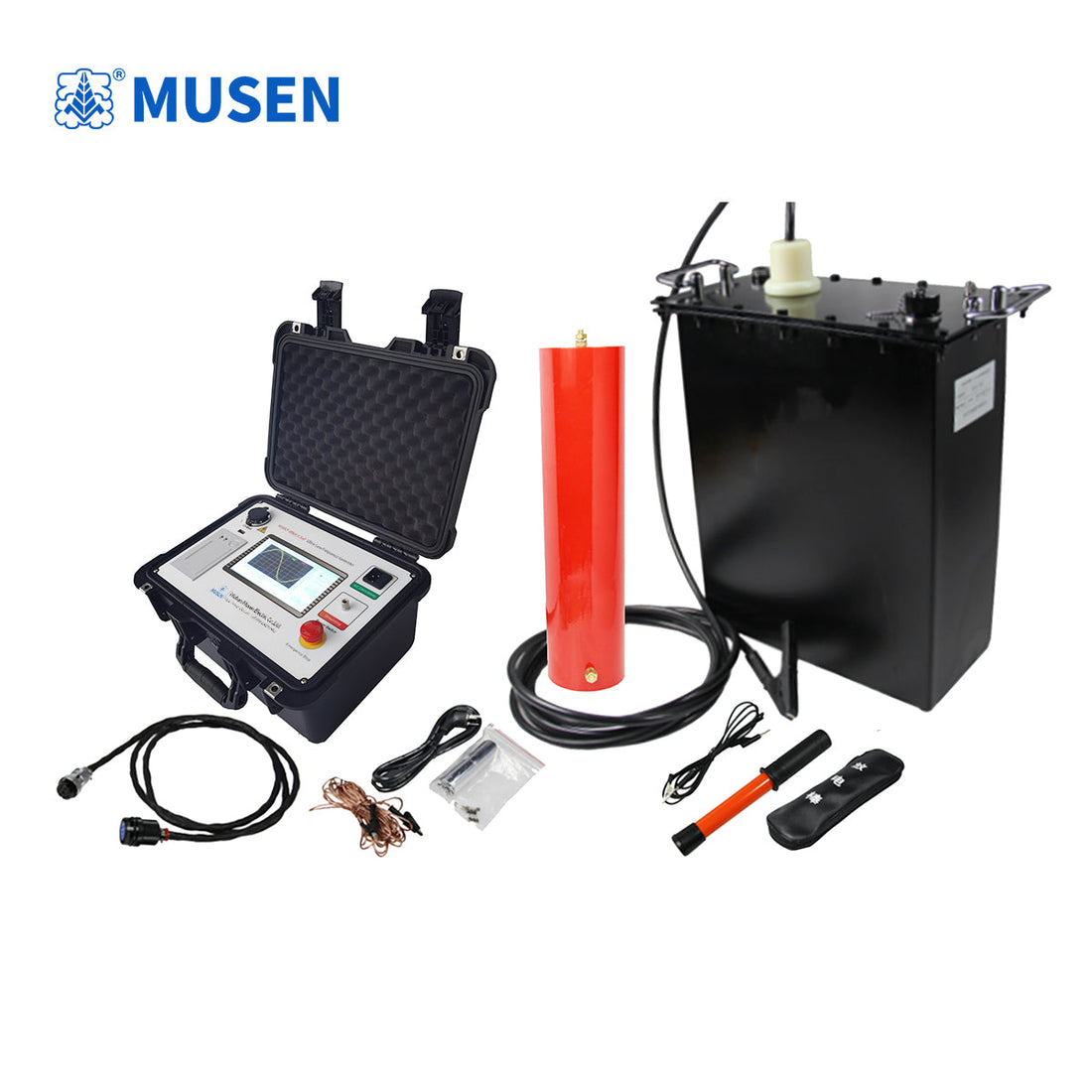

Wuhan Musen Electric provides a comprehensive range of solutions (www.musenelectric.com) tailored for professional power engineering. The MSVLF series is designed with the following professional-grade features:

• Core Technology: Integrated digital frequency conversion and microcomputer-controlled automation for voltage boosting, measurement, and protection.

• Safety & Speed: Features multi-layered protection (over-voltage and dual-side over-current) with a rapid response time of ≤10ms.

• Signal Integrity: Optoelectronic control links the controller and high-voltage generator, ensuring complete galvanic isolation and operator safety.

• Operational Range: Available configurations include MSVLF-30kV, 40kV, 50kV, 60kV, 80kV, and 90kV with a 1.1uF load capacity to meet various international standards.

5. Frequently Asked Questions Regarding VLF Testing

Q: Can VLF testing damage a healthy power cable?

A: No. Unlike DC testing, which can leave residual trapped charges in XLPE insulation, VLF uses an AC waveform that does not degrade healthy insulation but successfully triggers breakdowns in existing weak spots.

Q: What is the maximum cable length a 0.1Hz VLF unit can test?

A: This depends on the capacitance of the cable and the uF rating of the equipment. By reducing the frequency to 0.02Hz, the testable length can be significantly increased for the same power output.

Q: Is the VLF test result equivalent to a 50/60Hz factory test?

A: Yes, research and international standards (IEEE 400.2) confirm that 0.1Hz AC testing is a scientifically sound and equivalent method for evaluating the dielectric strength of high-capacitance power apparatus.
