Is Acid Value the Best Indicator of Transformer Oil Life?
Is Acid Value the Best Indicator of Transformer Oil Life? | Musen Electric
Insulating Oil Acid Value Tester, transformer maintenance, acidity testing, TAN Analyzer, oil degradation, Musen Electric
1. Why Does Acid Accumulation Predict Transformer Failure?
In global power engineering, acidity serves as the primary chemical marker for aging. As insulating oil oxidizes under thermal stress, it generates polar contaminants and organic acids. If left unmonitored, these acids attack the solid cellulose insulation—the heart of the transformer—causing irreversible structural weakening. Utilizing an Insulating Oil Acid Value Tester allows engineers to quantify this risk, moving from reactive repairs to a data-driven predictive maintenance model that safeguards high-value grid assets.
2. How Does Automated Titration Enhance Data Accuracy?
Precision is non-negotiable when dealing with parts-per-million chemical concentrations. Unlike manual field tests that vary by operator, a professional Total Acid Number (TAN) Analyzer standardizes the neutralization process. By automating reagent delivery and endpoint detection, laboratories at utility companies can achieve repeatable results that meet strict international compliance standards (such as ASTM D974 or IEC 62021), ensuring that maintenance decisions are based on cold, hard facts rather than estimates.
3. What Are the Economic Benefits of Regular Acidity Testing?
The cost of a catastrophic transformer failure far outweighs the investment in diagnostic tools. High acidity levels lead to sludge formation, which restricts oil flow and reduces cooling efficiency. By integrating the Insulating Oil Acid Value Tester into annual inspection cycles, facility managers can identify when oil requires "reclamation" (removing acids) versus a full "replacement." This distinction can save utility operators tens of thousands of dollars in oil procurement and disposal costs while extending the operational life of the transformer by up to 15 years.
4. Can Digital Monitoring Prevent Corrosive Sulfur Risks?
Modern electrical environments are increasingly sensitive to chemical imbalances. Acids within the oil do not just degrade paper; they can react with metal surfaces to form conductive metallic soaps. Monitoring with a Transformer Oil Acid Value Tester provides a comprehensive view of the oil’s chemical stability. For the technical teams at Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), providing equipment that delivers rapid, 2-minute test cycles means that site engineers can perform high-volume testing without delaying critical maintenance windows.

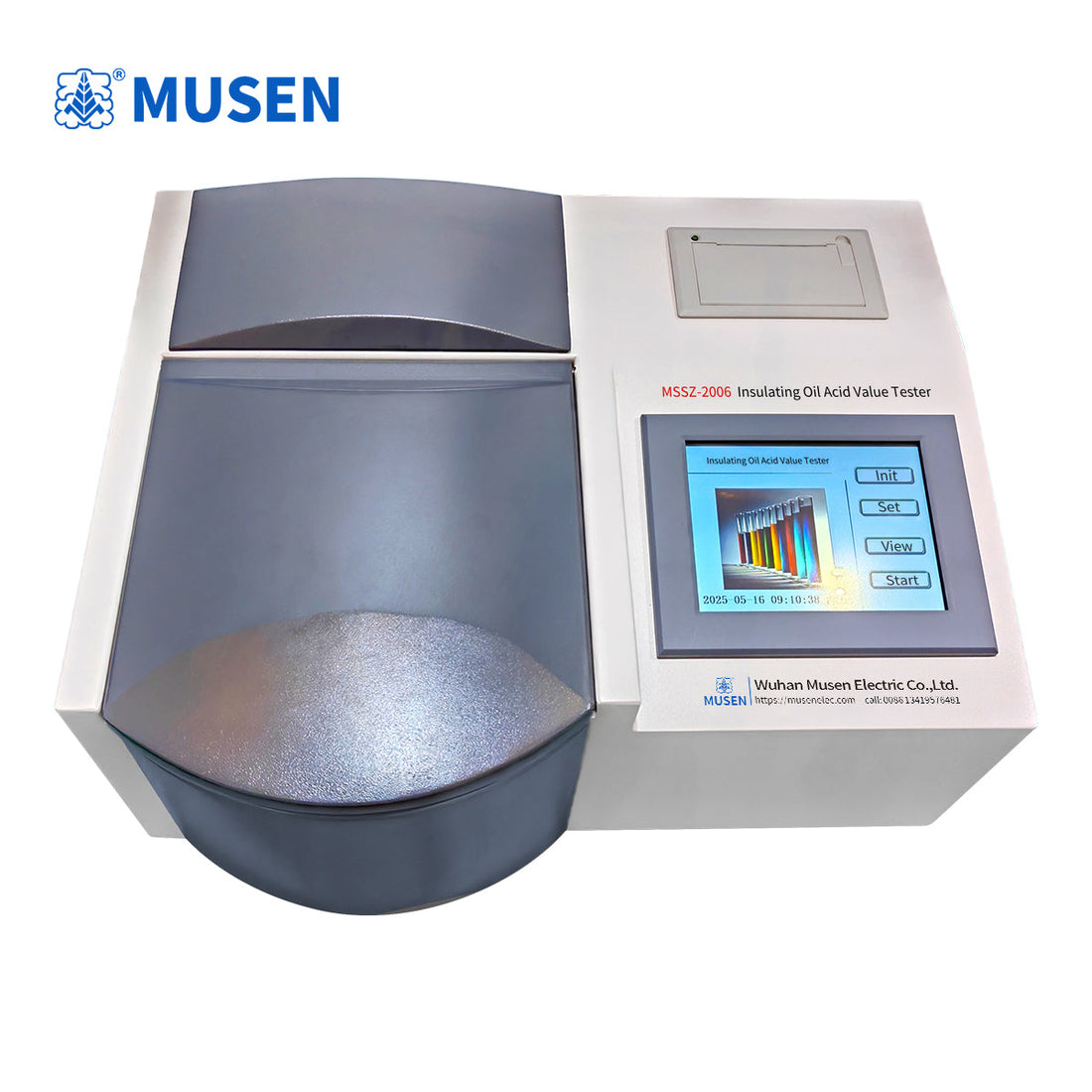

5. Technical Specifications: MSSZ-2006 Insulating Oil Acid Value Tester
The MSSZ-2006 series represents the pinnacle of automated diagnostic technology for power systems, specifically engineered for the rigorous demands of power plants and substations.
- ✔ Integrated Design: Available in 3-cup or 6-cup configurations, suitable for high-volume testing of transformer and turbine oils.
- ✔ Full Automation: Handles extractant addition, neutralization titration, endpoint determination, and result printing automatically.
- ✔ Speed & Efficiency: No manual preparation of working solutions required; average test time is only 2 minutes per sample.
- ✔ Precision Control: Features automatic standard acid calibration to eliminate systemic errors and ensure laboratory-grade accuracy.
- ✔ Environmental Stability: Equipped with high-capacity CO2 and moisture purification systems to maintain reagent stability.
6. FAQ: Understanding Your Testing Results
Q: Why is 0.1 mg KOH/g considered a critical threshold?
A: Most international guidelines suggest that once oil reaches this level of acidity, the rate of paper insulation degradation doubles. It is the "tipping point" for preventative action.
Q: Does the Insulating Oil Acid Value Tester require a laboratory environment?
A: While highly precise, modern units are designed for ruggedness and can be used in mobile test vans or on-site laboratories with minimal environmental controls.
Q: How does CO2 affect my acidity test results?
A: Atmospheric carbon dioxide can dissolve into reagents, creating carbonic acid and skewing results. The MSSZ-2006 utilizes a specialized purification system to block this interference, ensuring the Insulating Oil Acid Value Tester provides true readings.
