How to Effectively Evaluate Power Equipment Safety Using a Portable Insulation Resistance Tester?

 Portable insulation resistance tester, high voltage insulation tester, insulation tester for cables, digital insulation resistance tester, electrical insulation maintenance

  Is your electrical infrastructure at risk? Discover how a Portable insulation resistance tester identifies insulation aging in motors and cables to prevent costly downtime and safety hazards.

1. Why is Insulation Resistance Testing Mandatory for Global Power Projects?

In the field of international power engineering, insulation integrity is the primary line of defense against catastrophic failure. A Portable insulation resistance tester is not merely a diagnostic tool; it is a critical safety instrument used to verify that the dielectric strength of motors, generators, and transformers meets international standards. Environmental stressors such as extreme humidity in tropical regions or thermal cycling in industrial hubs accelerate insulation aging. By measuring the leakage current under high voltage stress, engineers can quantify the degradation of electrical barriers, allowing for data-driven maintenance decisions rather than reactive repairs.

2. How Does a Digital Insulation Resistance Tester Diagnose Motor Health?

Motors are the workhorses of industrial infrastructure, yet their windings are prone to moisture ingress and carbon build-up. Utilizing a high-performance Portable insulation resistance tester allows technicians to perform critical ratio tests, specifically the Polarization Index (PI) and Dielectric Absorption Ratio (DAR). These values provide a deeper look into the insulation’s condition than a spot reading. For instance, a PI value below 2.0 often indicates contamination or moisture, signaling a need for immediate cleaning or drying before the equipment is energized, thus preventing a direct short-to-ground event.

3. What Challenges Exist in High-Voltage Cable Insulation Testing?

Testing long-distance cable runs presents unique challenges, primarily due to the high capacitance inherent in the cables. An effective Portable insulation resistance tester must provide sufficient short-circuit current to charge the cable quickly and yield an accurate reading. Furthermore, safety is paramount; testing cables can store significant energy. Modern professional units must feature automatic discharge mechanisms to ensure that once the test is complete, the residual voltage is safely bled off, protecting both the operator and the sensitive digital components of the testing equipment.

4. Technical Specifications for Professional Power Engineering Applications

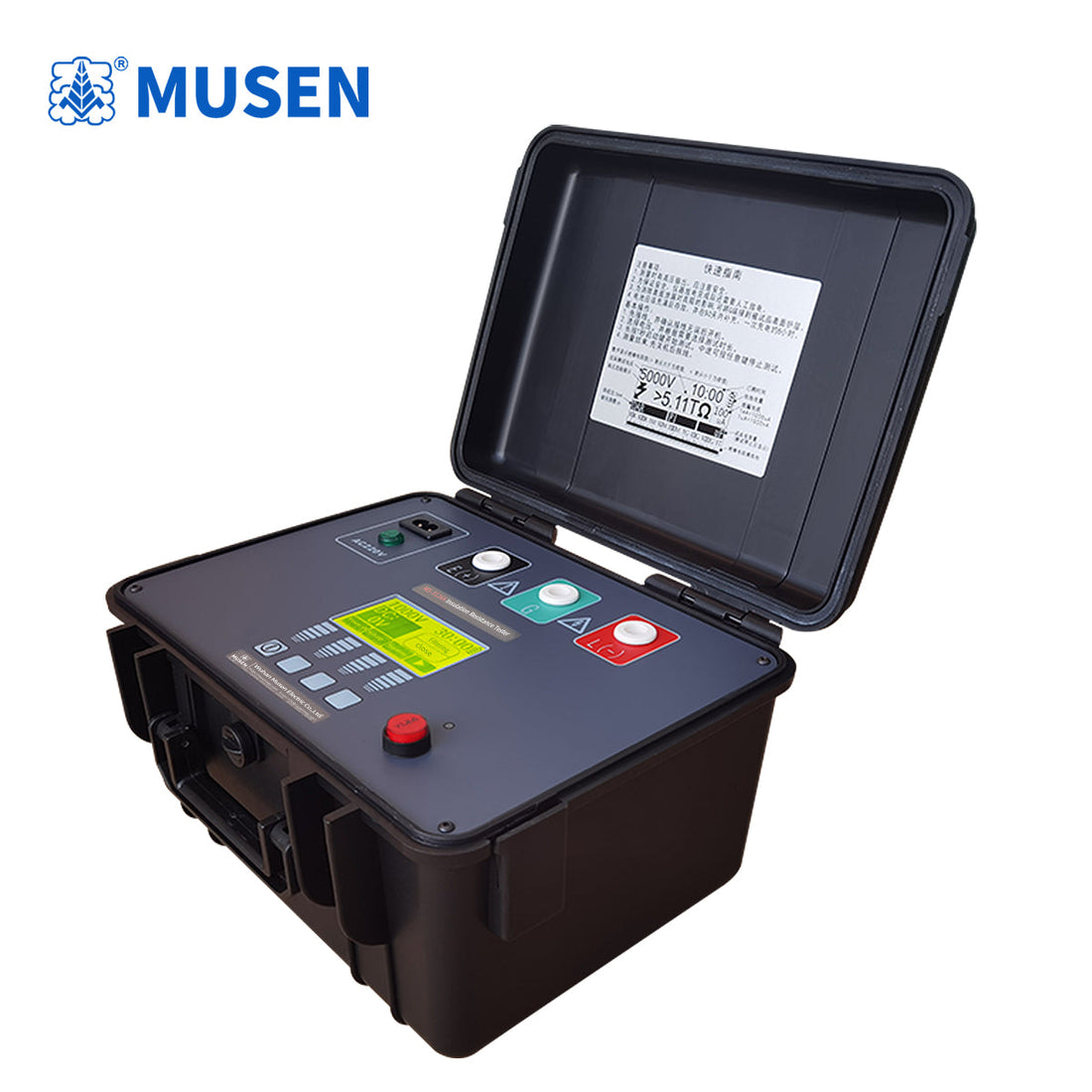

For utility-grade maintenance and large-scale power projects, Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides high-precision solutions designed for rugged field use. The following technical capabilities are essential for modern electrical testing:

• Multi-Range Output: 5 selectable voltage ranges: 500V, 1000V, 2500V, 5000V, and 10000V, with a measurement ceiling of 10TΩ.

• High Current Drive: Adjustable short-circuit current up to 10mA, ideal for high-capacitance specimens.

• Automated Metrics: Simultaneous display of PI, DAR, leakage current, and capacitance.

• Interference Immunity: Advanced circuitry maintains accuracy even in environments with up to 2mA of interference current.

• Safety Discharge: Automatic fast discharge for capacitive loads, eliminating the need for manual discharge rods in cable testing.

• Hybrid Power System: Lithium-ion battery provides 4 hours of continuous high-voltage operation, with the ability to charge during use and automatically switch to battery power during AC outages.

5. Frequently Asked Questions Regarding Insulation Maintenance

Q: Can a standard multimeter replace a professional insulation tester?

A: No. A multimeter uses low voltage (9V-15V) which cannot stress the insulation enough to reveal latent defects. Professional testing requires high-voltage stimulation (up to 10kV) to simulate operational stress.

Q: What is the significance of a 10mA short-circuit current?

A: Higher short-circuit current allows the tester to charge large capacitive loads, such as long cables or large transformer windings, much faster, leading to more stable and efficient measurements.

: How does environmental interference affect my test results?

A: In high-voltage substations, induced currents can skew readings. Using a tester with superior anti-interference capabilities (up to 2mA) ensures that the resistance values remain accurate despite the surrounding electromagnetic field.

Q: Is it safe to charge the instrument while performing a test?

A: Yes, our equipment is designed to support simultaneous charging and operation, ensuring that long-duration tests are not interrupted by battery depletion.
