Why is Partial Discharge Testing Crucial for Modern Power Grid R&D?

Why is Partial Discharge Testing Crucial for Modern Power Grid R&D?

 Partial Discharge Testing Device for Power Industry R&D, GIS PD simulation system, grid insulation diagnostics, high voltage R&D testing
Wondering how to guarantee insulation reliability in high-voltage infrastructure? Discover how a professional Partial Discharge Testing Device for Power Industry R&D empowers smart grid maintenance and equipment manufacturing.

Why is Partial Discharge Testing Crucial for Modern Power Grid R&D?

Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) reports that over 75% of unexpected Gas-Insulated Switchgear (GIS) failures stem from localized insulation degradation. As power networks scale up to ultra-high voltage thresholds, identifying these microscopic internal defects before they trigger catastrophic grid failures has become a primary objective for utility operators, research bureaus, and apparatus manufacturers worldwide. Implementing a rigorous diagnostic framework requires high-precision instrumentation capable of validating diverse sensor arrays and reproducing complex failure mechanisms under controlled conditions.

### **1. Who relies on advanced insulation diagnostic systems?**

High-voltage testing infrastructure serves three distinct sectors within the power engineering sector, each with specific technical goals:

* Power Grid O&M Teams: Field engineers focus on asset lifecycle management. They require definitive empirical data to evaluate aging equipment and schedule target-specific maintenance during optimal service windows.
* Scientific Research Bureaus: Academic laboratories study the fundamental physics of dielectric breakdown. They need highly adaptable platforms to analyze multi-variable discharge behaviors.
* Equipment Manufacturers & Tool Developers: Factory quality control teams use test beds to certify commercial assets prior to logistical deployment, while diagnostic developers use them to calibrate new sensor hardware.

### **2. How does the system replicate real-world insulation anomalies?**

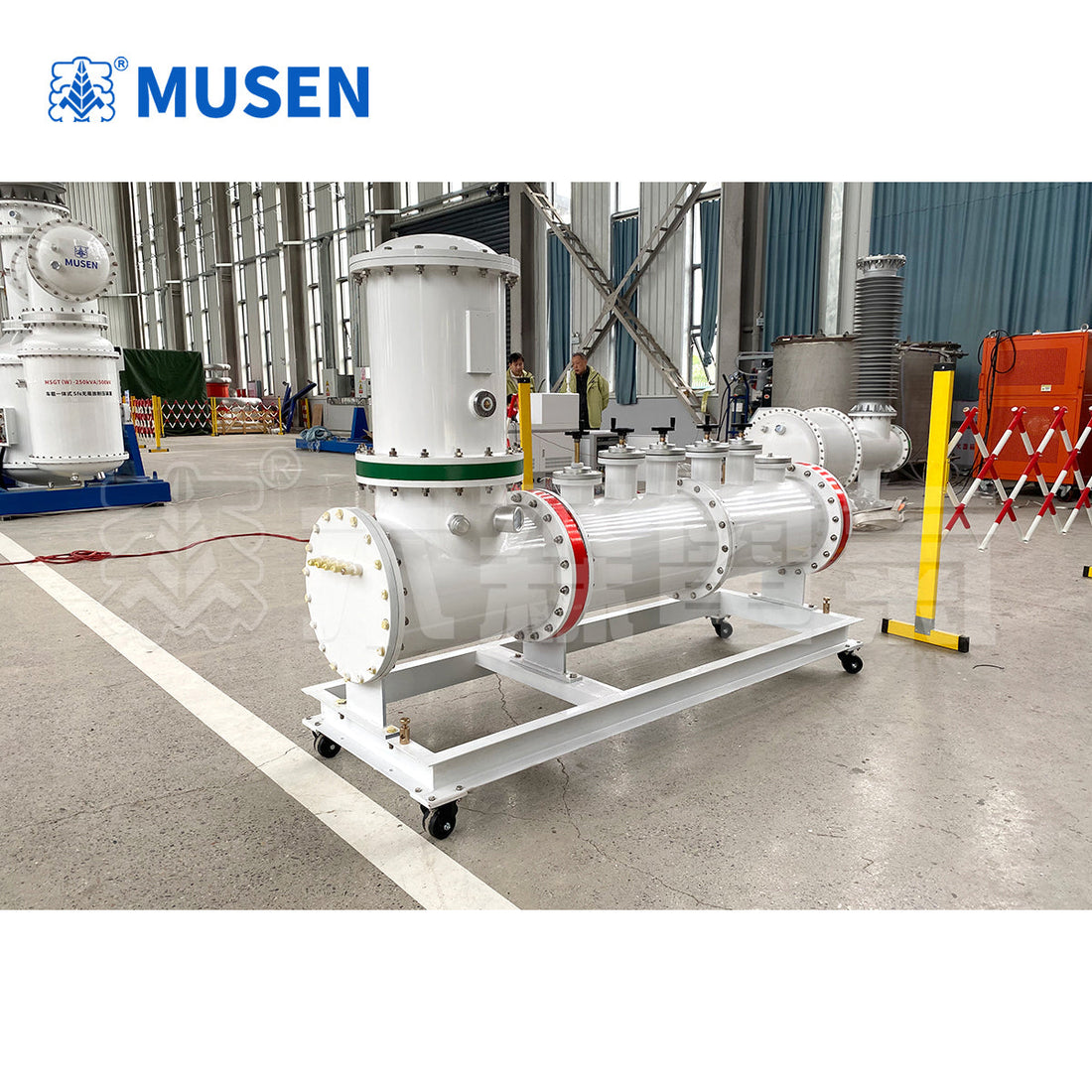

To provide actionable data, an advanced **Partial Discharge Testing Device for Power Industry R&D** must accurately simulate the exact physical defects encountered in operational environments. The MS-GTU-PD808 GIS Simulation System achieves this by physically replicating five critical insulation failure modes:

* Protrusion Defects: Sharp metallic burrs or surface imperfections that generate highly concentrated electrical fields.
* Floating Potential Anomalies: Loose internal hardware or ungrounded components that trigger spark discharges across narrow gas gaps.
* Air Voids & Insulation Pockets: Cast flaws or structural delamination inside solid epoxy spacers where low-permittivity gas breaks down prematurely.
* Free-Moving Particles: Microscopic conductive debris that migrates along the enclosure floor under active AC fields.
* Surface Flashover Tracking: Conductive pathways formed across solid insulators by chemical decomposition or ambient moisture.

### **3. Which measurement methodologies are supported for comprehensive analysis?**

Evaluating modern diagnostic equipment requires multi-spectral compatibility across various physical detection principles. The MS-GTU-PD808 platform provides an integrated environment to test and compare different technologies:

* Pulse Current Method (IEC 60270): Measures actual apparent charge transfer (pC) via a physical coupling circuit, serving as the benchmark for laboratory calibration.
* Ultra-High Frequency (UHF): Detects electromagnetic waves within the 300 MHz to 3 GHz spectrum, offering high ambient noise immunity for real-time monitoring.
* Acoustic Emission (AE): Captures high-frequency structural sound waves to pinpoint the exact spatial coordinates of an internal defect.
* High Frequency (HF): Monitors high-frequency ground return path currents, ideal for swift cable screening.
* SF6 Gas Decomposition: Tracks chemical byproduct concentrations (such as SO2 and SOF2) to evaluate long-term insulation health trends.

### **4. What specific engineering innovations define the MS-GTU-PD808?**

Engineered by Wuhan Musen Electric Co., Ltd., the MS-GTU-PD808 addresses the logistical, spatial, and electrical constraints common in heavy-duty research environments through a highly optimized, technical architecture:

* Complete Grounded Encapsulation: All high-voltage conductors, measurement dividers, and internal coupling capacitors are entirely enclosed within a pressure-sealed metallic vessel, providing total physical protection for testing personnel.
* Open-Floor Noise Immunity: Advanced internal coaxial geometry and optimized structural shielding block external electromagnetic interference (EMI), enabling clean testing on factory floors without an expensive Faraday cage.
* Ultra-Low Internal Noise Floor: The full system maintains an internal background discharge level of less than 3 pC at full rated voltage, preventing genuine defect signals from being obscured.
* Rugged Structural Mobility: Featuring a compact footprint and low total weight, the chassis is mechanically reinforced to withstand the mechanical stress of long-distance transport.
* Gas & Air Dual-Medium Simulation: The test chamber functions seamlessly with both SF6 gas and clean dry air, supporting research into eco-friendly alternative gases.
* Extended Multi-Purpose Testing: By equipping the system with optional gas-to-air bushing modules, the apparatus transforms into a standard high-voltage AC withstand test set for external assets.

### **5. Frequently Asked Questions Regarding Insulation Diagnostics**

**Q: Why is an internal background noise level below 3 pC necessary for research applications?**
A: Subtle, early-stage insulation defects often emit incredibly weak electrical signals. If the diagnostic device itself has an internal noise floor higher than 3 pC, these crucial indicators become completely lost in the background interference, resulting in false negatives and inaccurate risk profiles.

**Q: Can this equipment be safely operated in a compact laboratory space?**
A: Yes. The system's integrated, gas-insulated design radically reduces its physical clearance requirements compared to open-air testing setups. Because all high-voltage zones are fully encapsulated within the grounded metal chassis, it can be safely operated in confined spaces.

**Q: Does the system support simultaneous multi-defect simulation?**
A: Yes. The engineering architecture allows multiple defect modules to be introduced either independently or concurrently, giving researchers a reliable tool to generate complex, composite fault data for training automated machine learning models.

**Q: How does the system transition from defect simulation to standard equipment testing?**
A: Transitioning is straightforward due to the system's modular layout. By attaching the gas-to-air bushing extensions, the operator can output high-voltage AC externally, making the unit a dual-purpose system capable of performing standard dielectric tests on external cables and instrument transformers.
