### 1. How Does Baseline System Noise Distort High-Voltage Insulation Metrics?

In utility asset management, validating the insulation integrity of 110kV and 220kV grid assets requires precision-engineered diagnostics. During field commissions, separating the micro-ampere ionic discharge of a test sample from the background noise of the high-voltage source remains a significant operational challenge. When an asset manager deploys a traditional testing array, legacy open-air connections act as antennas for ambient electromagnetic interference.

Engineering data shows that classic split-component testing layouts routinely generate system background noise approaching 10 pC. This elevated noise floor effectively obscures the faint, early-stage dielectric anomalies of Gas-Insulated Switchgear (GIS) and instrument transformers. To isolate actual insulation defects, international standards dictate the use of a certified **Partial Discharge-Free Test Transformer** to ensure that diagnostic data reflects only the true health of the grid asset under test.

### 2. What Specific Insulation Anomalies Can Modern Diagnostic Infrastructure Replicate?

To guarantee the reliability of commercial testing instrumentation, power engineers must simulate real-world physical insulation defects within a controlled laboratory or onsite enclosure. Specialized gas-insulated testing systems are engineered to replicate five critical dielectric failure modes:

* Floating Potential Displacements: Replicates ungrounded internal metallic components or loose shield fixtures vibrating under mechanical stress.
* Protruding Metallic Sharpness: Simulates structural micro-burrs on conductors, causing extreme local electric field distortions.
* Internal Structural Cavities: Simulates microscopic air bubbles trapped inside epoxy resin basin insulators during manufacturing.
* Free-Moving Conductive Particles: Simulates microscopic metallic debris resting at the bottom of a gas compartment, which hovers and migrates under AC voltage stress.
* Surface Tracking Contamination: Replicates dielectric tracking or chemical degradation across solid insulating barriers, distorting the local voltage distribution.

### 3. How Does a Integrated Gas-Insulated Core Layout Optimize Onsite Assembly?

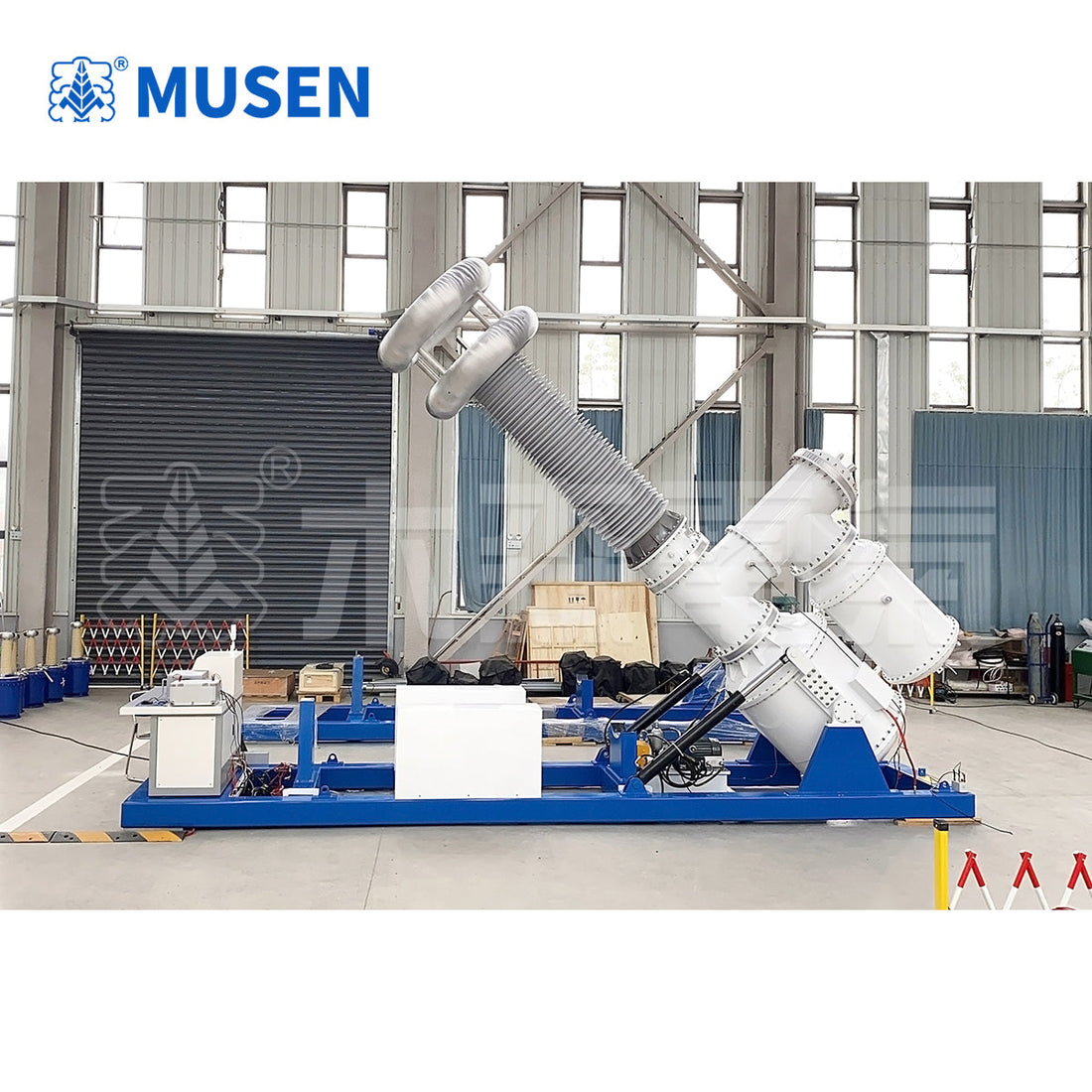

Modern field-testing logistics require modular equipment designs that minimize spatial footprints and labor overhead. Advanced test arrays house the step-up transformer core, high-voltage measurement voltage divider, integrated coupling capacitor, and high-impedance current-limiting reactor inside a single shared pressure vessel. By eliminating external high-voltage busbars, this streamlined design restricts total system background interference to less than 5 pC.

Wuhan Musen Electrical Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) engineers these systems with an integrated hydraulic lifter. This structural design allows operators to move the heavy gas tank from a horizontal transit position to a vertical operating layout via a single-button control panel, eliminating the need for heavy crane rentals at remote substations.

### 4. What Operational Benefits Do SF6 Gas Systems Deliver Over Conventional Oil Units?

Transitioning from mineral oil to high-purity Sulfur Hexafluoride (SF6) gas insulation delivers clear operational advantages for grid testing crews. SF6 provides superior dielectric strength and rapid arc-quenching capabilities, allowing for a lightweight, compact physical enclosure.

Furthermore, gas insulation ensures a clean, oil-free environment, completely removing the risks of flammability or environmental contamination. Maintenance protocols are simplified, requiring only periodic checks of gas pressure and density indicators. For enhanced security, automated protective loops monitor overcurrent and overvoltage levels. If a test sample breaks down, the primary circuit instantly trips and triggers an automatic return-to-zero safety sequence.

### 5. Frequently Asked Questions Regarding Low-Noise High-Voltage Diagnostics

Q1: Why is a system baseline noise limit of less than 5 pC critical for 220kV asset validation?
A1: Early-stage insulation defects in heavy power assets emit low-amplitude high-frequency signals. If the high-voltage source exhibits a noise floor above 5 pC, these critical pre-failure indicators are hidden. Maintaining a system baseline below 5 pC provides the necessary sensitivity to detect early defects before they turn into full insulation breakdowns.

Q2: How does the integrated layout protect sensitive monitoring instruments when a test sample fails?
A2: When a test sample suffers a dielectric flashover, a severe voltage spike propagates through the circuit. The integrated design features an internal current-limiting reactor paired with high-speed digital overvoltage protection. This configuration dampens the fault current surge in microseconds, safely grounding the energy before it reaches the control room or analytical software.

Q3: What specific maintenance routine does a gas-insulated **Partial Discharge-Free Test Transformer** require during field service?
A3: Unlike oil-immersed test units that require regular oil filtering, dissolved gas analysis, and moisture testing, a sealed gas-insulated system is virtually maintenance-free. Field teams only need to check the integrated temperature-compensated gas density monitor before operation to verify that internal pressure levels match factory specifications.
