### 1. What Is the Critical Threshold for Insulating Oil in High-Voltage Transformers?

High-voltage electrical grid reliability depends entirely on the dielectric integrity of insulating fluids. In sub-station power transformers and mutual inductors, the mineral oil serves a dual purpose: high-efficiency electrical insulation and thermal dissipation. Over time, continuous operational stress, thermal cycling, and chemical oxidation introduce dissolved moisture and particulate matter into the fluid.

When these micro-contaminants align under an intense electrical field, they form a conductive bridge that triggers a catastrophic sparkover. Engineers must regularly deploy a specialized **Oil BDVTester** to determine the precise kilovolt threshold where the fluid fails. Monitoring these degradation metrics allows utility operators to execute predictive maintenance long before localized partial discharges escalate into permanent phase-to-ground short circuits.

### 2. How Do International Standards Govern Dielectric Strength Testing?

To eliminate random operational variance and ensure legally defensible data fleet-wide, industrial maintenance testing must adhere strictly to global regulatory frameworks, primarily IEC 60156, ASTM D1816, and ASTM D877. These specifications dictate the exact structural geometry of the testing electrodes (spherical, flat-plate, or VDE mushroom-faced profiles) and the precise physical gap distance, which is typically set at 1.0 mm, 2.0 mm, or 2.5 mm.

Manually adjusting these parameters introduces massive human calculation errors. Utilizing an automated **Oil BDVTester** eliminates calibration variance by managing standardized fluid dynamics. The internal system coordinates continuous electromagnetic stir cycles to achieve uniform particle distribution, followed by a software-controlled static rest period that lets harmful micro-bubbles safely escape the sample before any high-voltage potential is applied.

### 3. Why Use a Three-Cup Integrated System for Substation Fleet Diagnostics?

Conventional field testing methods present logistical bottlenecks for maintenance teams. Technicians often waste valuable processing hours manually cleaning, rinsing, and running individual breakdown sequences sequentially on a single vessel. Wuhan Musen Electrical Co., Ltd. resolves this industrial operational bottleneck with advanced, field-ready engineering architecture that prioritizes parallel testing efficiency.

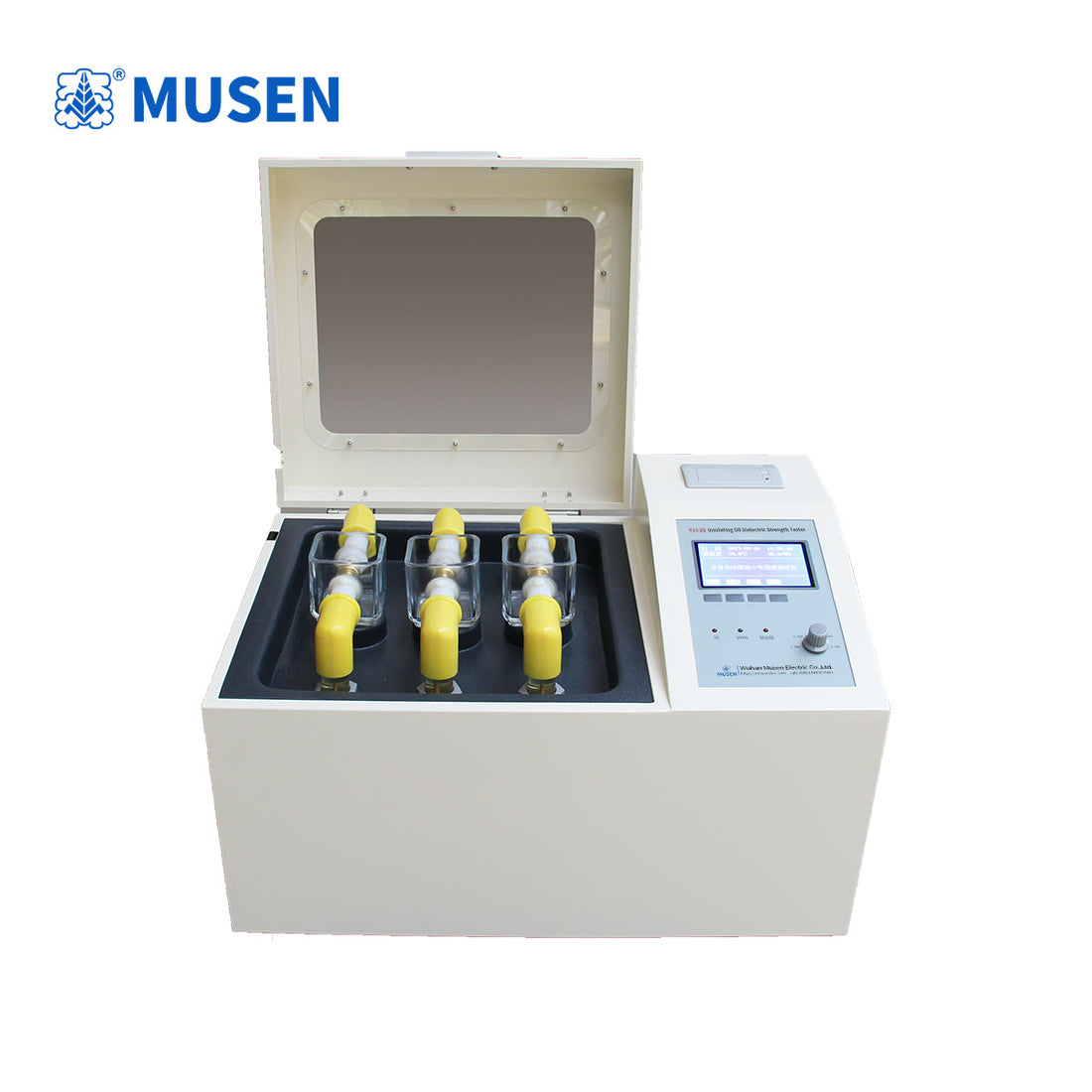

Our next-generation equipment features a specialized three-cup integrated design that allows users to test multiple distinct fluid batches consecutively without risk of cross-contamination or the need for physical cup swaps. Driven by a synchronized dual-core CPU and PLC processing engine, the automated system handles voltage ramping, microsecond spark detection, magnetic stirring, static countdowns, and standard deviation calculations entirely on its own. Technical asset managers receive immediate data turnarounds to decide whether a transformer can be safely re-energized or if it requires immediate oil filtration.

### 4. What Technical Framework Is Required for EHV and UHV Grid Maintenance?

Evaluating modern ultra-clean silicone oils and synthetic esters used in Extra-High Voltage (EHV) and Ultra-High Voltage (UHV) systems requires exceptional voltage regulation and diagnostic headroom. A professional-grade **Oil BDVTester** engineered by Musen Electric delivers a robust output generation range of 0 to 80kV (fully adjustable up to 100kV for custom asset diagnostic profiles).

The hardware platform limits voltage distortion to under 2% by employing specialized active wave-shaping circuitry. This eliminates incoming harmonic noise, voltage notches, and frequency shifts common at remote field sites or generator-backed substations. By delivering a pure, clean sinusoidal curve directly to the oil sample, the unit prevents artificial low readings caused by localized harmonic voltage peaks. To guarantee zero-harm workplace safety, the physical testing chamber integrates hardware-level over-voltage and over-current trip loops, mechanical safety interlocks, and continuous grounding monitoring that immediately cuts the high-voltage supply within microseconds of an anomaly.

### 5. Frequently Asked Questions Regarding Dielectric Strength Degradation

**Q1: How often should substation transformer oil undergo breakdown voltage testing?**
For standard distribution assets, testing is mandated annually. However, for critical transmission assets, generator step-up units, or transformers operating under continuous high-thermal loads, testing cycles should be increased to semi-annual or quarterly intervals to track fast-moving degradation trends.

**Q2: What primary contaminants cause a sudden drop in oil breakdown voltage values?**
Free and dissolved moisture ingress is the leading cause of sudden dielectric failure. Additionally, microscopic carbon particles from previous arcing or cellulose fiber debris from degrading solid paper insulation will rapidly lower the oil's breakdown threshold when exposed to high electrical stress fields.

**Q3: How does active wave-shaping protect the validity of field test data?**
Industrial field power sources often suffer from severe harmonic distortion that creates unpredictable voltage spikes. If a testing instrument uses unconditioned power, these hidden spikes trigger premature sample breakdown. Active wave shaping stabilizes incoming power into a pure sine wave, ensuring highly accurate, repeatable results that match certified laboratory findings.
