YJJ-3SInsulation oil dielectric strength BDV tester with three cups 80kV 100kV

Insulating Oil Dielectric Strength BDV Tester

The insulating oil dielectric strength tester (BDV tester) is a specialized device used to measure the breakdown voltage of liquid insulating media such as transformer oil.

Its core function is to directly and quickly assess the electrical insulation strength of insulating oil and determine whether its insulation performance has deteriorated due to high water content, excessive impurities, or aging.

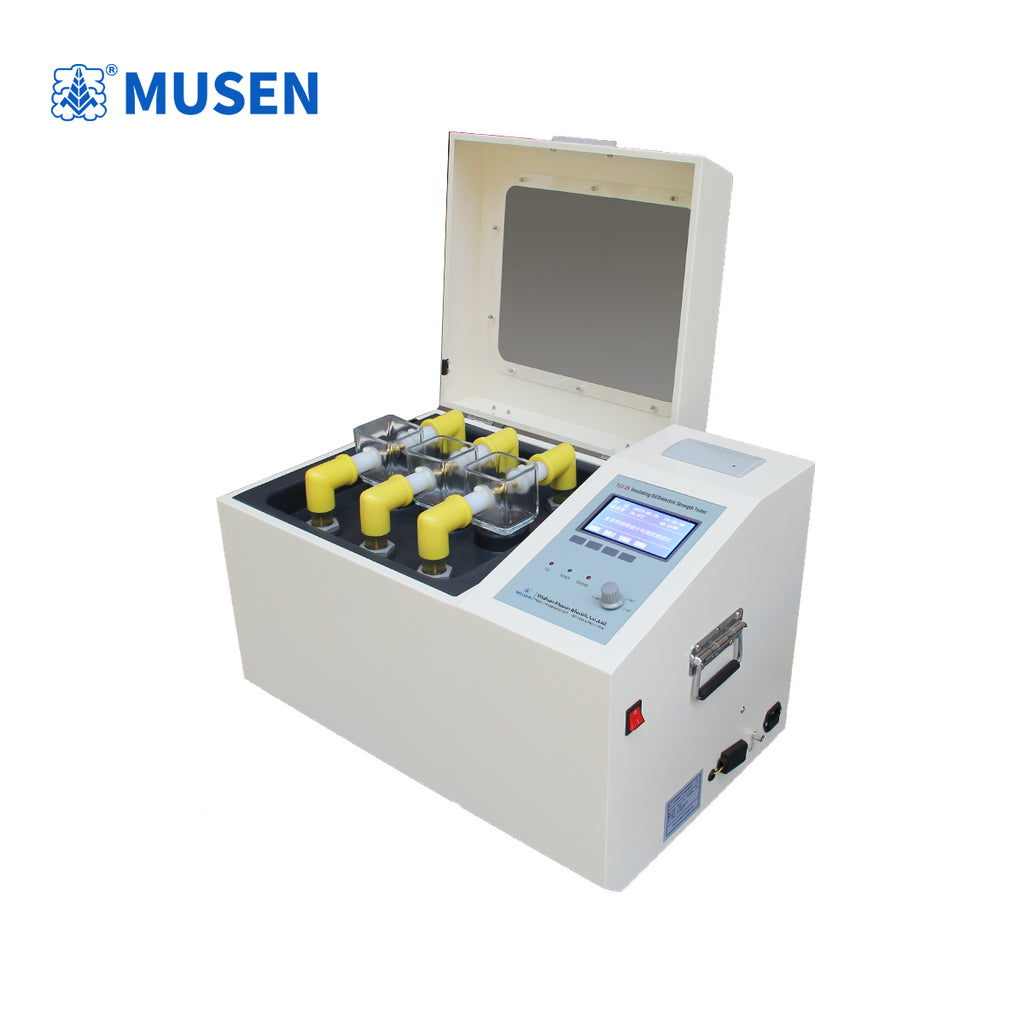

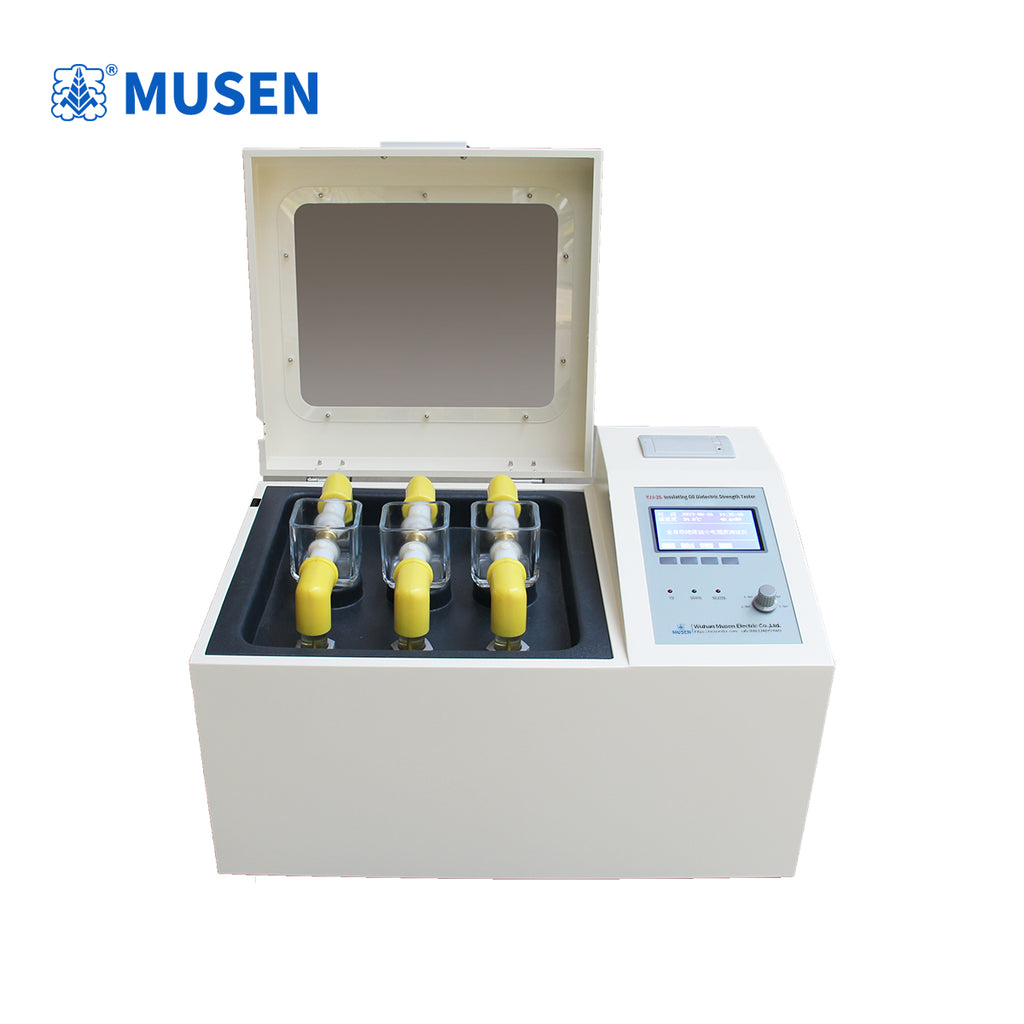

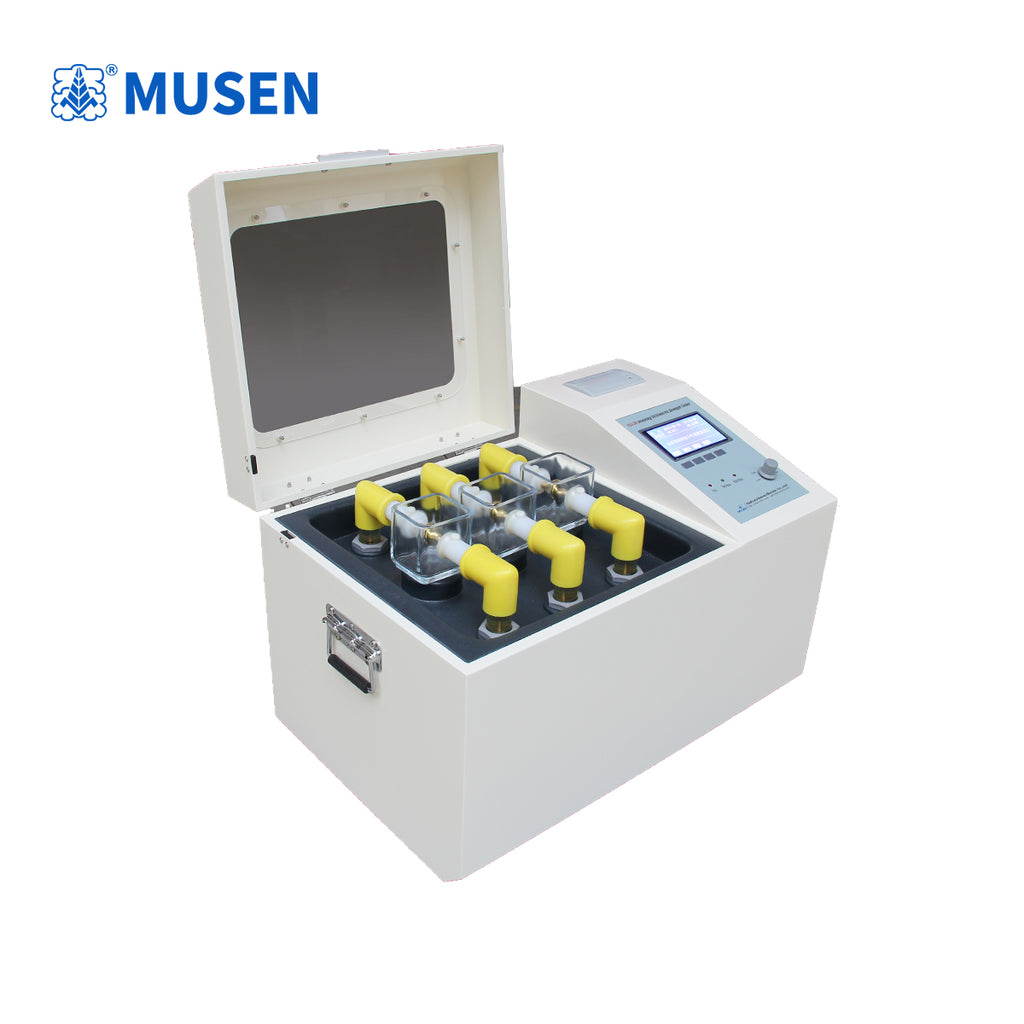

1. The instrument features a three-cup integrated design;
2. 5.4-inch LCD display with convenient Chinese menu and human-machine interface; includes temperature, humidity measurement, and clock display functions;
3. Simple operation: automatically completes voltage boosting, holding, stirring, settling, calculation, data storage, and print output;
4. Power-off storage function: automatically saves test results;
5. Over-voltage, over-current, limit, and grounding alarm functions to ensure the safety of operators;
6. Unique waveform setting function to eliminate harmonic interference to accurate measurement;
7. Adopts dual CPU and PLC control to ensure stable and reliable instrument operation;
8. Equipped with 232 interface and Bluetooth function for convenient data transfer to a computer.

1. Output voltage: 0-80kV (0-100KV adjustable)
2. Voltage distortion rate: <2%
3. Voltage rise rate: 2.0-3.5 kV/s (Δ = 0.5 kV/s)
4. Transformer capacity: 1.5 kVA
5. Measurement accuracy: ±(2%+2 digits)
6. Power supply voltage: AC 220 V ±10%
7. Power frequency: 50 Hz ±2%
8. Power: 200 W
9. Dimensions (W×H×D): 410×390×375 (mm) Net weight: 29 kg
