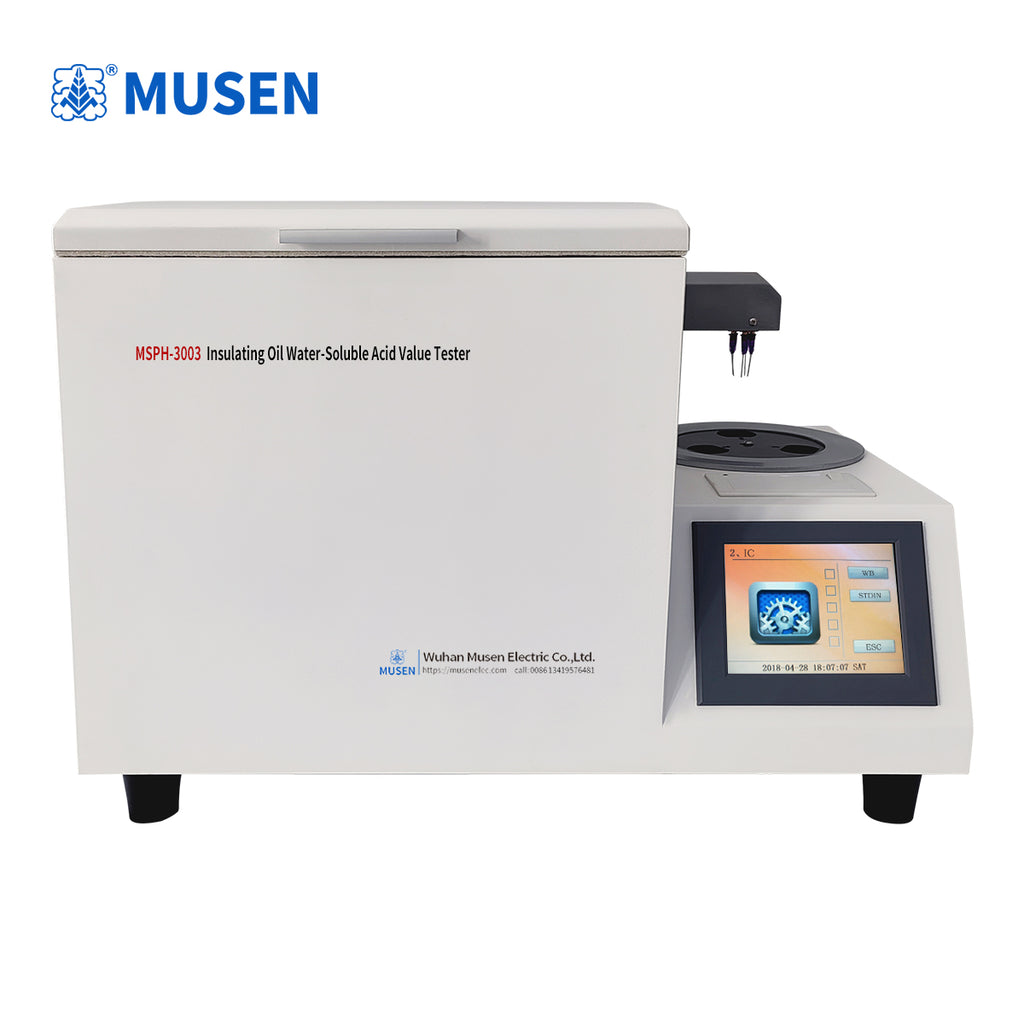

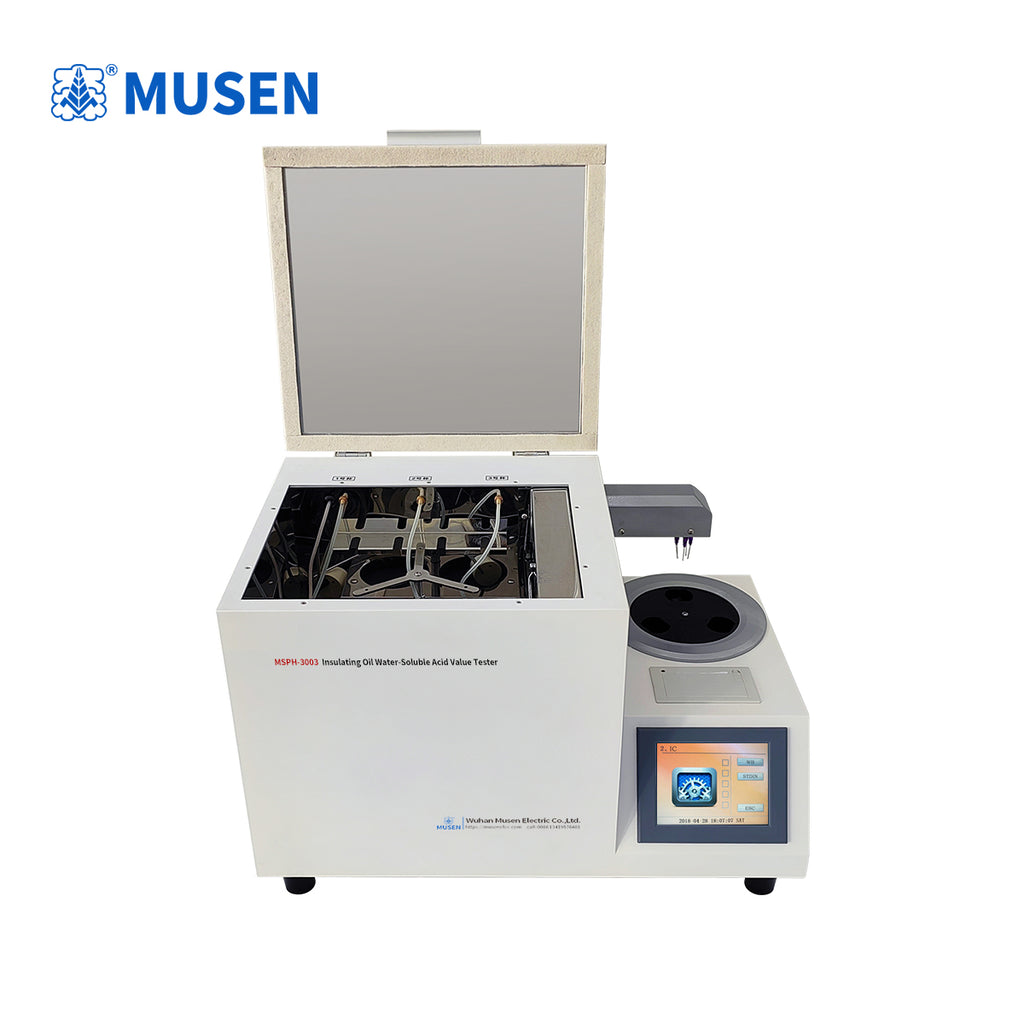

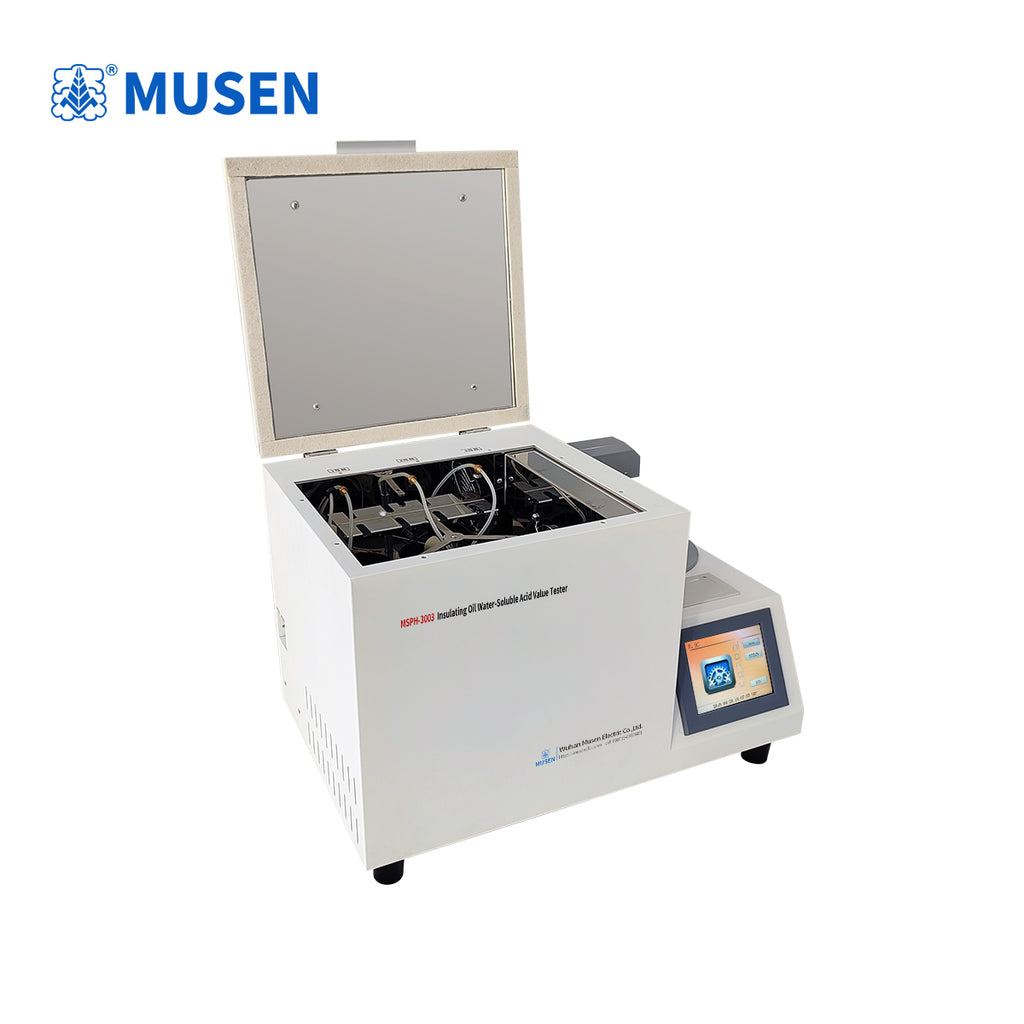

MSPH-3003Insulation oil-water solubility acid value tester

Insulating Oil Water-Soluble Acid Value Tester: This instrument is a specialized device used to detect the water-soluble acid content in insulating oil of power equipment such as transformers and circuit breakers.

Its core function is to assess the aging degree and oil quality of the insulating oil, and to determine whether it is causing acidic corrosion to the internal components of the equipment.

1. The instrument adopts a three-cup integrated design, resulting in a short measurement cycle and high working efficiency;
2. Large-screen color touch LCD display, simple operation and convenient human-machine interaction;
3. Simple operation, automatically completing heating, constant temperature control, oscillation, sampling, testing, cleaning, and printing;
4.  Features power-off storage function, automatically saving test results, and can store 100 sets of data;
5. The program includes direct testing and standard testing options, providing flexibility and convenience;
6. The program includes a cleaning function, allowing for easy selection of pipeline cleaning;
7.  Features high measurement accuracy, fast speed, and stable and reliable measurement data.

1. Measurement range: 3.6-7.0 PH
2. Measurement error: ≤±0.1 PH
3. Constant temperature accuracy: ±2℃
4. Resolution: 0.1 PH
5. Power supply voltage: AC 220 V ±10%
6. Power frequency: 50 Hz ±2%
7. Power: ≤ 35W
8. Operating temperature: 10-40℃
9. Operating humidity: <85% RH
10. Dimensions (W×H×D): 590mm*350mm*390mm  Net weight: - 23kg
