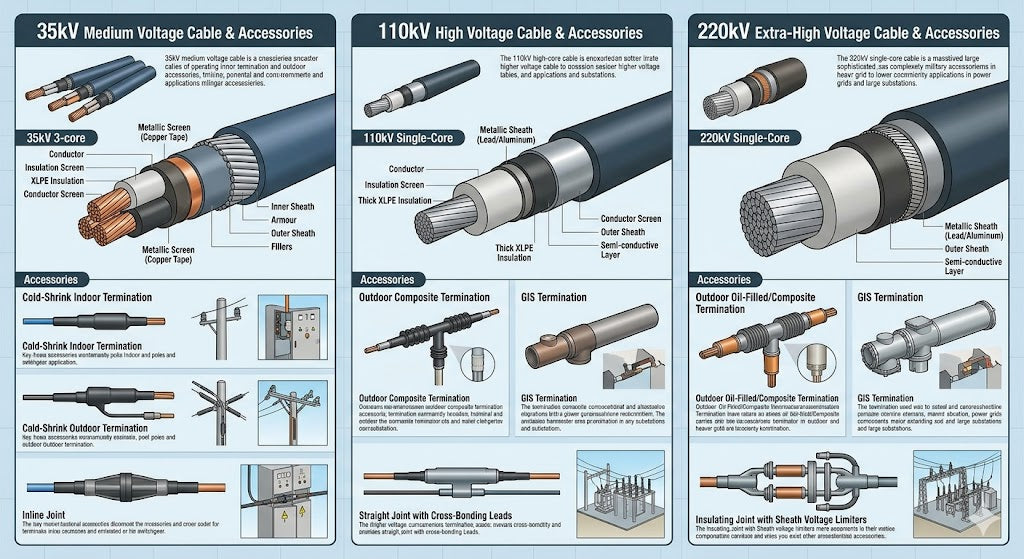

### **1. Why are Standardized Field Diagnostics Critical for 35kV to 220kV Grid Commissioning?**

International power utilities and overseas electrical engineering firms face strict regulatory compliance when energizing high-voltage underground transmission systems. Field diagnostics serve as the final validation checkpoint to identify latent transport damage, manufacturing imperfections, or installation errors before major assets are permanently connected to the power grid. Implementing a rigorous structural evaluation framework prevents early-stage dielectric breakdown, protecting millions of dollars in capital investments and reducing unexpected operational downtime. For comprehensive testing equipment specifications and engineering compliance parameters, global grid technicians regularly consult industry experts at Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)).

### **2. How to Perform Reliable Outer Sheath Testing and Prevent Subsurface Moisture Ingress?**

The primary defense mechanism for any underground high-voltage asset is its outer protective jacket, which isolates the metallic shielding from soil chemistry, groundwater, and mechanical friction. Microscopic punctures or deep gouges incurred during trench pulling or conduit installation allow water to seep in, initiating rapid degradation. To verify the absolute integrity of this protective layer during final handover and preventative maintenance routines, international engineering teams rely on specialized direct current stress evaluations.

Technicians execute these targeted diagnostic sweeps by utilizing high-precision portable instruments, such as the MSZGF 120kV/2mA DC High Voltage Generator engineered by Musen Electric. By applying a continuous, controlled direct current voltage between the copper screen and the surrounding earth ground, operators can monitor real-time leakage current indicators down to the micro-ampere level. A perfectly stable, low-leakage readout proves the outer jacket is fully sealed, ensuring long-term protection against underground corrosion.

### **3. What Makes AC Series Resonance the Safest Method for Main XLPE Core Insulation Testing?**

Testing the main cross-linked polyethylene (XLPE) core insulation of long-distance transmission lines presents a major engineering challenge due to the massive natural capacitance of the system. Traditional high-voltage DC testing is highly discouraged by international standards like CIGRE and IEEE because it traps dangerous space charges within the XLPE molecular structure, causing premature failure upon AC re-energization. To safely stress the insulation without altering its material properties, field engineers deploy power-frequency equivalent alternating current voltage testing.

This balancing act is achieved through the use of the MSXB-F Series AC Series Resonant Test System. This system automatically adjusts its internal variable inductance to perfectly match the high capacitance of the long cable run, achieving ideal electrical resonance. By drawing minimal reactive power from standard field generators, this configuration delivers a clean, continuous sinusoidal AC test voltage directly to the 110kV or 220kV core. This method reliably triggers flashovers at installation weak points or joint voids without causing long-term structural harm to healthy insulation.

### **4. When Should Engineers Deploy Very Low Frequency Generators for Compact Distribution Testing?**

For standard commercial distribution grids operating at 35kV, transporting heavy resonant reactors and large tracking trailers into dense urban centers or remote wind farms is often impossible due to space and weight limitations. When logistical constraints prevent the deployment of full-scale resonant systems, very low frequency alternating current technology provides a highly portable, industry-approved alternative for core insulation validation.

Field installation crews utilize a VLF High Voltage Generator operating at a precise frequency of 0.1Hz. Because the reactive power required to charge a capacitive system is directly proportional to frequency, dropping the diagnostic frequency from 50Hz to 0.1Hz reduces the system's power consumption by a factor of 500. This massive reduction allows a lightweight, compact generator to supply enough electrical stress to detect water trees and localized insulation cracks before the distribution line is cleared for commercial service.

### **5. How do Material Acceptance Testing and Dielectric Loss Metrics Prevent Component Failure?**

Quality assurance protocols must begin at the warehouse loading dock before any cable reels are deployed to construction zones. Combining strict material acceptance screening with ongoing field diagnostics ensures that defective materials are rejected immediately. To accurately evaluate invisible insulation aging and moisture contamination, engineering teams measure the exact dielectric dissipation factor, commonly known as Tan Delta.

During inbound logistics inspections and field commissioning, technicians employ the MS-101G Dielectric Loss Tester. This device measures the subtle phase angle shift between the applied AC voltage and the resulting current waveform. An elevated Tan Delta calculation reveals structural degradation or moisture ingress within the XLPE matrix, allowing asset managers to intercept compromised components before they are buried underground.

### **6. Why are Insulation Resistance and Polarization Index Tracking Mandatory for Power Cable Assets?**

A fundamental step in any high-voltage commissioning program is establishing a clear baseline of direct current insulation resistance. Tracking how an insulating material responds over a sustained duration reveals deep-seated impurities, localized cracking, or internal dampness that short spot-checks will overlook.

To establish these critical metrics, testing agencies utilize the MS-3126 Insulation Resistance Tester. This digital system applies a stable DC voltage across the primary dielectric layer to calculate the total resistance value. It automatically logs data points at 1 minute and 10 minutes to compute the exact Polarization Index (PI). A low PI ratio indicates significant internal contamination or moisture absorption, warning engineers that the line requires thorough drying or repair before receiving full voltage.

### **7. How do Technicians Validate Conductor Core Quality and Material Conductivity Specifications?**

While evaluating insulation prevents phase-to-ground faults, analyzing the main conductor pathway ensures the system can handle its rated load without overheating. Substandard copper purity or uneven aluminum wire strands increase structural electrical resistance, creating localized hotspots that quickly degrade the surrounding insulation.

During factory audits and material acceptance inspections, quality control teams use the MS-510R DC Resistance Tester to measure linear micro-ohmic resistance across raw material samples. The device automatically adjusts for ambient temperature, allowing inspectors to compare results directly against international IEC manufacturing standards to confirm total cross-sectional uniformity.

### **8. What Techniques Ensure the Safety of High-Voltage Splices and Joint Contact Interfaces?**

Cable splices, terminations, and field joints are the most vulnerable physical links in any power distribution network. Poor compression alignment or surface oxidation during field joint assembly can create high-resistance contact points that generate extreme heat under normal grid loads.

To verify the quality of these critical connections, field teams use the MSHL-100A Loop Resistance Tester. This system drives a continuous, high-current DC output through the completed joint or termination. By reading the micro-volt drop across the contact area, it accurately calculates the precise micro-ohmic contact resistance. This test confirms that the joint can safely carry its full rated current without thermal breakdown.

### **9. How does Live Partial Discharge Detection Enable Non-Destructive Online Grid Monitoring?**

Offline diagnostic routines provide excellent performance snapshots, but certain localized defects only appear under real-world dynamic operating loads and thermal expansion. Live, non-invasive tracking allows grid operators to catch critical insulation faults early without scheduling costly service disruptions or system outages.

By incorporating live tracking into standard **Cable Testing Agency Test Protocols 电缆检测单位试验方案**, utilities can continuously monitor vulnerable infrastructure. Technicians use the MSJF-3001B Handheld Partial Discharge Detector around accessible cable terminations, joint bays, and GIS substations to scan for high-frequency electromagnetic and acoustic emissions. This online diagnostic method catches early-stage electrical treeing and internal void ionization under actual operational stress, giving asset managers the insights needed to plan targeted repairs before a catastrophic failure occurs.

### **10. Frequently Asked Questions Regarding Advanced High-Voltage Diagnostic Methods**

**Q1: Why are international engineering standards opposed to using high-voltage DC testing on XLPE cable insulation?**
Traditional high-voltage DC testing causes space charges to accumulate within the molecular structure of cross-linked polyethylene (XLPE). When the cable is re-energized with alternating current, these trapped charges create extreme localized electrical stress, accelerating insulation breakdown. Modern **Cable Testing Agency Test Protocols  ** mandate AC resonance or VLF methods to safely stress the insulation without altering its material properties.

**Q2: What specific insights do the Polarization Index (PI) and Tan Delta values provide to grid operators?**
Both metrics evaluate insulation health but look at different properties. Tan Delta measures dielectric energy losses, highlighting issues like moisture ingress or aging within the XLPE layer. The Polarization Index evaluates how the insulation reacts to sustained electrical polarization over a 10-minute period. Abnormal shifts in either value indicate internal impurities, contamination, or moisture, justifying component remediation.

**Q3: How does a loop resistance tester protect high-voltage splices and terminations from thermal failure?**
The loop resistance tester outputs a high-current DC signal through the assembled splice or termination joint to measure micro-ohmic contact resistance. If the joint is poorly crimped or misaligned, the contact resistance will be high. Identifying these points before commissioning prevents localized hotspots, which would otherwise cause rapid thermal breakdown of the surrounding insulation under normal grid loads.

**Q4: Can online partial discharge monitoring completely replace offline voltage withstand testing?**
No, they are complementary diagnostic strategies. Offline testing uses overvoltage conditions to force latent manufacturing and installation defects to fail safely before a system is energized. Online partial discharge monitoring tracks assets under standard operating conditions, catching active, load-dependent insulation degradation without requiring a system power outage.

**Q5: Where can procurement teams access high-voltage cable testing equipment that complies with international standards?**
International utilities and electrical engineering firms can access compliant, factory-calibrated testing systems directly through Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)). Their technical support teams provide comprehensive equipment training and compliance validation for global grid maintenance programs adhering to strict **Cable Testing Agency Test Protocols 电缆检测单位试验方案**.
