Why Is Closed Cup Flash Point Crucial for Transformer Maintenance?

Closed Cup Flash Point Tester, transformer oil analysis, insulating oil safety standard, diagnostic power testing, oil flashpoint drop

Is your transformer oil volatile? Discover why sub-station engineers prioritize the Closed Cup Flash Point Tester to detect localized overheating and fluid contamination before insulation fires occur.

### 1. What Is the Role of Closed Cup Flash Point in Substation Risk Mitigation?

High-voltage transformer oil functions simultaneously as a dielectric insulation shield and a liquid thermal conductor. Under regular 24/7 operating loads, localized electrical anomalies, sustained overheating, and internal arcing induce thermal cracking within mineral-based hydrocarbon chains. This chemical degradation creates volatile, low-boiling-point flammable sub-products.

Field engineers prioritize testing with a Closed Cup Flash Point Tester because it simulates the sealed, pressurized conditions inside high-voltage electrical assets. By trapping volatile vapors that would prematurely escape during an open-cup test, the closed-cup method identifies exact ignition points down to an accuracy threshold of ±1°C. A recorded drop below 135°C serves as a critical diagnostic metric, indicating early-stage insulation breakdown or cross-contamination that requires immediate oil filtration or degasification.

### 2. How Does Advanced Automation Minimize Measurement Error in Utility Labs?

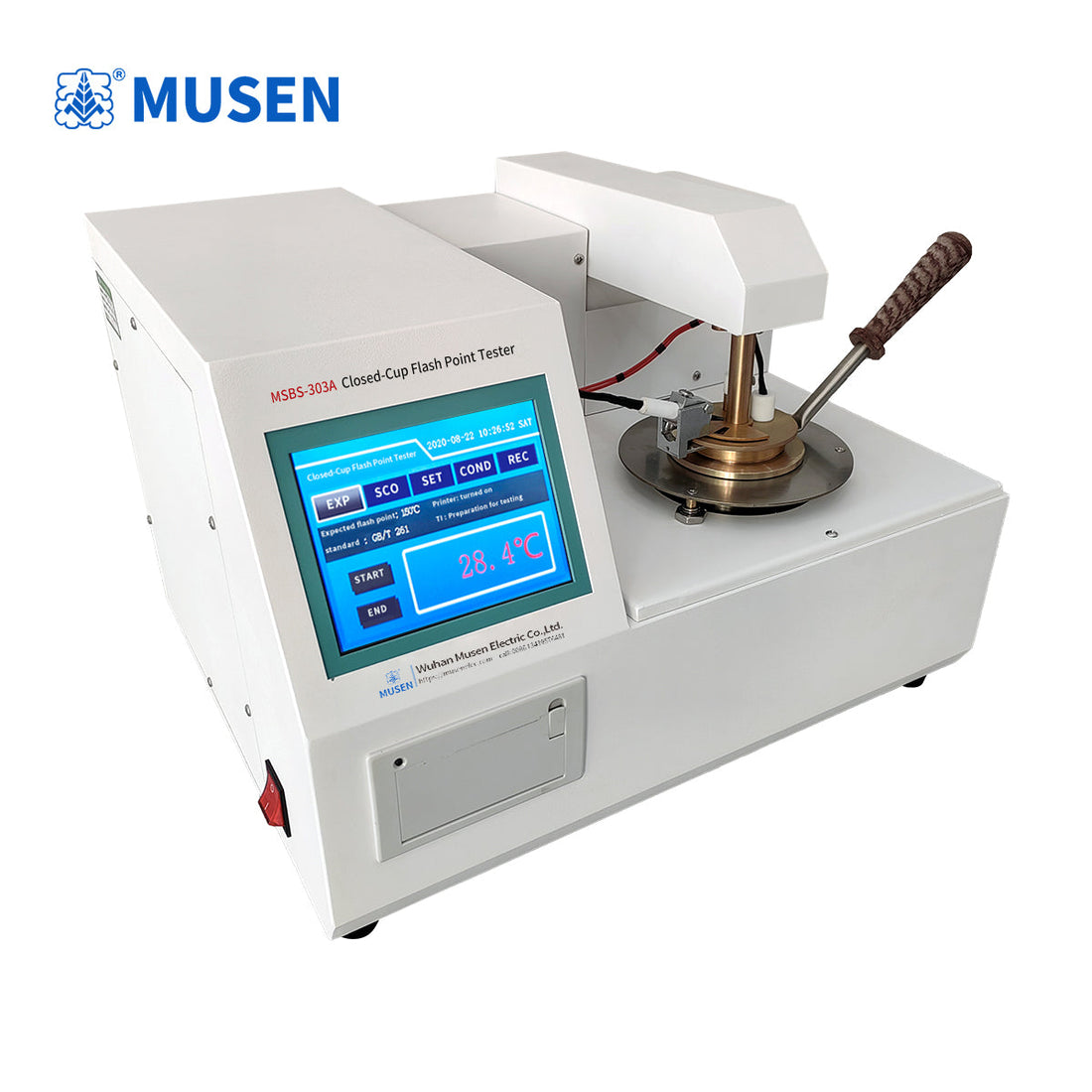

Manual laboratory diagnostics often introduce operator-induced variance, leading to inconsistent baseline data across multi-site utility grids. Industrial testing facilities run by Wuhan Musen Electric Co., Ltd. address this challenge by engineering the Automated Closed Cup Flash Point Analyzer, a high-throughput testing system designed for heavy field workloads.

The integrated architecture optimizes testing workflows via complete automated cycle execution: sample processing, cup-lid mechanical lifting, sweeping exposure, acoustic/visual flash capture, and diagnostic printing are fully handled by an onboard processing core. Equipped with an adaptive PID control algorithm, the system dynamically scales the internal heating curve to match precise regulatory parameters, automatically terminating power and initiating local safety warnings if temperature limits are breached.

### 3. What Technical Features Drive Long-Term Hardware Reliability?

Procurement departments for international power networks require laboratory hardware capable of continuous operation without losing data integrity during sudden voltage drops. Modern diagnostic platforms rely on specialized power and thermal architectures to ensure repeatable data capture under field substation environments.

The physical hardware integration includes:

* A high-speed digital signal processor architecture for robust system stability.
* A heavy-duty platinum heating wire framework supporting interchangeable electric or gas ignition modes.
* Non-volatile data storage with power-off memory protection capable of saving up to 100 testing profiles.
* A built-in barometric pressure tracking sensor that automatically detects local atmospheric deviations and applies instant normalization to standard sea-level values.
* High-power, high-frequency switching power supply heating technology to maximize thermal recovery between testing cycles.

For comprehensive technical specifications, detailed operation videos, or compliance certifications regarding these testing platforms, power infrastructure engineering teams can access documentation online at [www.musenelectric.com](https://www.musenelectric.com).

### 4. Which International Diagnostic Standards Governs Closed Cup Testing?

To ensure test data is legally valid for insurance compliance and cross-border grid audits, laboratory operations must align with global standard testing protocols. The primary frameworks governing closed-cup configurations are ASTM D93 (Pensky-Martens Method) and ISO 2719. These global benchmarks define exact parameters for test cup internal dimensions, stirring speed, heating acceleration rates, and flash trigger mechanics.

Implementing a standards-compliant Automated Closed Cup Flash Point Analyzer ensures that utility assets, whether using traditional mineral oils, synthetic esters, or biodegradable vegetable insulation fluids, are evaluated uniformly. This structural compliance protects multi-site power grids from premature material failure and provides verifiable data for asset risk management.

### 5. Frequently Asked Questions Regarding Fluid Insulation Safety Testing

What causes a sudden, sharp decline in operating transformer oil flash point?
A sharp decline is caused by intense localized thermal faults (hot spots above 300°C) or internal partial discharge arcing. These events break down oil molecules into light, highly flammable gases that dissolve back into the fluid, significantly lowering its ignition point. Cross-contamination with volatile solvents during maintenance can also trigger an immediate drop.

How does barometric pressure affect the final flashpoint temperature reading?
Lower barometric pressure at high altitudes increases the vaporization rate of volatile components, causing the fluid to flash at a lower observed temperature. Advanced testing equipment includes a built-in barometric sensor that automatically adjusts the final measurement output to standard sea-level conditions, ensuring data consistency across disparate geographical locations.

Can the same closed cup instrument test both mineral oils and alternative ester fluids?
Yes, but the heating and stirring parameters must be adjusted. While mineral oils follow strict standard curves, synthetic or natural esters possess different viscosity and thermal degradation profiles. Modern testing systems feature programmable user profiles to accommodate these varying material properties safely and accurately.
