How to Ensure Power System Safety with a Reliable DC High Voltage Tester?

 DC High Voltage Tester, DC Hipot Testing Equipment, Electrical Insulation Analysis, Musen Electric, Portable High Voltage Tester

 is your electrical infrastructure safe? Learn how the DC High Voltage Tester identifies insulation flaws and leakage currents. Explore professional testing standards and equipment from Wuhan Musen Electric Co., Ltd.

1. Why is High Voltage Testing Critical for Grid Reliability?

In modern power engineering, the integrity of insulation determines the lifespan of the entire electrical system. A DC High Voltage Tester serves as a vital diagnostic tool, specifically designed to stress-test the dielectric strength of cables, transformers, and surge arresters. Unlike standard maintenance, high-voltage testing can reveal "invisible" faults such as internal voids or moisture ingress that lower voltage tests might miss. By applying a controlled DC potential, engineers can observe the material's behavior under peak operational stress, ensuring that components at 10kV, 35kV, or higher remain fail-safe.

2. How Does Leakage Current Indicate Potential Insulation Failure?

The primary data point during any DC hipot procedure is the leakage current. This current is categorized into three distinct types:

• Capacitive Charging Current: High at the start but drops to zero once the test object is charged.

• Absorption Current: Resulting from molecular polarization within the dielectric.

• True Leakage Current: The steady-state current that flows through or over the insulation.

  A steady or decreasing leakage current over time indicates healthy insulation. Conversely, a rapidly rising current often signals imminent breakdown. Monitoring these values allows utility providers to transition from reactive repairs to predictive maintenance, significantly reducing unplanned outages.

3. What Technical Standards Govern DC Hipot Testing Procedures?

Professional testing must adhere to international and national standards (such as IEEE or IEC) to ensure accuracy and operator safety. The process involves:

• Pre-test Verification: Verifying the grounding system and checking ambient humidity levels.

• Voltage Incrementing: Applying voltage in equal steps and holding at each stage for 1 minute to stabilize the absorption current.

• The 0.75U Factor: For Metal Oxide Surge Arresters (MOA), measuring the leakage current at 75% of the reference voltage is a mandatory diagnostic step to evaluate aging and moisture.

4. Why Choose the MSZGF Series for Professional Fieldwork?

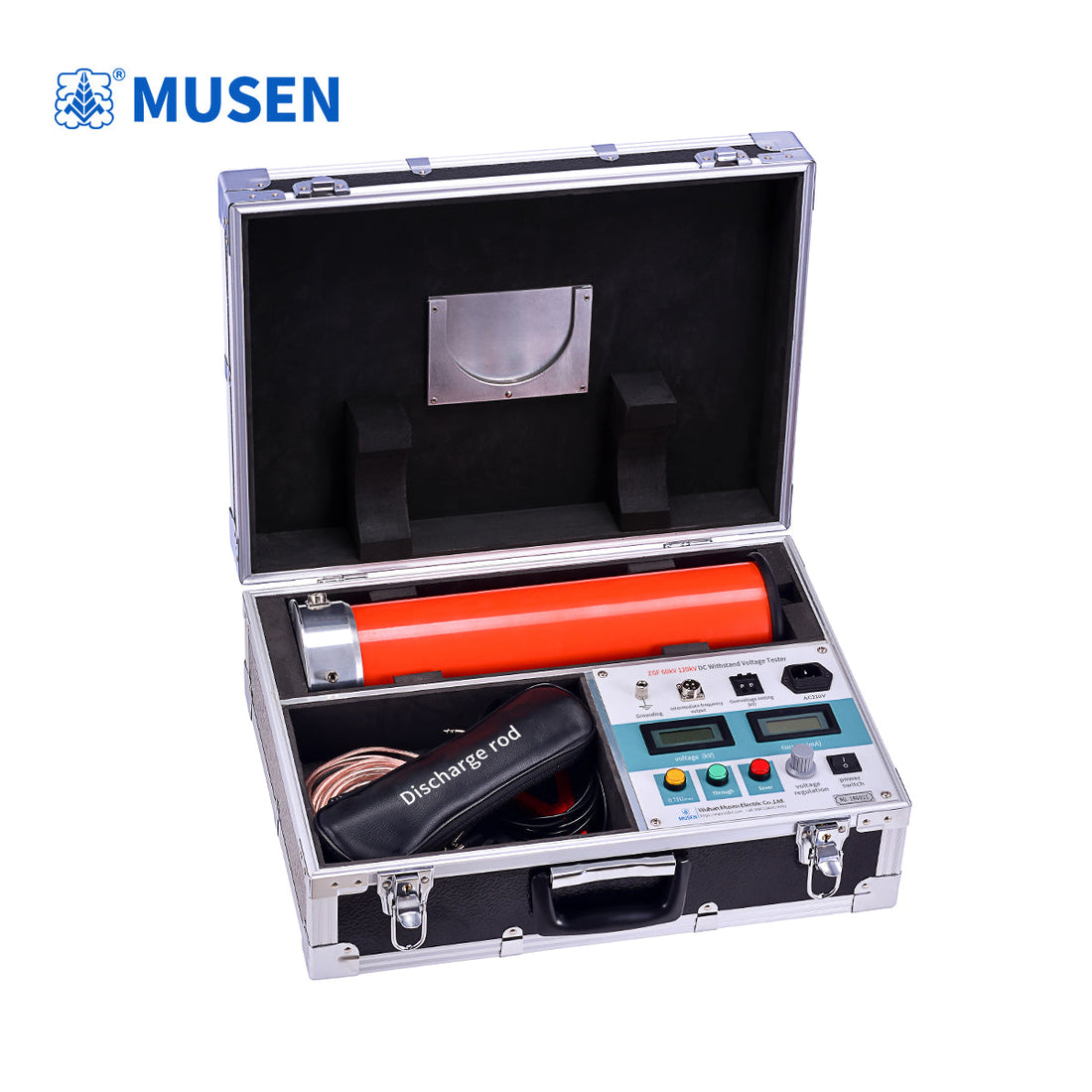

Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) offers the MSZGF series, a high-performance DC High Voltage Tester tailored for the rigorous demands of power plants, railways, and metallurgical sectors.

• High Stability: Utilizes high-frequency voltage doubling circuits and PWM (Pulse Width Modulation) for ripple-free output.

• Comprehensive Protection: Integrated zero-start, over-voltage, and over-current protection circuits.

• Precision Intelligence: Includes a dedicated, one-touch 0.75U button specifically optimized for Zinc Oxide Arrester testing.

• Application Scope: Engineered for DC withstand and leakage testing of power cables, generators, and magnetic blow-out arresters.

5. Can Portable Equipment Handle Industrial-Grade Insulation Analysis?

Advancements in power electronics have allowed DC High Voltage Tester units to become significantly more compact without sacrificing power. Modern portable units from Musen Electric utilize advanced feedback loops to maintain voltage stability even when testing high-capacitance loads like long-distance subsea or underground cables. This portability reduces the logistical cost of substation audits and allows for rapid deployment during emergency fault location.

6. Common Questions Regarding DC High Voltage Testing (FAQ)

Q1: Is a DC test safer for aged cables than an AC test?

A: Yes. DC testing is generally less destructive to aged solid dielectric insulation (like XLPE) because it does not cause the same level of polarization reversal stress that AC testing does, making it preferred for maintenance of older assets.

Q2: What are the ideal environmental conditions for testing?

A: Testing should ideally be performed when relative humidity is below 80%. High humidity increases surface leakage, which can lead to inaccurate data and false failure indications.

Q3: How often should power transformers undergo DC leakage testing?

A: Most utility standards recommend a full diagnostic every 1 to 3 years, or immediately following any significant surge event or protective relay trip.

Q4: Does the MSZGF series support automated discharge?

A: While the unit features high-internal resistance safety, it is always required to use a professional external discharge rod to ensure the test object is completely neutralized before handling.
