 1. Why is the DC Electrical Insulation Tester Critical for Grid Integrity?**
In large-scale power projects managed by **Wuhan Musen Electric Co., Ltd.**, the insulation health of high-voltage assets is non-negotiable. Using a professional **DC Electrical Insulation Tester** is the industry standard for identifying microscopic fissures and moisture ingress in 220kV cables and power transformers. Unlike traditional AC methods, DC testing minimizes the reactive power burden on the testing source, allowing for a precise evaluation of the leakage current. This data-driven approach ensures that potential breakdowns are predicted before they cause expensive downtime.

 2. How Does DC Hipot Testing Detect Transformer Insulation Defects?**
For substation maintenance, the **DC Hipot Tester** serves as a diagnostic "X-ray" for transformer windings. By applying a controlled high-voltage DC ramp, engineers can measure the insulation resistance and the absorption ratio. Digital monitoring of the leakage current during this process reveals whether the insulating paper or oil has degraded. Authoritative standards suggest that a stable leakage current under sustained high voltage indicates a robust dielectric strength, whereas a fluctuating or rising current signals immediate maintenance needs.

 3. What Are the Standard Procedures for Arrester and Cable Testing?**
Testing surge arresters and power cables requires extreme precision in voltage regulation. High-quality **DC High Voltage Test Equipment** is utilized to perform the critical U1mA (reference voltage) and 0.75U1mA leakage current tests for Zinc Oxide (ZnO) arresters. For cables, the equipment must provide a smooth, ripple-free voltage to avoid damaging the XLPE insulation. Structured testing protocols involve:
* **Initial Leakage Measurement:** Checking baseline insulation at lower voltages.
* **Voltage Step Ramp:** Gradually increasing to the rated test voltage.
* **Observation Phase:** Holding voltage for 1–5 minutes to verify dielectric stability.

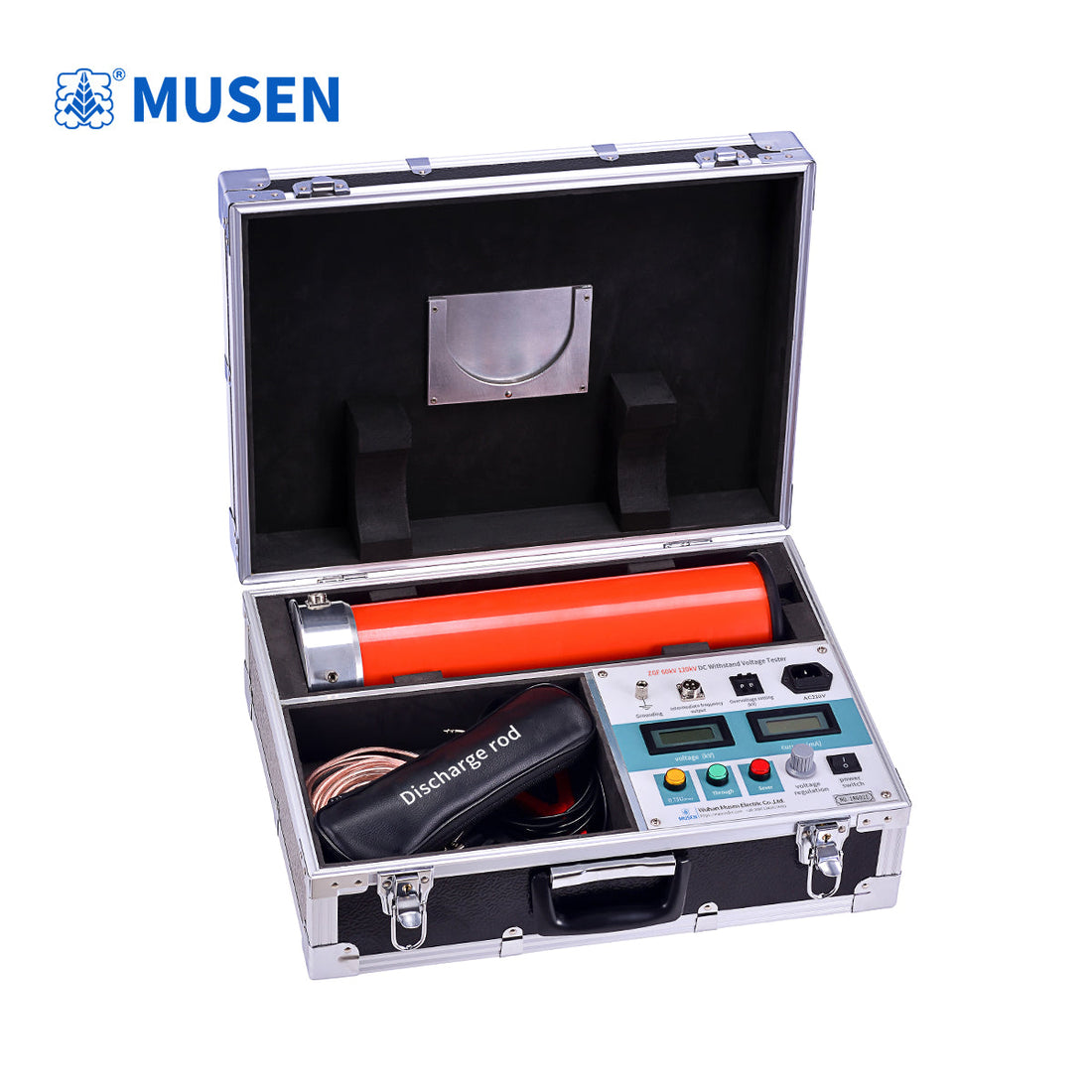

 4. Advanced Specifications of Musen High-Voltage Equipment**
To meet the rigorous demands of international power engineering, **Wuhan Musen Electric Co., Ltd.** ([www.musenelectric.com](https://www.musenelectric.com)) provides state-of-the-art testing solutions designed for durability and accuracy:
* **Precision Control:** Utilizing PWM high-frequency modulation and dual closed-loop feedback for ultra-stable voltage output and minimal ripple.
* **High Resolution:** Digital displays offer high-resolution readings for both voltage and current, eliminating manual calculation errors.
* **Rapid Safety Response:** Integrated protection against over-voltage, over-current, and flashover with nanosecond response times to protect operators.
* **Efficiency Tools:** A dedicated "0.75U" one-touch function specifically optimized for the rapid assessment of ZnO arresters.

 5. Professional FAQ for High-Voltage Asset Management**

**Q1: Can a DC Hipot Tester replace an AC resonant test system?**
While both test dielectric strength, DC testing is preferred for field maintenance and long-distance cables due to the smaller equipment size and lower power requirements. However, certain commissioning standards may still require AC testing for specific components.

**Q2: What is the significance of the 0.75U function?**
The 0.75U1mA test is the primary indicator of aging in surge arresters. If the leakage current exceeds the manufacturer's limit at this voltage, the arrester is likely contaminated or moisture-damaged.

**Q3: How does the equipment ensure safety during a breakdown?**
Modern testers from **Wuhan Musen Electric Co., Ltd.** feature electronic "smart" trip systems that cut off the high-voltage output within milliseconds of detecting a discharge or arc, preventing damage to the test object and the device itself.

**Q4: Is the equipment portable enough for remote substations?**
Yes, current designs focus on high power density, making them significantly lighter than older oil-filled transformers, allowing for easier transport in challenging terrain.
