Why is the AC/DC Withstand Voltage Tester Essential for Power Infrastructure Safety?

 AC/DC Withstand Voltage Tester, Dielectric Strength Testing, High Voltage Test Transformer, Musen Electric, Electrical Insulation Test

 Explore why the AC/DC Withstand Voltage Tester is a critical tool for ensuring electrical safety. Learn about technical specifications, application standards, and professional testing solutions from Wuhan Musen Electric Co., Ltd.

1. What Are the Core Functions of an AC/DC Withstand Voltage Tester in Modern Power Systems?

In the field of international power engineering, maintaining the integrity of insulation is the primary defense against catastrophic system failures. The AC/DC Withstand Voltage Tester is specifically engineered to perform insulation strength tests on various electrical products, components, and insulating materials under strictly regulated voltage conditions. By applying a high-potential (Hipot) stress, the equipment identifies potential dielectric weaknesses that could lead to leakage or flashovers. This process is not merely a safety check but a mandatory compliance procedure for high-voltage cables, transformers, and switchgear used in global utility grids.

2. Technical Specifications: Navigating Capacity and Voltage Requirements

For procurement officers and engineers at overseas power utilities, data-driven selection is vital. Professional testing requires a modular approach where the control unit and the transformer are matched to the specific load. The equipment must handle diverse scenarios, from laboratory research to rugged field maintenance.

• Capacity Range: 1.5kVA to 300kVA, ensuring coverage for both small electronic components and large-scale power apparatus.

• Voltage Output: Configurable options at 50kV, 100kV, and 150kV to align with international testing standards (such as IEC or IEEE).

• Media Versatility: Depending on the environment, the AC/DC Withstand Voltage Tester can be equipped with three types of transformers:

  • Oil-Immersed: Known for superior heat dissipation and long-term stability.

  • Dry-Type: Ideal for indoor facilities requiring clean, maintenance-free operation.

  • Gas-Filled (SF6): The preferred choice for mobile field testing due to its lightweight and compact footprint.

3. Why Choose the YDJZ(Q) GTB Series by Musen Electric for Global Projects?

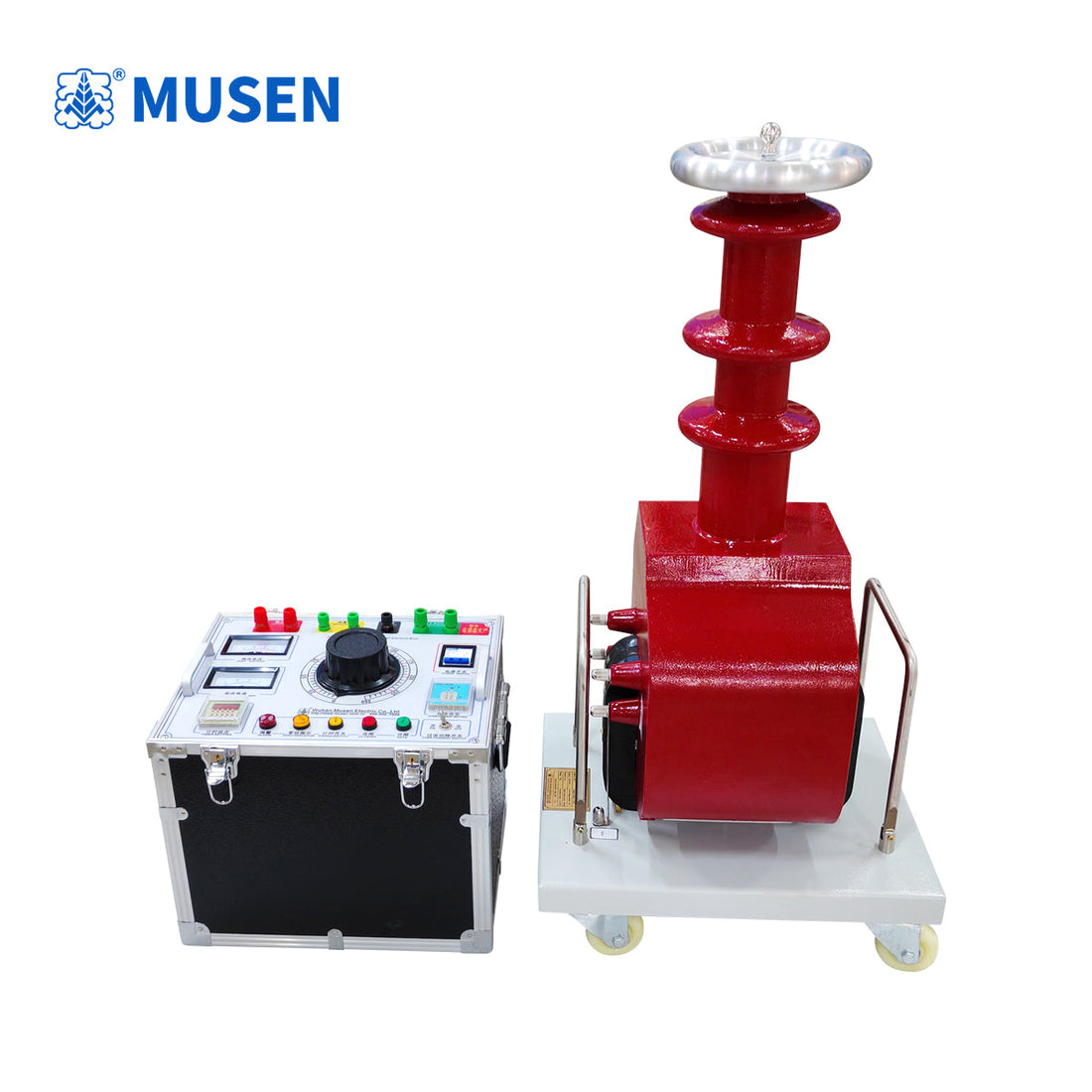

Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides the YDJZ(Q) GTB series, a flagship solution that integrates versatility with industrial-grade reliability. This system is designed for a dual-purpose role, capable of performing both power frequency AC withstand tests and DC leakage current measurements. Its modular design allows for seamless transport and on-site assembly, a critical factor for remote substation projects. Furthermore, the system includes integrated protection logic—such as over-current tripping and zero-start interlocks—which are essential for protecting both the high-value test objects and the operators in high-risk environments.

4. Industrial Applications: From Switchgears to Advanced Insulating Materials

The AC/DC Withstand Voltage Tester serves as an authoritative tool for verifying the dielectric properties of a wide range of assets. It is extensively used to test:

• Power Cables: Detecting insulation degradation in 10kV to 35kV networks.

• Transformers & Inductors: Ensuring winding-to-ground and phase-to-phase safety.

• Insulation Materials: Validating the breakdown voltage of resins, ceramics, and composite polymers.

  This equipment ensures that every component meets the stringent safety thresholds required by power bureaus and industrial manufacturing plants worldwide.

5. Professional Testing FAQ: Expert Insights for Power Engineers

Q: Can one unit perform both AC and DC testing simultaneously?

A: While the unit is designed for both modes (dual-purpose), the tests are performed sequentially. The operator can switch between AC and DC modes depending on whether they are simulating operational stress or measuring precise leakage current.

Q: Which transformer type is best for high-altitude environments?

A: Gas-filled (SF6) transformers are highly recommended for high-altitude or remote field sites due to their excellent insulation properties at lower air pressures and their significant weight reduction compared to oil-filled models.

Q: How does the zero-start protection improve site safety?

A: Zero-start protection is a safety interlock that prevents the system from energizing unless the voltage regulator is at the starting (zero) position. This eliminates the risk of accidental high-voltage surges that could damage the equipment or cause electrical injury.

Q: What is the maximum capacity available for large-scale industrial testing?

A: For heavy-duty industrial applications, the system can be scaled up to a 300kVA capacity, providing sufficient power to charge the capacitance of long-distance cables or large generator windings during high-voltage stress tests.
