1. Why is DC Resistance Testing Mandatory for Modern Power Transformers?

In international power engineering standards, measuring winding resistance is not optional; it is a critical benchmark for equipment integrity. A Transformer DC Winding Resistance Tester serves as the primary diagnostic tool to verify that the internal conductive circuits are free from defects. For global utility providers and transformer manufacturers, this test identifies "invisible" issues such as poor material conductivity, substandard welding at joints, and structural imbalances within the coils. By detecting these anomalies early during factory acceptance tests (FAT) or site commissioning, engineers prevent catastrophic failures that could lead to unplanned grid outages.

2. How Does a Transformer Ohmmeter Detect Hidden Manufacturing Defects?

Precision in measurement is the only way to uncover subtle mechanical flaws. Using a high-grade Transformer Ohmmeter, technicians can identify specific failure modes including loose connection bolts, missing strands in multi-strand conductors, and broken wires. Data-driven maintenance relies on these readings to ensure that the DC resistance of each phase is balanced. According to industry regulations, any significant deviation in resistance values between phases or from the original design specifications indicates a high risk of localized overheating or contact oxidation, which are leading causes of transformer degradation.

3. What Are the Performance Standards for a Winding Resistance Test Set in Field Operations?

For field engineers at Wuhan Musen Electric Co., Ltd. (www.musenelectric.com), the efficiency of the Winding Resistance Test Set is as vital as its accuracy. Modern testing environments require equipment that can stabilize quickly under high-inductance conditions. Whether performing routine preventive maintenance or urgent post-fault analysis, the ability to deliver a consistent, high-power DC current is essential for saturating the transformer core. This ensures that the resulting data is repeatable and serves as a reliable "digital twin" of the transformer’s health throughout its multi-decade lifecycle.

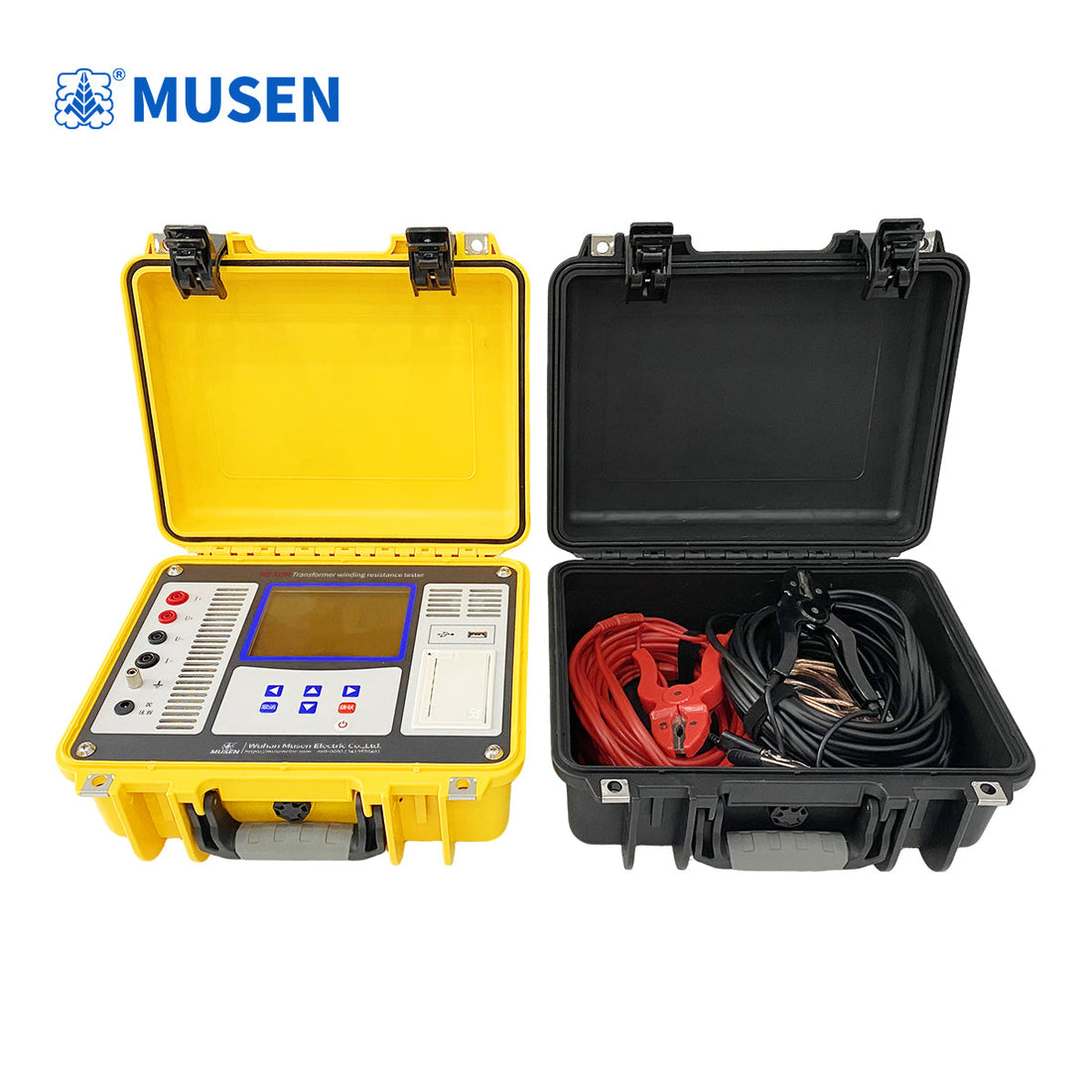

4. Technical Specifications and Hardware Advantages

To meet the rigorous demands of overseas power projects, our equipment integrates advanced power management with high-precision sensing:

• Dual-Power Versatility: Features an adaptive system for Lithium battery or 220V AC power. A single charge supports continuous testing of over 100 transformers, maximizing field uptime.

• Dynamic Current Range: Provides six selectable output tiers with a maximum of 10A current and 25V voltage, including an intelligent auto-select mode for optimized testing speed.

• Measurement Precision: Offers an ultra-wide range from 500uΩ to 50KΩ, ensuring accuracy for both massive GSU transformers and smaller distribution units.

• Smart Analytics: Includes an integrated temperature conversion function, automatically normalizing resistance values to standard reference temperatures for immediate analysis.

• Active Safety Shield: Built-in protection against back-EMF, open circuits, and power loss, complemented by an overheating alarm for maximum operator safety.

5. Frequently Asked Questions (FAQ)

Q: How often should DC resistance testing be conducted on site? A: It is recommended during initial installation, after any major fault or tap changer adjustment, and as part of periodic preventive maintenance every 3 to 5 years, depending on the criticality of the asset.

Q: Why is back-EMF protection critical for my testing equipment? A: Transformers store significant magnetic energy. When a test is completed and the current is cut, this energy can discharge as a high-voltage spike. Back-EMF protection safely dissipates this charge to protect the internal circuitry of the tester and the user.

Q: Can this equipment handle 3-phase transformers efficiently? A: Yes, the high-voltage output (25V) and 10A current capacity allow for rapid core saturation, significantly reducing the wait time for stable readings on large 3-phase units compared to lower-spec devices.
