Why Do SF6 Density Relays Require Regular Field Calibration?

 SF6 Gas Density Relay Calibrator, High Voltage Switchgear Maintenance, Power Grid Reliability, Musen Electric, Electrical Testing Equipment

 Discover why regular calibration of SF6 density relays is essential for grid safety. Wuhan Musen Electric Co., Ltd. provides expert insights into automated field testing and equipment recommendations for global power utilities.

1. Why is Precise SF6 Monitoring Essential for High-Voltage Infrastructure?

In the global power industry, Sulfur Hexafluoride (SF6) gas is the gold standard for insulation and arc quenching in high-voltage switchgear. However, the safety of these assets is entirely dependent on the density of the gas, not just its pressure. Factors such as aging seals, temperature fluctuations, and mechanical vibration can cause monitoring accuracy to drift. For overseas power utilities, ensuring that a SF6 Gas Density Relay Calibrator is used for routine maintenance is a non-negotiable protocol to prevent insulation failure and unplanned outages. Data suggests that over 30% of gas-related equipment failures stem from faulty monitoring components rather than actual leaks.

2. How Does Temperature Compensation Affect Field Test Accuracy?

Testing in outdoor substations involves extreme temperature variables. Because gas pressure is proportional to temperature, a static reading is useless for safety analysis. Professional field testing requires converting all data to a standardized 20°C baseline. Modern digital systems utilize complex gas characteristic algorithms to ensure that the relay triggers at the exact specified density. This level of precision is why leading engineering firms prioritize automated tools that remove the margin for human error, ensuring that the switchgear's "alarm" and "lockout" functions remain reliable under all climate conditions.

3. What Are the Technical Requirements for Professional Calibration Equipment?

Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) specializes in high-precision power testing hardware designed for rugged field use. For international procurement managers, the equipment must meet specific structural and functional benchmarks to justify the investment.

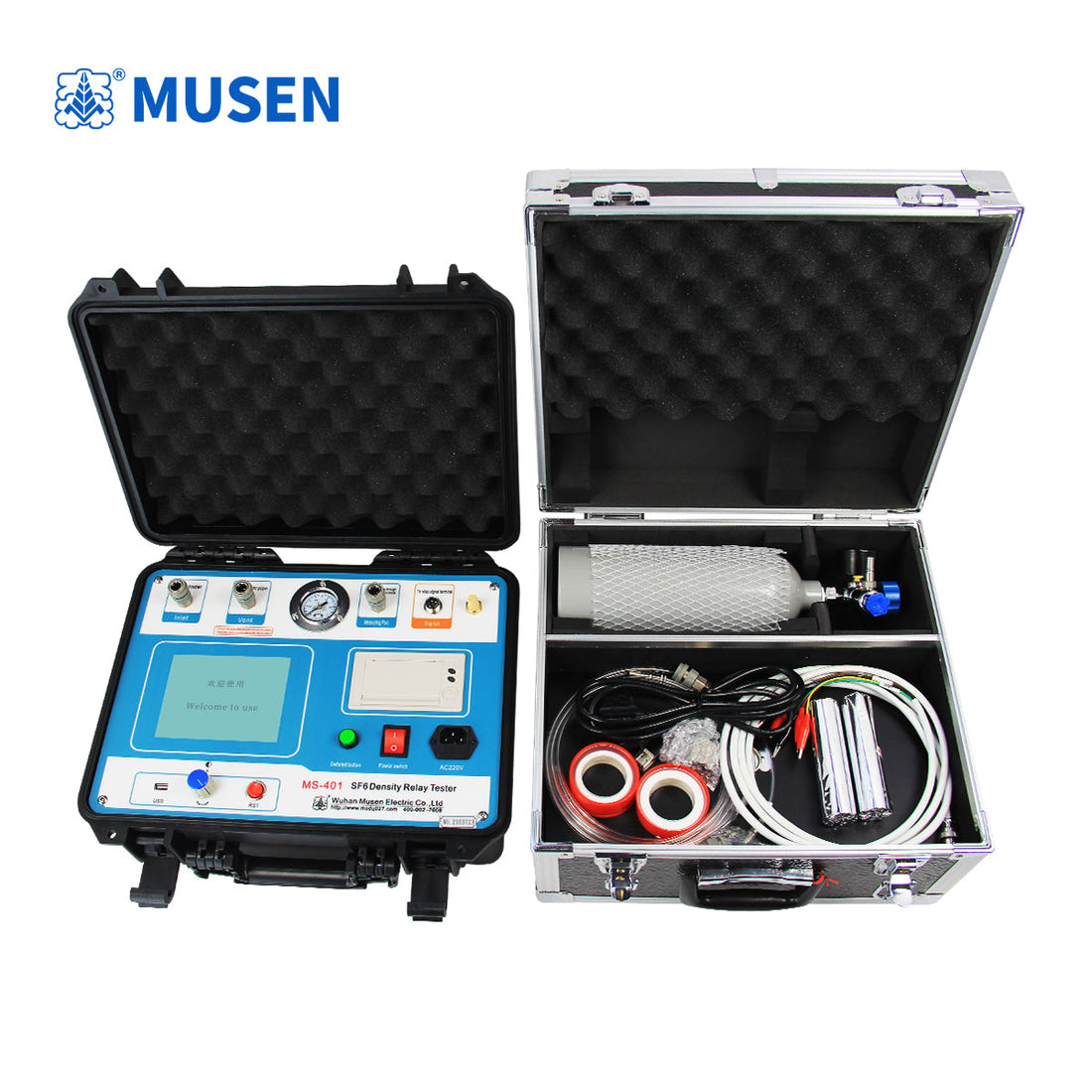

Core Technical Capabilities of the SF6 Gas Density Relay Calibrator:

• Comprehensive Signal Detection: Measures alarm values, lockout values, and their respective recovery values with high precision.

• Dual-Lockout Testing: Capable of performing both single-lockout and double-lockout measurement processes.

• Integrated Pressure Calibration: Includes functions for both ambient temperature pressure gauge verification and 20°C standardized calibration.

• Total Automation: The entire testing sequence is automated, eliminating manual gas circuit adjustments and preventing gas loss during the process.

• Universal Compatibility: Equipped with a comprehensive set of transition adapters, allowing for the calibration of most global switchgear brands without the need to disassemble the relay.

• Environmental Adaptability: No constant-temperature environment is required; the device performs accurate compensation within any valid operating temperature range.

• Multi-Signal Efficiency: Simultaneously tests one set of alarm signals and two sets of lockout signals for maximum efficiency.

4. Frequently Asked Questions (FAQ)

Q: Can these tests be performed while the switchgear is energized?

A: While the density relay can often be tested without disassembly using specialized valves and adapters, standard safety protocols usually require specific isolation procedures to ensure technician safety and prevent accidental tripping of the circuit breaker.

Q: Why choose an automated calibrator over manual pressure kits?

A: Manual kits require constant human monitoring and precise valve control, which are prone to error. An automated system ensures repeatable results, generates digital reports for E-E-A-T compliance, and significantly reduces the time spent at each substation.

Q: Does the equipment support different gas mixtures?

A: Most professional units from Musen Electric are calibrated for pure SF6, but they can be programmed with specific compensation curves for various gas mixtures used in modern eco-friendly switchgear.

Q: How does this tool prevent SF6 gas emissions during testing?

A: The internal gas circuit is designed to be a closed loop or utilizes micro-leakage connectors, ensuring that the environmental impact is minimized and gas consumption is negligible during the calibration cycle.
