1. Why Must Utilities Prioritize OLTC Transition Waveform Analysis?

In global power engineering, the On-Load Tap Changer is recognized as the most vulnerable component of a power transformer. Since it operates under load, any mechanical fatigue or contact degradation can lead to localized overheating. Using a professional OLTC Tester allows engineers to visualize the transition process. By capturing the continuous waveform, maintenance teams can detect "contact bouncing" or arc duration issues before they evolve into catastrophic insulation failures. For international service providers, this data-driven approach is the foundation of Condition-Based Maintenance (CBM).

2. How Does Transition Time Impact Transformer Operational Safety?

Precision in timing is the difference between a successful voltage adjustment and a resistor burnout. The switching sequence must occur within a specific millisecond window to ensure the "make-before-break" contact logic. If the transition time exceeds the design threshold (typically 250ms), the transition resistors are subjected to prolonged thermal stress. Modern utilities utilize an OLTC Analyzer to verify these timings against factory benchmarks, ensuring that the mechanical drive system has not slowed down due to oil sludge or linkage wear.

3. Is Your Three-Phase Synchronization Within International Standards?

For three-phase transformers, the simultaneous movement of all phases is non-negotiable. Synchronization errors lead to circulating currents and neutral point displacement, which destabilize the local grid. High-end testing protocols require measuring the synchronization deviation across all phases. This is not merely a mechanical check but a critical electrical verification to ensure that voltage regulation is uniform across the entire power system, preventing unnecessary harmonic distortion or phase imbalance.

4. How to Interpret Instantaneous Transition Resistance Values?

Monitoring the resistance at each micro-moment of the transition provides a diagnostic map of the internal contact health. Fluctuations in resistance values often indicate carbon deposits on the contacts or weakened spring pressure. By documenting these values over time, engineering firms can predict the remaining useful life (RUL) of the On-Load Tap Changer. This proactive monitoring significantly reduces the Total Cost of Ownership (TCO) for substation assets by avoiding unplanned outages.

5. Technical Specifications for Professional Maintenance

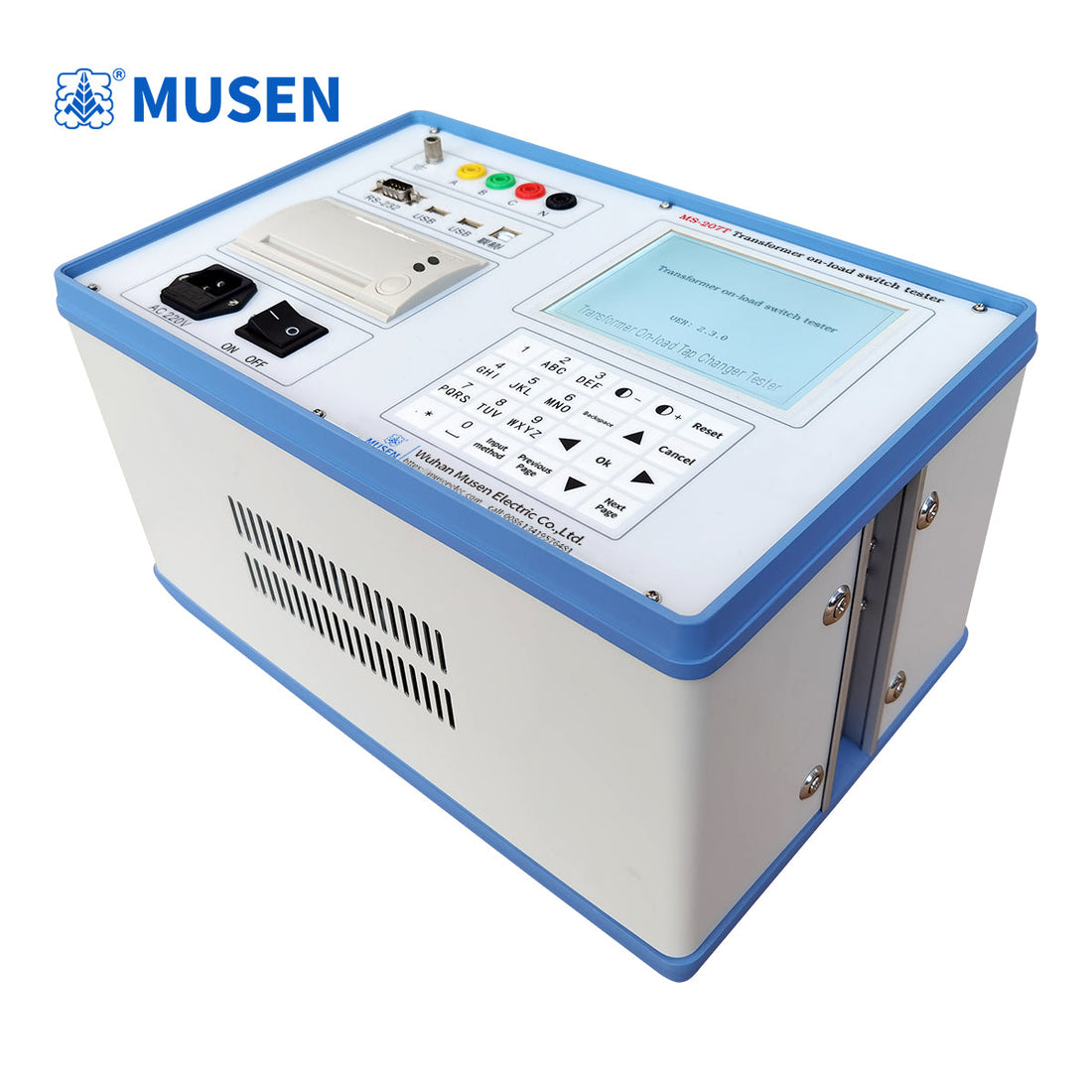

Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides high-precision diagnostic tools designed for the rigorous demands of overseas electrical infrastructure projects. Our equipment is engineered to provide authoritative data for complex field environments:

• Diagnostic Capability: Full measurement of transition waveform, transition time, instantaneous transition resistance, and three-phase synchronization.

• Power Output: Output current ≥ 1A with 3-channel simultaneous testing to improve efficiency.

• Data Resolution: 6-channel sampling at a high-speed frequency of 10KHz/s for micro-arc detection.

• Measurement Thresholds: Transition resistance range of 0.5Ω～20Ω and transition time detection up to 250ms.

6. Frequently Asked Questions (FAQ)

Q1: Why is a 10KHz sampling frequency necessary for these tests?

The transition process happens so quickly that standard meters cannot see the details. A 10KHz rate allows the device to capture high-speed transients and transient resistance changes that are invisible to lower-grade equipment.

Q2: Can OLTC testing be performed without draining the transformer oil?

Yes, these electrical tests are performed with the unit de-energized but the oil remains in place, allowing for a non-invasive diagnostic of the internal switching mechanism.

Q3: What are the primary indicators of a failing On-Load Tap Changer?

The most common red flags are an interrupted transition waveform, resistance values that deviate by more than 10% from the nameplate, and three-phase synchronization differences exceeding 3ms.

Q4: How does Musen Electric support international power projects?

Through www.musenelectric.com, we provide structured technical data and robust testing hardware that complies with international power grid maintenance standards, ensuring reliable performance in diverse climates.
