### **1. What Defines a True Partial Discharge-Free Test System for High-Voltage Assets?**

In international power grid engineering, validating the dielectric integrity of 110kV and 220kV substation assets requires extreme diagnostic precision. During high-voltage AC withstand procedures, traditional component-based test setups inherently introduce external electromagnetic noise and corona emissions. These stray discharges often generate a background interference floor approaching 10pC, which masks the faint micro-spark signals of early-stage insulation defects inside the asset under test.

To overcome this diagnostic limitation, Wuhan Musen Electrical Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) has engineered an advanced, integrated gas-insulated testing platform. By enclosing the entire high-voltage generation circuit within a continuous, grounded metal shield, this specialized solution suppresses internal structural discharges. The resulting configuration operates as a genuine **partial discharge-free test system**, driving the total background noise floor down to an ultra-clean threshold of less than 5pC. This high signal-to-noise ratio allows field testing engineers to accurately isolate genuine internal insulation flaws from environmental electromagnetic anomalies.

### **2. How Does the Integrated Architecture Optimize Field Logistics and Substation Safety?**

Traditional high-voltage test fields require separate placement and manual interconnection of multiple bulky components, including power isolation transformers, low-voltage compensation reactors, high-voltage test transformers, current-limiting reactors, coupling capacitors, and voltage dividers. Managing these discrete units at a crowded substation site requires heavy crane logistics, long setup times, and complex grounding layouts that increase the risk of loose connections and safety hazards.

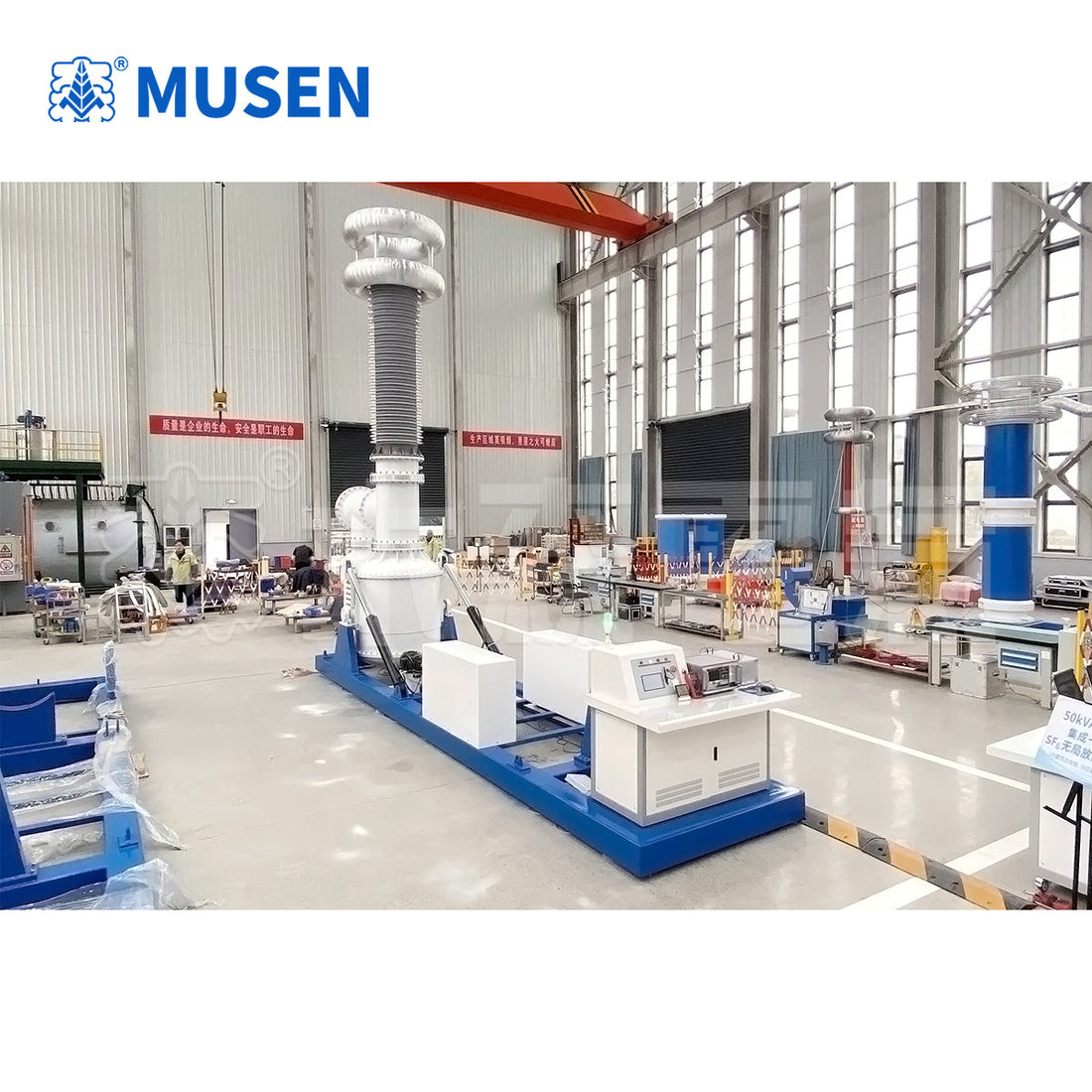

The engineering design from Musen Electric addresses these field challenges through structural integration and fluid automation. The system combines the test transformer, coupling capacitor, current-limiting resistor, and voltage divider into a single, compact, gas-insulated alloy enclosure. This integrated architecture features a built-in hydraulic lifting system that automates the transition between transit and operation with a single control command.

During transport, the heavy testing column is safely lowered horizontally to maintain a low center of gravity and clear public road height restrictions. Once on-site, high-torque hydraulic cylinders smoothly erect the column vertically into its operational stance. This design eliminates the need for external crane rentals, protects operators from heavy rigging hazards, and reduces on-site deployment time from several days to a few hours.

### **3. Why is Gas Insulation Superior to Oil-Filled Technology in Harsh Utility Environments?**

For global utility contractors and asset managers, equipment reliability under changing climate conditions is critical for predictable maintenance schedules. Open-air high-voltage testing systems are highly sensitive to weather variations; high humidity, coastal salt fog, and airborne dust can cause surface tracking on open insulation columns, distorting partial discharge measurements. Furthermore, traditional oil-filled testing transformers present environmental contamination risks from fluid leaks and severe fire hazards if an internal breakdown occurs under high stress.

Utilizing sulfur hexafluoride (SF6) or eco-friendly alternative gas mixtures as the primary dielectric medium provides clear operational advantages. This non-flammable, chemically inert gas offers excellent arc-quenching capabilities and a dielectric strength roughly three times higher than dry air at atmospheric pressure. Because the entire high-voltage circuit is fully sealed inside a grounded metal environment, its internal dielectric stability remains completely isolated from external weather conditions.

Additionally, this gas-insulated design eliminates the need for routine fluid maintenance, such as oil sampling, filtration, or dissolved gas analysis (DGA). Field maintenance is simplified to periodic monitoring of gas pressure and density via integrated gauges, providing a clean, maintenance-free testing platform for industrial testing laboratories and remote substation sites.

### **4. How Do High-Speed Protective Controls Prevent Catastrophic Equipment Damage?**

Executing dielectric withstand tests on 110kV and 220kV power transformers, Gas Insulated Switchgear (GIS), and instrument transformers involves managing massive amounts of reactive power. If an insulation breakdown occurs inside the asset under test, the stored electrical energy is instantly released as a high-frequency current surge. Without high-speed protective controls, this energy return can damage sensitive measuring instruments, destroy the test apparatus, or jeopardize operator safety.

The digital control core of the **partial discharge-free test system** features a multi-layered safety architecture designed for fast risk mitigation. The system continuously tracks primary and secondary current loops using ultrafast overcurrent detection circuits, triggering electronic isolation within milliseconds if currents exceed preset thresholds. This is paired with dual-layer overvoltage protection to prevent dangerous voltage overshoots.

Furthermore, automated zero-return hardware interlocks prevent the system from energizing unless the voltage regulator is confirmed to be at absolute zero. If a breakdown occurs, the automated control desk quickly trips the input power and triggers an automatic voltage ramp-down to zero, protecting the entire testing circuit and providing safe, repeatable risk management during destructive testing procedures.

### **5. Frequently Asked Questions Regarding Non-Discharge High-Voltage Testing**

**Q1: What are the primary equipment types that can be evaluated using this integrated system?**
A1: The system is engineered to satisfy the AC withstand and partial discharge diagnostic requirements for high-voltage power apparatus operating at 110kV and 220kV voltage classes. This includes power transformers, Gas Insulated Switchgear (GIS) assemblies, current transformers (CTs), voltage transformers (VTs), high-voltage bushings, and surge arrestors.

**Q2: Why is a background noise level of less than 5pC critical for testing GIS installations?**
A2: Gas Insulated Switchgear relies on high-pressure gas insulation within tight metallic spaces. Internal defects, such as microscopic metallic particles, spacer voids, or conductor surface protrusions, generate tiny partial discharge signals. A traditional testing system with a 10pC noise floor will often mask these signals, whereas a **partial discharge-free test system** with a noise floor below 5pC provides the sensitivity needed to detect these minor defects before they cause a complete insulation breakdown in the field.

**Q3: What field maintenance is required for a gas-insulated test transformer compared to an oil-filled unit?**
A3: Oil-filled units require regular fluid sampling, moisture analysis, filtration, and continuous monitoring for oil leaks to prevent environmental contamination. The gas-insulated system from Musen Electric completely eliminates oil leakage risks. Its maintenance profile is simplified to periodic visual checks of the integrated gas pressure and density gauges, significantly reducing long-term maintenance costs for field testing crews.

**Q4: How does the hydraulic lifting system improve safety during on-site substation deployment?**
A4: Traditional mobile testing setups require field crews to manually rig and hoist heavy insulation columns using external crane equipment, creating safety risks in crowded substation environments. The integrated one-click hydraulic lifting system automates this process entirely. Operators lift and lower the main testing cylinder from a centralized control station, keeping personnel safely outside the lifting zone and eliminating crane setup errors.
