Why Is a Laboratory Partial Discharge Simulation Device Crucial for Substation Reliability?

 Laboratory Partial Discharge Simulation Device, GIS partial discharge simulator, high voltage diagnostic equipment, partial discharge testing, Musen Electric
 Learn why global grid operators rely on a Laboratory Partial Discharge Simulation Device to prevent catastrophic GIS failure and master multi-modal PD diagnostics.

### **1. What Hidden Risks Threaten Gas Insulated Switchgear Integrity?**

Gas Insulated Switchgear (GIS) installations form the backbone of modern power transmission networks, valued for their compact footprint and high operational reliability. However, localized insulation defects within these systems present a continuous threat of catastrophic failure. Over time, manufacturing tolerances, thermal cycling, and mechanical stresses induce microscopic degradation. If left unmanaged, these minor flaws escalate into full-scale dielectric breakdown, costing utilities millions in emergency downtime and asset replacement.

To mitigate these risks before they manifest as field failures, international maintenance standards dictate rigorous monitoring. The primary indicator of this internal degradation is partial discharge (PD). Replicating these complex phenomena under controlled conditions requires specialized high-voltage diagnostic equipment. A high-fidelity **Laboratory Partial Discharge Simulation Device** serves as the reference benchmark for identifying, measuring, and isolating these insulation anomalies before they compromise grid security.

### **2. How Does the MS-GTU-PD808 System Replicate Complex Substation Defects?**

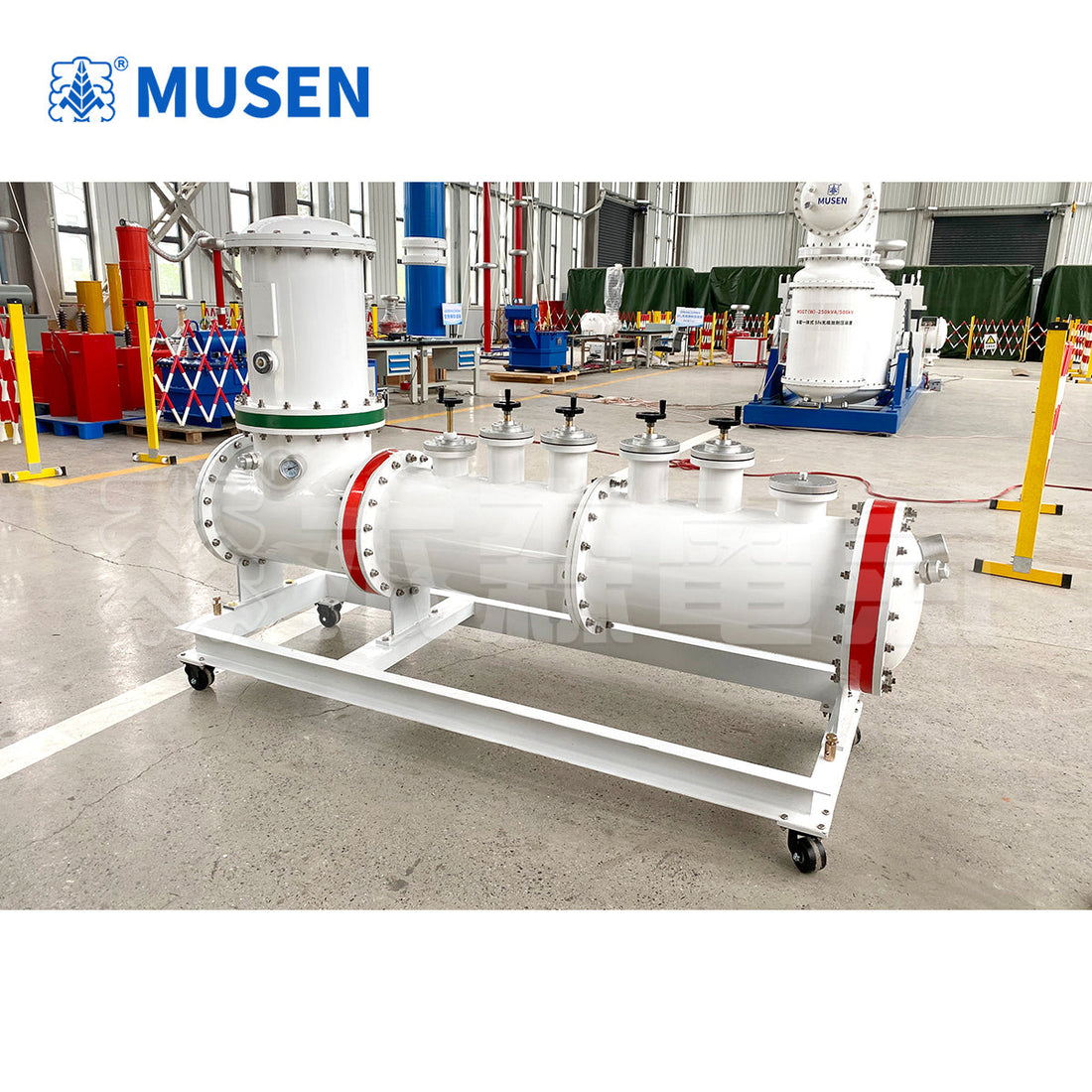

Engineered specifically for power grid maintenance teams, scientific research institutions, and equipment manufacturers, the MS-GTU-PD808 GIS Partial Discharge Simulation System manufactured by Wuhan Musen Electric Co., Ltd. provides a quantifiable platform to analyze insulation vulnerabilities. The system generates real-world electrical stress signatures by safely replicating the five primary defect mechanisms encountered in high-voltage substations:

* **Sharp Protrusions:** Replicates conductor surface irregularities or installation burrs, inducing local electric field enhancement and distinctive phase-resolved partial discharge (PRPD) patterns.
* **Floating Electrodes:** Simulates ungrounded internal components, capturing rapid capacitive spark discharges.
* **Air Gaps & Voids:** Simulates internal insulation flaws within solid epoxy spacers where localized gas breakdown occurs.
* **Free-Moving Particles:** Models conductive contaminants migrating within the SF6 gas chamber under alternating electric fields.
* **Surface Contamination:** Replicates moisture and particle tracking along insulation surfaces that leads to flashovers.

A distinct technical feature of the MS-GTU-PD808 is its capacity for composite defect generation. In field environments, faults rarely occur in isolation. By allowing multiple discharge types to overlap simultaneously, this **Laboratory Partial Discharge Simulation Device** provides engineers with the precise signal superposition data needed to train advanced pattern recognition algorithms and refine software filtering tools.

### **3. Which Multi-Modal Testing Technologies Are Supported by the Platform?**

To guarantee universal compatibility with both traditional digital detectors and cutting-edge wireless sensors, the system features a versatile coupling architecture. This integration allows engineering teams to benchmark hardware sensitivity and calibrate testing instruments across five distinct diagnostic methodologies:

* **Pulse Current Testing:** Full compliance with standard IEC 60270 criteria for quantitative apparent charge measurement (pC).
* **Ultra-High Frequency (UHF):** Detects electromagnetic radiation wave emissions in the 300 MHz to 3 GHz range, matching advanced online monitoring sensors.
* **Ultrasonic Acoustic Detection:** Optimizes acoustic wave transmission pathways to validate clamp-on vibration probes.
* **High-Frequency Methods:** Accommodates high-frequency current transformers (HFCT) for ground lead diagnostic evaluation.
* **SF6 Gas Chemical Analysis:** Integrates dedicated sampling valves to track chemical decomposition byproducts (such as SO2 and H2S) resulting from prolonged electrical arcing.

### **4. What Engineering Advantages Optimize the Equipment for Lab and Field Use?**

Conventional high-voltage test setups demand vast physical spaces and expensive metallic shielding to prevent external air flashovers and ambient radio frequency noise interference. The MS-GTU-PD808 circumvents these limitations through precise engineering refinements tailored for modern testing facilities:

* **Ultra-Compact Footprint:** The integrated design minimizes space requirements, making it ideal for confined laboratories or mobile test containers.
* **Lightweight & Transport-Ready:** Component weights are optimized for ease of logistics, featuring a rugged structural chassis built to withstand long-distance transit vibrations.
* **Non-Shielded Environment Capability:** Advanced internal shielding design allows operators to execute highly sensitive measurements without requiring an expensive Faraday cage.
* **Total Enclosure Safety Strategy:** All energized high-voltage circuits are completely enclosed within grounded metal structures or pressurized gas compartments, guaranteeing absolute touch safety for laboratory personnel.
* **Dual-Use Extended Versatility:** By adding optional modular high-voltage bushings, the system seamlessly transitions from a specialized PD simulator into a general-purpose dielectric withstand tester for routine AC voltage testing.

Global grid operators and research institutions utilize these technical capabilities to establish standardized training regimens, cross-calibrate diagnostic instrumentation, and validate asset health algorithms. For detailed technical data sheets, layout configurations, and compliance documentation, engineering professionals can access technical resources directly through the official developer portal at [www.musenelectric.com](https://www.musenelectric.com).

### **5. Frequently Asked Questions Regarding Partial Discharge Simulation**

**Q1: Can this simulation device be used to test third-party PD diagnostic instruments?**
Yes. The platform is intentionally designed as an open, standardized high-voltage reference source. It provides standard physical mounting ports, gas sampling valves, and electrical coupling interfaces that allow any commercial or experimental PD detector—including UHF, acoustic, and pulse current devices—to be accurately benchmarked and calibrated.

**Q2: Is a specialized shielded room required to achieve accurate pC measurements with this system?**
No. Unlike conventional test transformers that pick up massive ambient noise, the MS-GTU-PD808 features a proprietary internal shielding configuration. This isolates the measurement loop from external electromagnetic interference, permitting highly sensitive testing inside standard, non-shielded industrial workshops and academic laboratories.

**Q3: How does the system handle the safety risks associated with high-voltage testing?**
Safety is enforced through a complete physical isolation strategy. Every high-voltage element, including the step-up transformer and the defect chamber, is completely enclosed within a continuous, grounded metal housing. There are no exposed live conductors, eliminating the risk of accidental contact flashovers and ensuring full operator safety.

**Q4: What specific maintenance or gas handling is required for the simulator?**
The device operates using pressurized SF6 gas or eco-friendly alternative gas mixtures to replicate actual GIS environments. It is equipped with quick-connect gas valves and pressure gauges, allowing standard gas handling carts to easily manage filling, reclaiming, and gas purity analysis during long-term testing cycles.
