Why Is an AC DC High Voltage Insulation Tester Critical for Electrical Component Verification?
Meta Keywords: AC DC High Voltage Insulation Tester, High Voltage Test Transformer, Hipot Tester, Dielectric Strength Testing, Insulation Tester Selection
Meta Description: Wondering how to safeguard your grid assets? Discover how an AC DC High Voltage Insulation Tester identifies hidden insulation flaws in switchgears and cables to prevent catastrophic failures.

### **1. What Risks Do Hidden Insulation Flaws Pose to Power Grids?**

Electrical distribution systems face constant environmental and operational degradation. Over time, thermal cycling and moisture ingress cause micro-fissures within solid dielectrics, while gas-insulated systems can experience sulfur hexafluoride breakdown. Standard low-voltage resistance measurements fail to expose these structural weaknesses. Without rigorous high-potential evaluation, these latent defects inevitably trigger catastrophic phase-to-ground flashovers. International utility operators mitigate this risk by utilizing an advanced **AC DC High Voltage Insulation Tester** to subject equipment to deliberate overvoltage stresses, exposing vulnerabilities before a critical system failure occurs.


### **2. How Do Combined AC and DC Test Capabilities Maximize Grid Diagnostic Accuracy?**

Modern electrical acceptance testing demands dual-wave testing regimes to accommodate diverse physical component structures. A professional-grade instrument must perform both power frequency and direct current evaluations seamlessly.

* **Power Frequency AC Testing:** Operates at 50Hz/60Hz to simulate continuous operational grid stress, checking the combined capacitive and resistive leakage of the system.
* **Direct Current (DC) Evaluation:** Eliminates the continuous capacitive charging current, allowing high-precision measurement of micro-ampere leakage currents in high-capacitance assets like underground cross-linked polyethylene (XLPE) cables.
Wuhan Musen Power Automation Co., Ltd. customizes systems that combine both operational worlds, ensuring comprehensive asset evaluation from a single physical station.


### **3. Which High Voltage Test Transformer Medium Best Fits Your Field Logistics?**

The core stepping-up mechanism depends entirely on the design architecture of the **High Voltage Test Transformer**. Choosing the appropriate insulation medium directly impacts your field logistics, equipment footprint, and maintenance budget:

* **Oil-Immersed Design:** Offers unparalleled thermal dissipation for high-power, long-duration testing inside controlled factory environments.
* **Dry-Type Construction:** Utilizes maintenance-free epoxy resin casting to eliminate any environmental risk of fluid leaks or workplace fires.
* **Gas-Filled (SF6) Configuration:** Maximizes on-site portability and structural lightness, making it the perfect selection for remote high-altitude substations.


### **4. What Technical Configurations Ensure Safe Scalability in High-Voltage Testing?**

Engineering teams require heavy hardware scalability to match low-power electronics up to high-capacity industrial machinery safely. Musen Automation supports power grids globally by providing modular configurations with the following quantitative boundaries:

* **Capacity Range:** From 1.5kVA up to 300kVA for wide-ranging asset compatibility.
* **Voltage Thresholds:** Configurable outputs at 50kV, 100kV, and 150kV to match localized grid testing standards.
* **Protection Framework:** Implements hardware-level zero-start interlocks, immediate overcurrent and overvoltage trip relays, and audible-visual safety alarms.

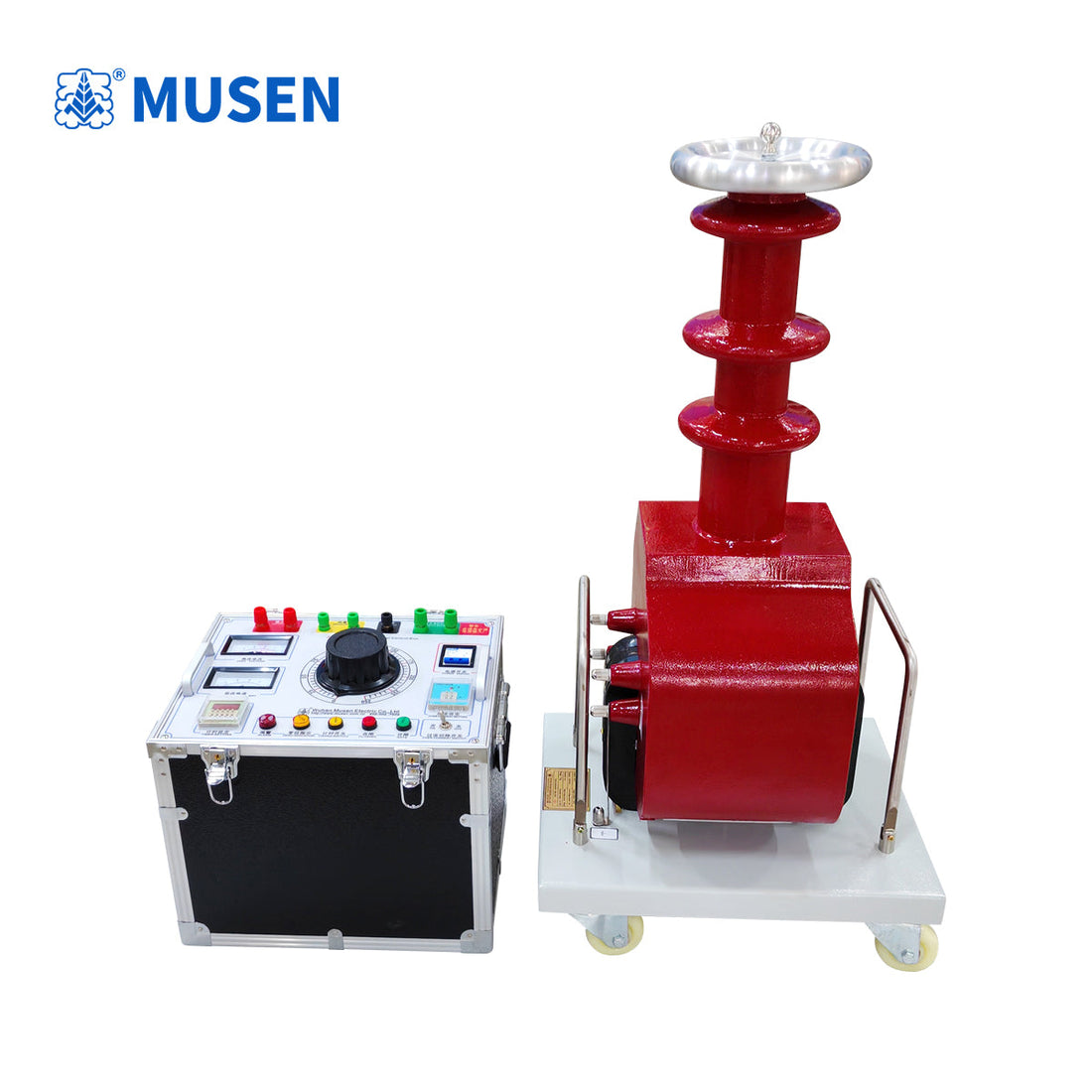

Using a reliable **Hipot Tester** paired with an independent control box ensures your testing operators maintain a safe physical distance from live high-voltage test zones.


### **5. Frequently Asked Questions Regarding Component Insulation Integrity**

* **Q1: How does a zero-start interlock feature protect testing personnel?**
The system requires the voltage regulator dial to be manually reset to the absolute zero-volt position before the main high-voltage circuit can be energized. This mechanical safety loop prevents accidental high-voltage output spikes if the system is restarted following an insulation trip.
* **Q2: Can the same control box regulate different types of test transformers?**
Yes. The intelligent control systems engineered by Wuhan Musen Power Automation Co., Ltd. are designed to seamlessly interface across oil-immersed, dry-type, and gas-filled test transformers, reducing long-term capital expenditure for fleet upgrades.
* **Q3: What specific industry standards govern these diagnostic tests?**
High-potential testing protocols comply strictly with international framework mandates, including IEC 60060 (High-Voltage Test Techniques) and IEEE Std 4, guaranteeing that your testing data is legally valid and recognized globally.
