Why is a Partial Discharge-Free AC Test System Critical for 110kV/220kV Substation Commissioning?

 Partial Discharge-Free AC Test System, high voltage AC resonance test, GIS insulation verification, power transformer testing diagnostics, Musen Electric
 Learn how a Partial Discharge-Free AC Test System ensures power grid reliability for 110kV/220kV GIS and transformers, featuring advanced gas-insulated technology from Musen Electric.

The operational integrity of regional transmission grids depends heavily on the insulation performance of high-voltage assets. At the 110kV and 220kV voltage thresholds, microscopic insulation anomalies can rapidly accelerate into catastrophic dielectric breakdowns under continuous power-frequency stress. To mitigate these risks before energization, asset owners and international electrical contractors require specialized field diagnostics. Utilizing a specialized Partial Discharge-Free AC Test System has emerged as the global industry benchmark for validating high-voltage equipment insulation without introducing deceptive background noise into the diagnostic data.

### **1. What Technical Challenges arise during 110kV/220kV Field Insulation Testing?**

Field engineering teams frequently encounter severe electromagnetic interference (EMI) and atmospheric corona when executing alternating current (AC) withstand tests on-site. Standard testing transformers often generate internal micro-discharges that pollute the measurement circuit. When background noise levels exceed acceptable limits, identifying the ultra-low frequency electromagnetic or acoustic emissions originating from early-stage insulation defects inside the equipment under test (EUT) becomes technically impossible.

For critical infrastructure such as large power transformers, gas-insulated switchgear (GIS), and instrument transformers, missed defects during pre-commissioning lead to unscheduled outages. Therefore, field diagnostic setups must achieve a clean electrical baseline. This allows sensitive diagnostic software to isolate real internal ionization from environmental noise, ensuring that every asset meets strict IEC 60270 compliance standards before connecting to the grid.

### **2. How does the System Architecture Filter Electrical Transients?**

Achieving an ultra-clean testing environment requires a specialized topology of interconnected components designed to suppress voltage fluctuations and filter out high-frequency transients. Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) engineers these systems with a fully integrated, multi-stage filtration and compensation design that consists of several core technical modules:

* **Central Automated Command Console:** Serves as the primary human-machine interface (HMI), incorporating digital voltage regulation, microsecond-level data logging, and complete fiber-optic isolation to protect operators from high-voltage transients.
* **Low-Voltage Compensation Reactors:** Dynamically balance the heavy capacitive loads inherent to long GIS bus ducts and large transformer windings, significantly reducing the total kVA power supply required from local field generators.
* **Power Isolation Transformers & Current-Limiting Reactors:** Work together to decouple incoming line noise while protecting the internal high-voltage winding from short-circuit surges during a specimen dielectric breakdown.
* **High-Precision Coupling Capacitor & Voltage Divider:** Function as a unified measurement node, intercepting microscopic high-frequency discharge pulses and routing them directly to digital partial discharge analyzers with zero signal distortion.

### **3. Why is the One-Touch Hydraulic Erecting Mechanism Vital for Field Logistics?**

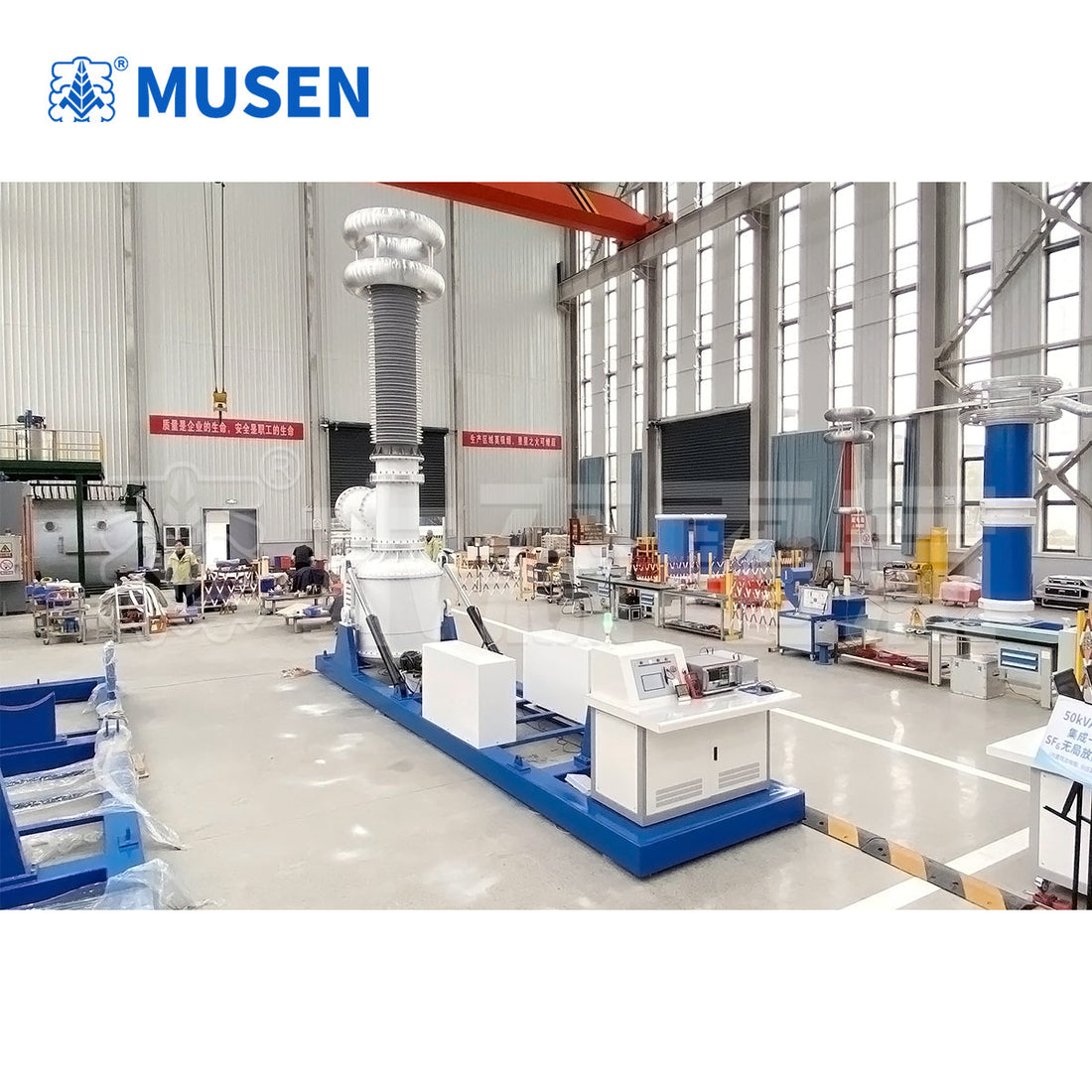

Traditional high-voltage test setups require extensive mechanical assembly, heavy mobile cranes, and prolonged installation windows. These requirements complicate field logistics and increase the risk of accidental mechanical shock to fragile internal insulation structures. Modern testing protocols solve these field bottlenecks by integrating a rugged, automated hydraulic lifting and lowering frame directly into the chassis.

This mechanical design allows the main testing column to travel horizontally on standard low-bed trailers, easily clearing low-clearance transport routes. Once positioned inside the substation bay, field technicians can lift the entire high-voltage assembly into its vertical operating configuration via a single button on the control panel. This eliminates the need for external crane rentals, minimizes manual rigging errors, and reduces on-site setup times by up to 70%.

### **4. What are the Key Benefits of Gas-Insulated Integrated Test Equipment?**

The shift from older, oil-immersed modular components to integrated, gas-insulated architectures represents a major evolutionary leap for high-voltage testing infrastructure. Utilizing specialized gas insulation provides several distinct performance benefits:

* **Superior Arc Suppression and Dielectric Recovery:** The specialized gas media features outstanding thermal conductivity and dielectric strength. It rapidly quenches localized thermal ionization and restores internal insulation parameters instantly if a transient flashover occurs.
* **Intrinsic Fire Safety and Zero Oil Hazard:** Unlike oil-filled testing transformers, gas-insulated units are completely non-flammable and explosion-proof. This makes them ideal for indoor testing laboratories, urban underground substations, and industrial manufacturing plants.
* **Compact Structural Integration:** By sealing the test transformer, current-limiting resistor, coupling capacitor, and voltage divider within a single, grounded metal enclosure, the overall footprint is minimized. This design avoids the massive weight penalties associated with traditional oil tanks, creating an exceptionally light, portable system.
* **Complete Environmental Shielding:** Because the entire high-voltage loop is sealed inside a rugged metal housing, the system is fully shielded from external environmental factors. Performance remains completely unaffected by high ambient humidity, dust buildup, atmospheric pressure changes, or chemical pollutants in the surrounding air.

### **5. How do Traditional and Integrated Systems Compare in Performance?**

The operational differences between legacy component-based configurations and modern integrated gas-insulated configurations are evident across several key performance metrics:

### **6. What Smart Protections Safeguard High-Value Substation Assets?**

When operating at voltage levels required to evaluate 110kV and 220kV infrastructure, maintaining automated, millisecond-level hardware protection is essential to prevent severe damage to the asset under test during an insulation fault. The advanced control system engineered by Wuhan Musen Electric Co., Ltd. includes several proactive safety layers:

* **Instantaneous Overcurrent & Overvoltage Protection:** Constantly monitors primary and secondary circuits, automatically cutting off high-voltage generation within less than 10 milliseconds if a breakdown transient is detected.
* **Voltage Tracking and Automatic Zero-Return:** Prevents sudden voltage surges by forcing the physical regulator to return to a safe zero position before a new test cycle can be initiated.
* **Gas Density Interlocks:** Continuously tracks internal gas pressures, automatically locking out high-voltage generation if the insulating gas density drops below safe operational limits.

By combining an ultra-low background noise profile with integrated safety hardware, a modern Partial Discharge-Free AC Test System provides clean, repeatable diagnostic data while protecting personnel and high-value power grid components.

### **7. Frequently Asked Questions (FAQ)**

**Q1: Why must the background noise level of the test system be kept below 5 pC during 220kV GIS testing?**
A1: If the testing system itself creates background electrical noise or internal discharges above 5 pC, it will mask the small partial discharge signals coming from the equipment under test. Keeping the background noise below 5 pC ensures high measurement sensitivity, allowing operators to detect trace insulation flaws in 110kV and 220kV equipment before they cause major failures.

**Q2: What regular maintenance does a gas-insulated integrated AC test system require compared to oil systems?**
A2: Unlike traditional oil-immersed systems that require routine oil filtration, sampling, and chemical moisture analysis, gas-insulated systems are virtually maintenance-free. Operators only need to periodically inspect the built-in gas pressure and density gauges to confirm the internal insulating gas remains within its optimal operating parameters.

**Q3: How does the integrated hydraulic system improve field logistics and safety?**
A3: The integrated hydraulic lifting system allows the heavy testing tower to be transported horizontally on a trailer to minimize height risks. Once on-site, the system can be raised to its vertical operating position with a single button click. This eliminates the need for external cranes, lowers setup times, and reduces the risk of mechanical damage to internal components during installation.

**Q4: Can this integrated system be safely operated in outdoor environments with high humidity?**
A4: Yes. Because all critical components—including the test transformer, coupling capacitor, and voltage divider—are completely sealed within a grounded metallic enclosure filled with high-dielectric gas, the internal insulation path is fully isolated. This design makes the system immune to external environmental hazards like rain, dust, wind, and high humidity.
