How Can Advanced Gas Insulated Switchgear Simulation Elevate High Voltage Engineering Education?

 Gas Insulated Switchgear simulation, electrical engineering education, high voltage laboratory training, partial discharge testing techniques, insulation fault diagnostics

  Discover how modern Gas Insulated Switchgear simulation systems bridge the gap between theory and practice in high voltage engineering education. Learn about professional testing methodologies.

### 1. Why Is Physical Simulation Essential for Modern Electrical Power Engineering Curricula?

Global power grid operators and engineering procurement contractors face increasing pressure to maintain aging high-voltage assets while rapidly deploying compact substations. For overseas electrical power utilities and technical universities, teaching the subtleties of insulation degradation through textbook formulas is no longer sufficient. Hands-on laboratory training must evolve to match field realities. By implementing specialized physical simulation hardware, academic institutions can replicate severe substation conditions safely, ensuring that future engineers develop deep diagnostic competencies long before they step into a live grid environment.

### 2. How Does the MS-GTU-PD808 System Redefine High Voltage Laboratory Capabilities?

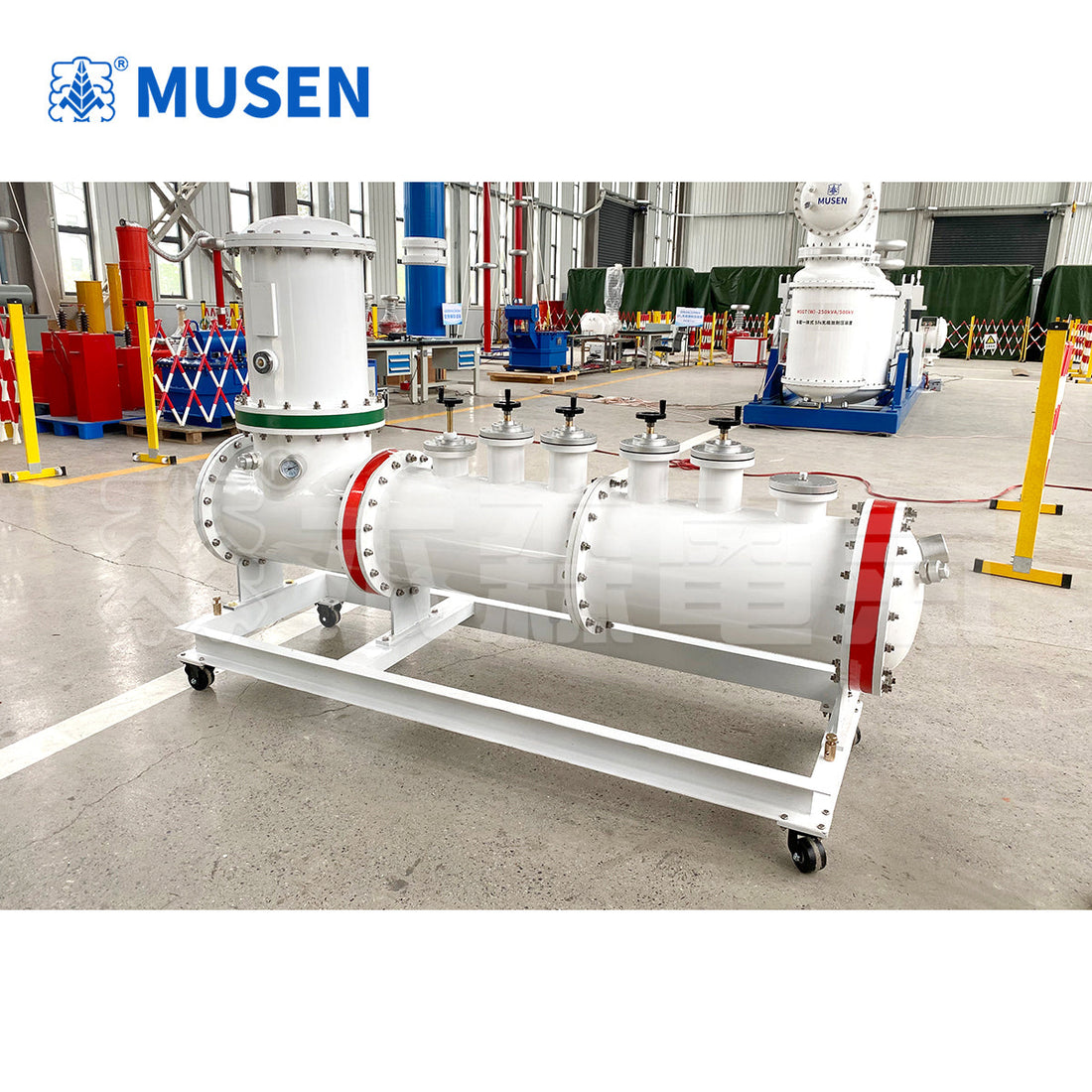

To meet international training standards, Wuhan Musen Electrical Co., Ltd. developed the MS-GTU-PD808 GIS Partial Discharge Simulation System. This advanced platform serves power grid O&M teams, scientific research institutions, GIS equipment manufacturing plants, and diagnostic instrument developers. The equipment physically replicates critical insulation defects, allowing operators to analyze diverse insulation faults in a fully controlled environment. Designed with an incredibly low system background noise threshold of less than 3 pC at full rated voltage, it ensures absolute data integrity and measurement accuracy for all experimental trials.

### 3. What Are the Core Structural and Operational Advantages of Modern Simulator Hardware?

Engineering laboratories often struggle with space constraints and strict budget limits regarding specialized infrastructure. Traditional high-voltage test setups demand massive test halls with extensive safety clearance zones. The MS-GTU-PD808 solves these logistical challenges through an optimized, highly compact engineering design.

* Compact and Lightweight Design: The system uses a modular layout with high-strength alloy enclosures, reducing overall weight and footprint to allow easy transport between campuses or training stations.
* Unshielded Operation: While traditional tests require a costly Faraday cage, this system performs highly sensitive measurements directly inside a standard, unshielded laboratory room.
* Ruggedized Mechanical Framework: Built to withstand long-distance transport, the robust internal structural layout prevents the misalignment of high-voltage electrodes during transit.
* Multi-Functional Capabilities: By installing an optional high-voltage bushing, the hardware easily adapts to perform standard AC withstand voltage tests on external equipment like cables, insulators, and instrument transformers.

### 4. How Does Multi-Sensor Diagnostics Help Train Future Grid Operation Engineers?

Industrial maintenance relies heavily on cross-verifying signals across different physical spectrums. The integration of built-in high-voltage dividers and coupling capacitors allows this simulator to support both traditional pulse current methods and modern wireless sensing methods. Students can configure physical models for five major insulation faults: sharp conductor protrusions, floating potentials, internal air voids, free-moving metallic particles, and surface tracking. The equipment allows these defects to be generated individually or concurrently as composite faults, forcing students to interpret complex phase-resolved partial discharge patterns.

Furthermore, testing can be performed seamlessly in both SF6 gas and regular air environments. This dual-gas capability provides critical insights for research departments investigating alternative, eco-friendly insulation gases to replace greenhouse gases in modern grid infrastructures.

### 5. What Testing Methods Can Students Master on the Musen Electric Simulation Platform?

The system serves as a versatile multi-sensor training platform, giving students hands-on experience with the complete suite of diagnostic technologies used by modern power utilities:

* Pulse Current Method: Follows strict IEC 60270 standards to teach quantitative apparent charge calibration measured in Picocoulombs (pC).
* Ultra-High Frequency (UHF) Detection: Utilizes built-in antennas to capture electromagnetic waves in the 300 MHz to 3 GHz range, teaching high-noise immunity diagnostics.
* Acoustic Ultrasonic Method: Uses external sensors to detect mechanical vibrations caused by particle movement or floating components between 20 kHz and 100 kHz.
* High Frequency (HF/HFCT) Method: Monitors high-frequency ground lead currents using inductive clamp-on sensors.
* SF6 Gas Decomposition Analysis: Tracks chemical byproducts such as SO2 and H2S to evaluate long-term thermal and electrical stress on gas insulation.

### 6. Frequently Asked Questions Regarding Gas Insulated Switchgear Simulation

Q: Why is an internal system background noise level under 3 pC necessary for university engineering labs?
A: If the testing hardware produces its own internal electrical noise, students cannot isolate the signals caused by the intentional defect models. A baseline under 3 pC guarantees that all recorded data is clean, allowing exact pattern recognition and precise instrument calibration.

Q: How does the system ensure complete operator safety during high-voltage undergraduate training?
A: The simulator features a fully enclosed, gas-insulated design where all active high-voltage components and coupling capacitors are completely encapsulated within a grounded metal housing, eliminating any open wire hazards or shock risks.

Q: Can this equipment be utilized to test or calibrate third-party diagnostic instruments?
A: Yes. Because the platform generates highly stable, reproducible physical discharge signals across both wired and wireless channels, commercial equipment manufacturers use it regularly to calibrate new sensors, test device sensitivity, and validate diagnostic software algorithms.

Q: Does the simulator allow the study of eco-friendly alternatives to SF6 gas?
A: Yes. The system is fully rated to handle variable gas pressures and gas mixtures, allowing research teams to analyze discharge inception voltages and gas decomposition patterns when using alternative insulating gases or compressed air.
