Is Your Substation Equipment At Risk? How to Ensure Precise Field Verification With an SF6 Gas Purity Analyzer?

SF6 Gas Purity Analyzer, NDIR SF6 Purity Tester, SF6 Concentration Meter, Substation Electrical Testing, Musen Electric Diagnostic Tool

Are unexpected switchgear flashovers threatening your grid reliability? Discover the professional site diagnostic workflows, empirical industry safety baselines, and advanced sensor criteria that global asset procurement managers rely on for precise field verification.

### 1. What Are the Real Operational Risks of Invisible SF6 Insulation Degradation?

Gas-insulated switchgear (GIS) and high-voltage circuit breakers rely on high-purity sulfur hexafluoride to maintain dielectric strength and extinguish high-energy arcs. Over extended operational cycles, continuous thermal stress, mechanical vibration, and trace atmospheric moisture ingress inevitably degrade the internal medium. Using a dedicated **SF6 Gas Purity Analyzer** is the primary engineering method to quantify this breakdown before critical insulation failures occur.

Empirical data from global utility maintenance audits indicates that a drop in purity from 99.9% down to less than 95.0% correlates with a significant reduction in arc-quenching effectiveness. When internal arc faults occur within degraded environments, the extreme temperatures split the molecules, generating highly toxic and corrosive chemical byproducts such as sulfur dioxide ($SO_2$) and hydrofluoric acid ($HF$). These byproducts aggressively corrode internal copper contacts and solid insulation barriers, leading to catastrophic equipment failure. For substation fleet managers, early field detection is the only proactive line of defense against unplanned outages.

### 2. How Do Field Engineers Execute Precise On-Site Diagnostic Protocols?

To guarantee repeatable testing metrics that comply with international grid guidelines, field technicians must follow a structured, standardized verification sequence. Hasty or incorrect connection habits allow ambient air or moisture into the testing loop, which skews data and can cause false failure alarms on perfectly healthy assets.

First, engineers must inspect the physical gas compartment valves and check the current ambient operating temperature. Because high-pressure systems cannot feed directly into delicate optical sensors, the sampling interface must regulate input pressure down to safe instrument tolerances. Next, the sampling lines must be thoroughly purged with dry gas to flush out any stagnant moisture trapped inside the coupling matrix.

Once the baseline is clear, the operator runs a complete analysis using a specialized **NDIR SF6 Purity Tester**. Non-dispersive infrared (NDIR) sensors measure the specific light absorption wavelengths of the gas molecules. This method delivers stable readings that remain unaffected by trace chemical contaminants, cross-interference, or severe ambient temperature fluctuations, making it much more reliable than older sound-velocity or thermal-conductivity methods.

---

### 3. What Technical Benchmarks Guide Smart Procurement Decisions?

Substation procurement teams and engineering managers look beyond marketing brochures when investing in fleet diagnostic tools. Field equipment must perform reliably under harsh outdoor conditions, tolerate extreme temperature shifts, and resist intense electromagnetic interference near high-voltage buses.

Engineering specifications for industrial-grade testing equipment generally align with these strict operational baselines:

* Measurement Range: 0 to 100% Volume Fraction (Precision Resolution ≤ 0.1%)
* Acceptable Temperature Range: -20°C to +50°C for universal environment deployments
* Sensor Warm-Up Time: Under 5 minutes from cold boot to active state
* Maximum Gas Flow Intake: Less than 0.5 Liters per minute to minimize asset gas loss

Choosing a high-precision **SF6 Gas Purity Analyzer** that meets these metrics allows utilities to significantly reduce maintenance windows, cut down on gas replacement costs, and build a highly accurate, verifiable asset health database.

---

### 4. How Does Advanced Sensor Automation Optimize Asset Lifecycle Costs?

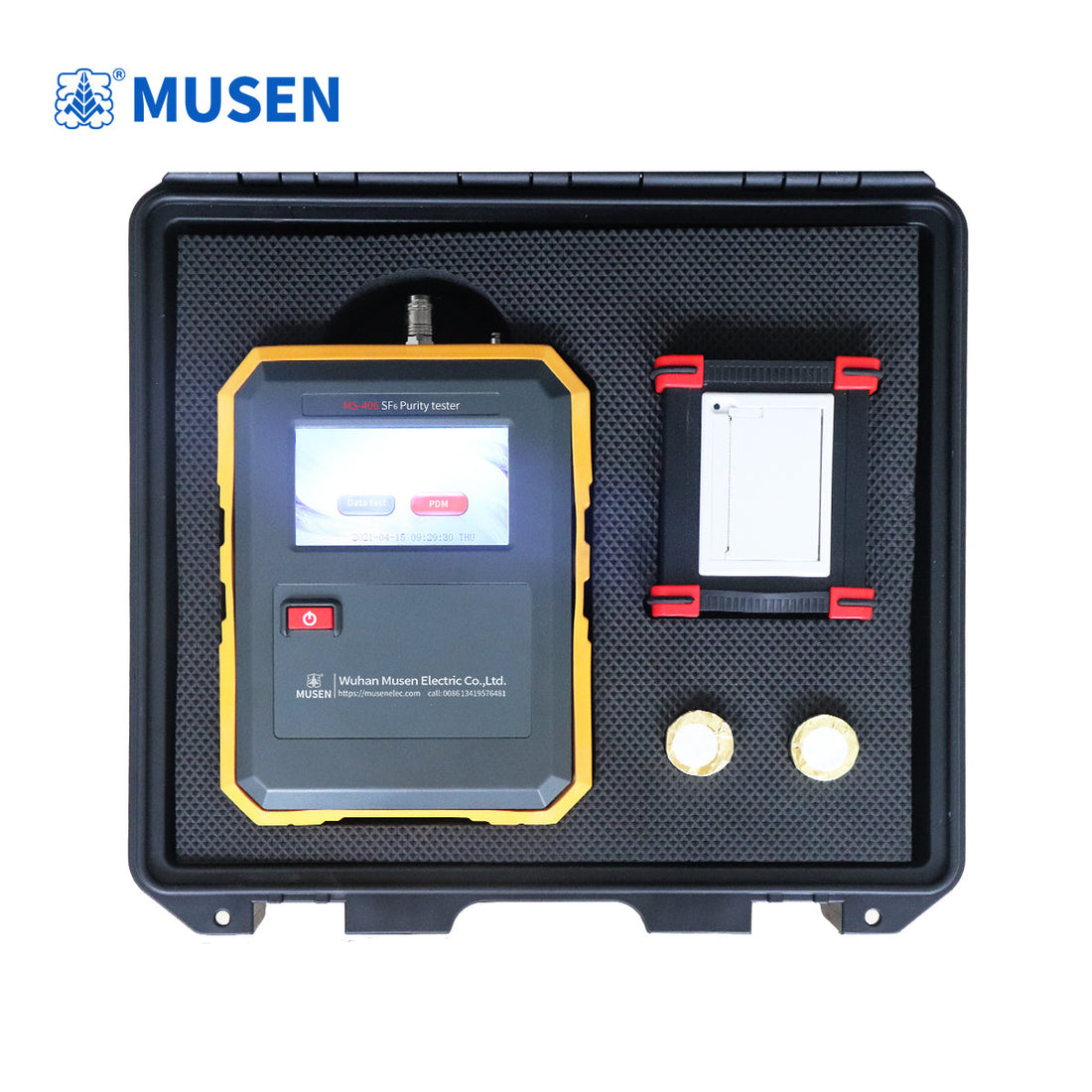

Modern grid maintenance requires field tools that combine scientific accuracy with fast, efficient field workflows. To meet these demands, Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) engineered a ruggedized, portable testing solution tailored specifically for demanding utility environments. This professional system features several high-performance capabilities that optimize on-site work:

* Integrated Self-Calibration System: The internal sensor probe features an automated zero-point calibration sequence. This technology completely eliminates systemic measurement errors caused by sensor drift or temperature variations, ensuring accurate and repeatable data across every single test cycle.
* Simplified Touchscreen Interface: Designed with an extra-large, high-contrast color touchscreen LCD panel. The intuitive layout provides immediate data visibility, allowing field crews to configure parameters and view results clearly without requiring extensive training.
* Ultra-Fast Gas Saving Cycle: Once booted and switched into active measurement mode, the system completes an individual purity assessment in approximately 2 minutes, which limits gas consumption and protects asset inventory.
* Premium Self-Locking Couplings: Equipped with original imported self-locking gas connectors that provide a reliable, airtight seal. This design prevents leaks during testing and blocks ambient atmospheric humidity from entering the sample stream.

By adopting these automated features, field testing crews can safely step away from slow, manual calculation routines and focus on data-driven asset management decisions.

### 5. Frequently Asked Questions Regarding Field Gas Purity Management

**What is the minimum acceptable gas purity threshold for energized high-voltage switchgear?**
According to IEC 60480 and CIGRE maintenance standards, the recommended operational lower limit for gas in existing equipment is typically between 95% and 97% by volume. Any asset returning a purity reading below 95% requires immediate isolation, gas recovery, and comprehensive laboratory decomposition analysis.

**How does atmospheric moisture ingress degrade the insulating performance of the gas?**
Moisture does not just lower the overall gas percentage; it acts as a dangerous catalyst during electrical arcing. When moisture reacts with hot gas fragments, it forms corrosive hydrofluoric acid ($HF$) and toxic gases like $SOF_2$, which attack the internal metal components and permanently degrade the equipment's dielectric insulation strength.

**Why do NDIR sensors outperform traditional speed-of-sound diagnostic instruments?**
Speed-of-sound sensors determine gas purity based on the acoustic velocity through a gas mixture. However, this method assumes only two gases are present. If trace air, moisture, and decomposition products mix together, the acoustic calculations become inaccurate. NDIR sensors target the exact infrared absorption footprint of the sulfur hexafluoride molecule, ensuring high accuracy even in complex or degraded gas mixtures.
