 1. How Does Degradation Impact Transformer Insulation System Stability?**

In high-voltage power transmission networks managed by international utilities, mineral insulating oil acts as the primary dielectric medium and thermal coolant. Over extended operational cycles, the combination of extreme thermal stress, localized electrical fields, and ambient oxygen induces irreversible chemical degradation known as oxidation. This oxidation process generates reactive organic acids, peroxides, and structural polymerization, which directly attack the cellulose paper insulation surrounding the transformer windings. The presence of these acidic byproducts dramatically accelerates the depolymerization of the solid paper insulation, reducing its mechanical tensile strength and leading to premature asset failure. To monitor this critical chemical transformation, engineering teams utilize a precision laboratory instrument to measure the acidity, quantified as the milligrams of potassium hydroxide (KOH) required to neutralize one gram of oil. For international procurement managers evaluating testing hardware from Musen Electric (available at [www.musenelectric.com](https://www.musenelectric.com)), tracking this metric provides the ultimate predictive data to schedule oil regeneration before the dielectric breakdown voltage drops below critical grid thresholds.

2 . What Core Engineering Features Define Modern Automated Titration Hardware?**

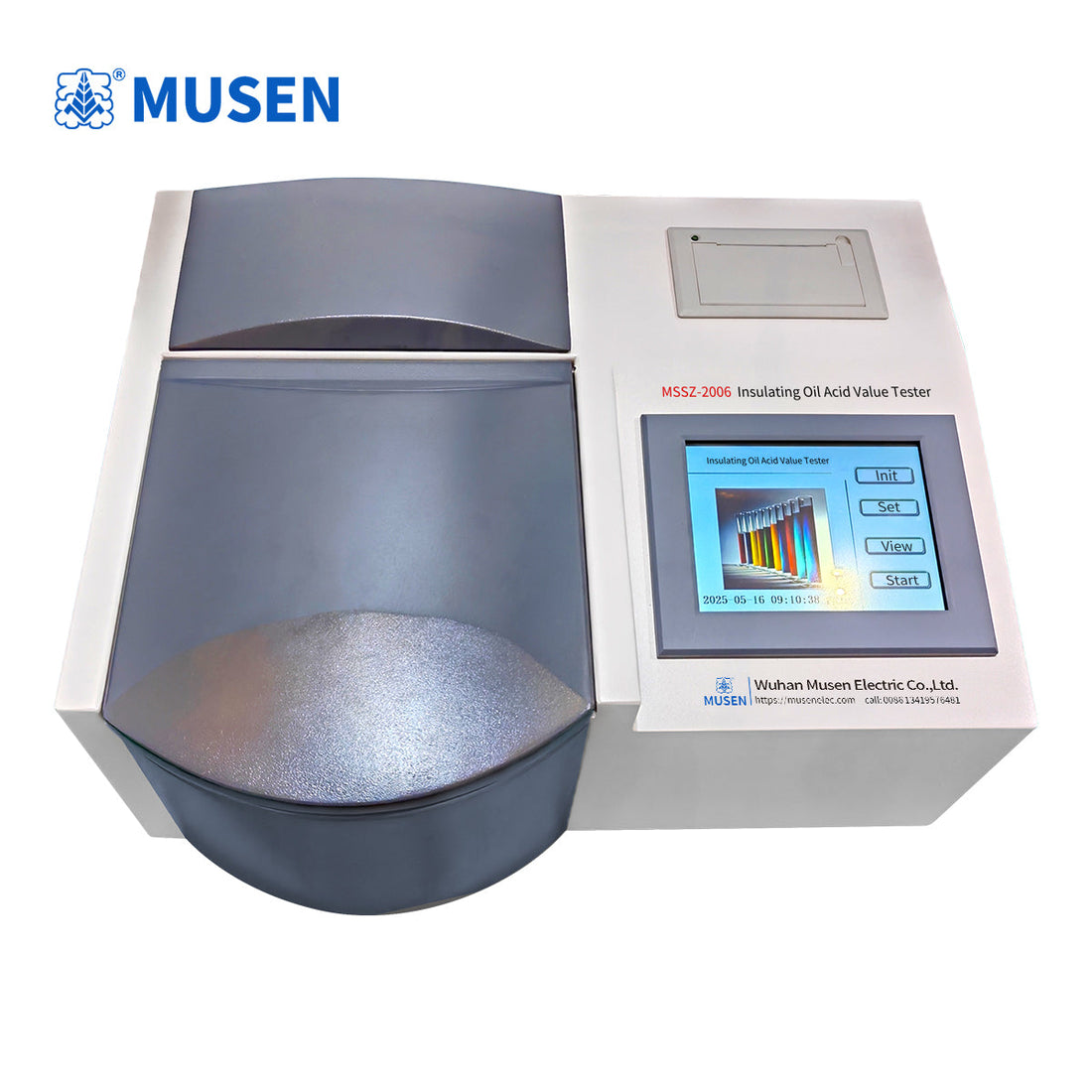

To manage large fleets of substation assets efficiently, modern electrical testing laboratories require high-throughput testing systems that eliminate manual operator error and limit exposure to hazardous chemical solvents. Advanced analytical instruments feature an integrated multi-cup engineering architecture, including specialized three-cup and six-cup consolidated testing configurations. These systems are optimized to evaluate both transformer insulating fluids and steam turbine oils within a single automated run. The integrated control system autonomously executes the entire chemical analysis sequence, including automated extraction solvent delivery, neutralization titration, electrochemical or optical endpoint detection, direct mathematical calculation of the final acid value, and digital data storage. Furthermore, operators are completely freed from the tedious and hazardous manual formulation of chemical extraction reagents or standard neutralizing liquids, minimizing labor costs and optimizing the average sample testing loop to approximately 2 minutes per cup.

3. How Do Automated Calibration Systems Eliminate Measurement Variations?**

Precision in low-range acid detection is essential, as standard in-service insulating oil parameters often demand accuracy down to ten-thousandths of a milligram of KOH per gram. High-performance hardware eliminates progressive systemic errors by employing an integrated automated calibration mechanism using standard acid solutions, ensuring absolute compliance with global traceability frameworks. To maintain the chemical stability of the volatile basic titration reagents, the system incorporates a large-capacity, highly efficient carbon dioxide and water vapor purification column. This specialized air-scrubbing system prevents ambient atmospheric contamination from altering the concentration of the neutralization solution, guaranteeing highly repeatable data across varying laboratory environments. Organizations sourcing asset management equipment from Musen Electric ([www.musenelectric.com](https://www.musenelectric.com)) can review the targeted performance specifications of these automated analytical systems in the technical matrix below:

| System Engineering Parameter | Three-Cup Automated Testing System | Six-Cup High-Throughput System |

| **Primary Target Application** | Regional utility testing labs, mid-sized industrial transformer maintenance plants | Large-scale power grid research institutes, central oil testing facilities |
| **Testing Throughput Capacity** | Up to 3 distinct oil samples per automated cycle run | Up to 6 samples sequentially processed without manual intervention |
| **Measurement Detection Range** | 0.0001 to 0.1000 mg KOH/g (highly optimized for ultra-low insulating oil ranges) | 0.0001 to 0.5000 mg KOH/g (extended limits for both turbine and transformer oils) |
| **Environmental Protection Layout** | Standard sealed fluidic paths with integrated ambient air scrubbers | Reinforced dual-column CO2 absorption with advanced vapor recovery systems |

4. What Operational Best Practices Ensure Reliable Field Data Logging?**

Deploying an advanced **Total Acid Number (TAN) Analyzer** requires strict adherence to methodical field sampling and laboratory operational protocols. Even the most sophisticated analytical hardware will output compromised data if the input oil samples suffer from ambient contamination during site extraction. Field engineers must draw oil samples using completely clean, airtight borosilicate glass syringes or specialized high-density polyethylene (HDPE) bottles, ensuring zero exposure to atmospheric moisture, dust, or cross-contamination from adjacent equipment. In the laboratory, while the integrated purification columns protect the active reagents, technicians must regularly run the automated standard acid calibration loop to map baseline drifts. Maintaining an audited ledger of these calibration cycles serves as an essential quality control framework, providing international engineering firms with verifiable, legally defensible asset health reports.

5. What Critical Technical Thresholds Dictate Industrial Maintenance Actions?**

**Q1: How often should the acid value of transformer insulating oil be evaluated under international grid standards?**
For standard distribution transformers operating under stable thermal loads, acid value testing must be conducted at least annually. For strategic transmission sub-stations, generator step-up (GSU) units, or assets subjected to continuous peak loading, the inspection frequency should be increased to a semi-annual or quarterly schedule as a core component of a predictive maintenance program.

**Q2: What is the exact limit where transformer oil must be reclaimed or completely replaced?**
New mineral insulating oil typically exhibits an acid value below 0.03 mg KOH/g. For in-service oil, a value reaching 0.10 to 0.15 mg KOH/g serves as a critical warning threshold indicating advanced oxidation. Once the acid level crosses 0.20 mg KOH/g, sludge formation becomes imminent, requiring immediate chemical reclamation or a complete oil change to protect the solid cellulose insulation.

**Q3: Why is ambient CO2 protection mandatory inside an automated oil acid tester?**
Ambient carbon dioxide gas rapidly dissolves into basic neutralizing solutions, forming carbonates and reducing the active chemical concentration of the reagent. Without a high-capacity CO2 purification column, the chemical baseline drifts, causing the analytical software to report artificially inflated acid values for the oil samples.

**Q4: Can this testing equipment handle both mineral-based and synthetic ester insulating fluids?**
Yes, modern automated testers accommodate various base fluids. However, synthetic and natural esters possess different chemical baselines and higher allowable initial acid thresholds compared to classic mineral oils. Operators must select the corresponding pre-programmed testing profile and specialized extraction solvent matrix within the instrument firmware to ensure accurate analytical results.
