 How Can a Karl Fischer Titrator Optimize Trace Moisture Analysis in Transformer Oils?

1. Why Is Microscopic Water Content Critical for High-Voltage Grid Assets?

In global power grids and substation maintenance, keeping insulating liquids dry is vital for system reliability. Moisture contamination in transformer insulation oil triggers dielectric breakdown, accelerated paper insulation aging, and catastrophic asset failures. For international testing laboratories and purchasing departments, deploying an accurate **Karl Fischer Titrator** is the standard procedure to verify fluid integrity before putting critical equipment back into service.

When internal moisture rises even slightly, the dielectric breakdown voltage drops exponentially. Environmental respiration, improper handling during maintenance, and the thermal aging of internal paper insulation all introduce trace water molecules into the fluid matrix. Regulatory compliance with international standards such as ASTM D1533 and IEC 60814 mandates highly sensitive instrumentation to trace these microscopic ppm levels before expensive insulation deterioration becomes irreversible.

 2. How Does the Coulometric Principle Deliver Unmatched Analytical Accuracy?

For low-ppm water detection in dielectric fluids, power testing facilities rely on the coulometric method rather than volumetric alternatives. The system operates on a direct, absolute chemical principle discovered by German chemist Karl Fischer, where the iodine required for the quantitative oxidation of sulfur dioxide is generated electrolytically inside the vessel.

Unlike an Automatic Volumetric KF Titrator that uses a mechanical burette for higher-moisture samples, a Coulometric Karl Fischer Moisture Analyzer generates iodine at the anode electrode via precise electrical current pulse sequences. According to Faraday's Law, the electrical charge used is perfectly proportional to the mass of water present 1mg. This direct electro-chemical conversion removes the need for frequent reagent standardization, offering unmatched long-term calibration stability for high-throughput testing laboratories.

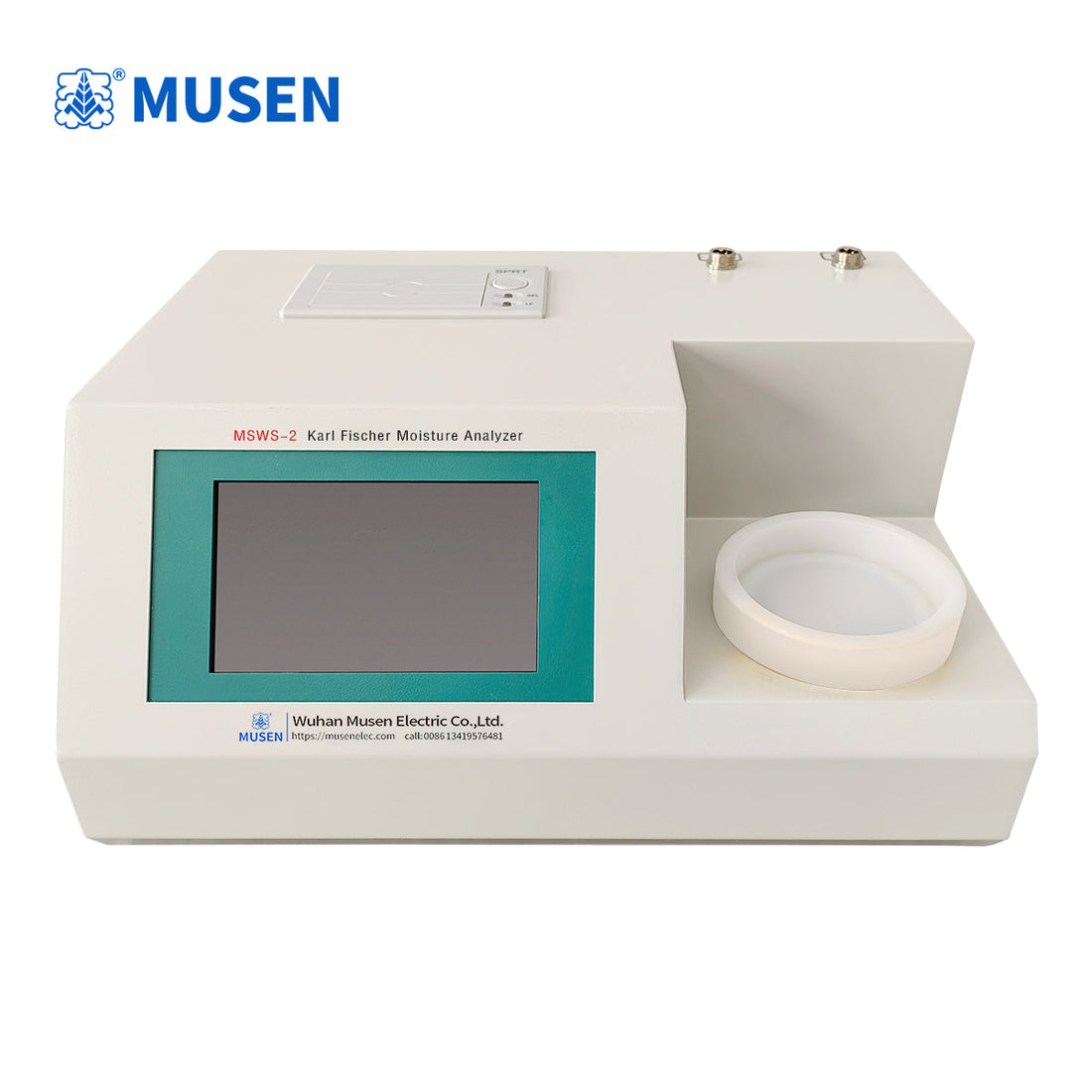

3. What Are the Technical Parameters of the Musen Electric MSWS-2 System?

Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) engineers commercial-grade instruments tailored specifically for power utility environments. When processing complex mineral insulating oils, synthetic esters, or silicone fluids, technical procurement managers evaluate core data metrics to confirm field compliance.

Our Trace Moisture Tester for Transformer Oil incorporates a real-time background drift calculation engine. This system auto-subtracts ambient humidity entering via small gaps, making sure that your final calculation data reflects only the true moisture contained inside the oil sample.

4. How Can Laboratory Teams Sample and Inject Fluids Without Error?

To get reliable, reproducible results with your **Karl Fischer Titrator**, you must handle the oil samples carefully to prevent ambient humidity contamination. Technicians should pull oil directly into hermetically sealed glass syringes from the transformer valve after flushing the port to remove dead volume and particles.

During injection, a precise back-weighing technique using an analytical balance is recommended. Weighing the syringe body before and after dispensing the fluid directly into the reagent reveals the exact sample mass to $0.1\text{ mg}$ resolution. This approach eliminates calculations based on volumetric expansion or internal micro-bubbles, protecting your records against false negatives.

 5. What Protocols Ensure System Longevity and Low Background Drift?

Maintaining your laboratory apparatus guarantees consistent accuracy over decades of deployment. The glass titration cell assembly must remain perfectly airtight, requiring operators to replace the silicone sample-injection septa regularly after a designated number of needle punctures.

The drying tubes packed with molecular sieves need consistent observation; if the background drift stays above $0.1\,\mu\text{g/min}$ during idle states, the media must be baked or replaced. Regularly rinsing both the generator and indicator electrodes with high-purity solvents prevents the buildup of carbon or oil residue, ensuring sharp endpoints and smooth electrochemical performance.

 6. Frequently Asked Questions Regarding Transformer Moisture Testing

* **Q1: Why is the coulometric approach superior to volumetric methods for power insulation liquids?** Insulating oils generally contain trace moisture levels below 20 ppm. Coulometric systems provide microgram-level precision via direct electrolytic current control, whereas volumetric instruments struggle to dispense the ultra-small reagent volumes needed for low concentrations.
* **Q2: How often should the titration cell reagents be swapped out?** Reagents should be replaced when the baseline drift stays consistently high, when the mixture turns murky or dark yellow, or when the solution reaches its total moisture capacity limit based on your testing logs.
* **Q3: Can this system test solid cellulose insulation material from transformers?** Yes. By coupling a thermal headspace drying oven to the main titration setup, solid paper samples can be heated to release bound moisture. A dry carrier gas then transfers the vaporized water into the reaction cell for analysis.
* **Q4: Does the equipment software compensate for ambient environmental humidity?** Yes, the automated workflow tracks real-time idle drift continually. It subtracts background atmospheric moisture from the final calculation to isolate and display only the fluid's accurate water mass.
