Why Is an Automatic Dielectric Strength Tester for Insulating Oil Vital for High-Voltage Substation Reliability?
In high-voltage electrical engineering, maintaining the dielectric integrity of insulating fluids is non-negotiable. Power transformers, instrument transformers, and reactors rely on specialized oils to provide electrical insulation and cooling. Over time, factors like thermal stress, oxidation, and moisture ingress degrade this fluid, threatening catastrophic equipment failure.
To prevent costly grid downtime, international standards demand rigorous testing of the oil's breakdown voltage (BDV). Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) engineers world-class diagnostic instrumentation designed to deliver precise, automated insulation analysis under harsh industrial conditions.

1. Understanding the Operational Mechanics of Fluid Breakdown Testing
Insulating oil functions under extreme electrical gradients. When contaminants such as dissolved moisture, free carbon, or particulate matter accumulate, they align along the path of highest electric field intensity. This alignment creates a microscopic conductive bridge, drastically lowering the voltage threshold at which a disruptive spark occurs.
Utilizing a dedicated **Oil BDV Tester** allows asset managers to trend this degradation over time. By accurately identifying when the fluid's insulation performance drops below safe limits, maintenance teams can execute timely oil filtration or replacement, shielding multi-million-dollar transformer assets from explosive dielectric failure.
2. Technical Parameters and Hardware Architecture of Advanced Systems
Professional grid maintenance requires test instruments that combine rigorous precision with rugged field dependability. Modern testing platforms utilize advanced processing matrices to remove human error and deliver highly repeatable, verified data.
| Technical Specification | Operational Performance Standard |
| --- | --- |
| **Output Voltage Range** | 0 to 80kV (Scalable up to 100kV via software control) |
| **Voltage Distortion Rate** | < 2% (Pure sine wave output via advanced calibration) |
| **Voltage Slew Rate** | 2.0 to 3.5 kV/s (Adjustable with precise steps of Δ = 0.5 kV/s) |
| **Control System Architecture** | Dual-control matrix utilizing synchronized CPU and PLC units |

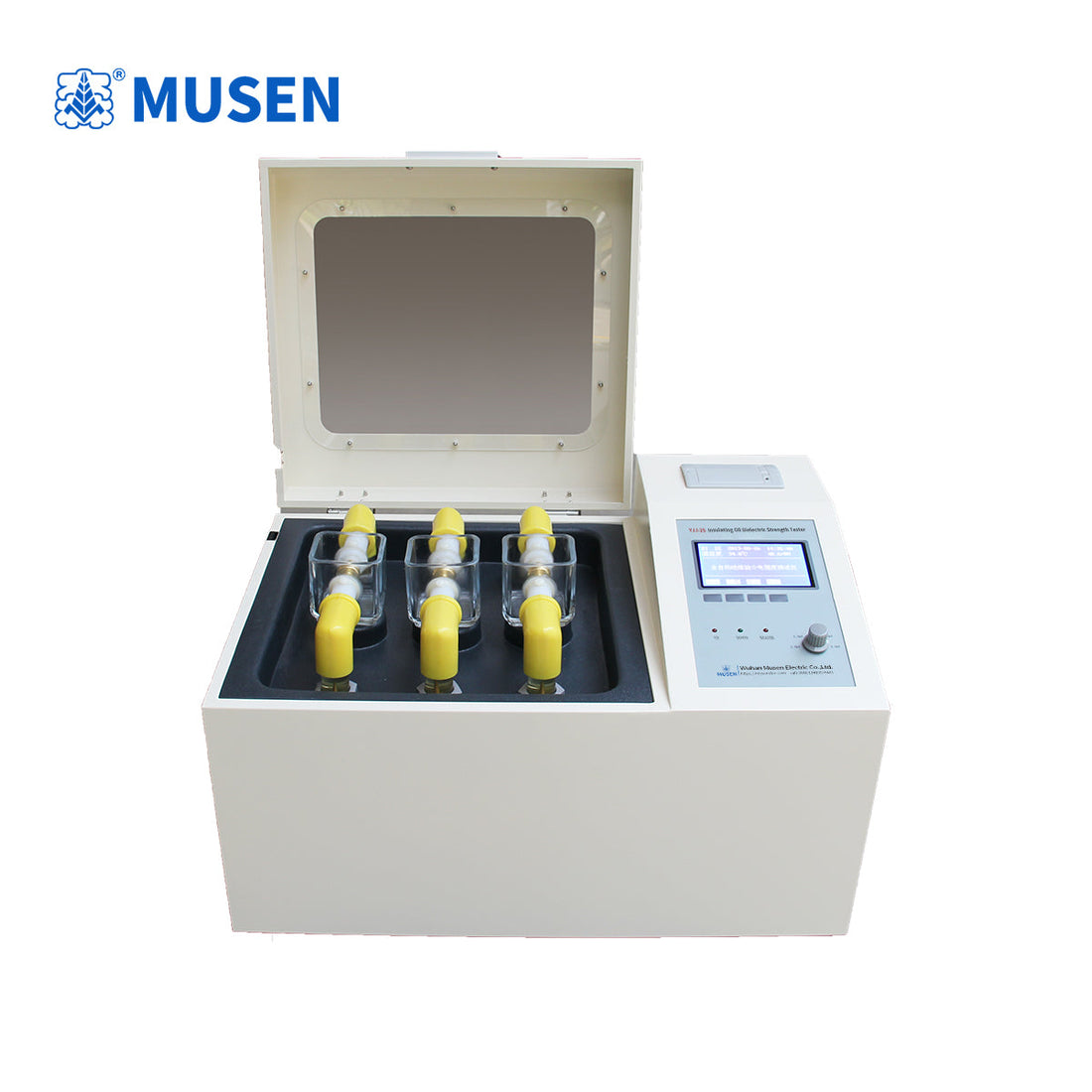

The physical layout features a three-cup integrated design. This hardware architecture allows engineers to test multiple oil samples sequentially without manual cell swapping, drastically increasing laboratory and field throughput.

3. Automated Control, Waveform Setting, and Operator Safety Array
Field testing environments present significant electrical noise and safety hazards during high-voltage arcing. To mitigate these risks, the **Automatic Dielectric Strength Tester for Insulating Oil** developed by Musen Electric features an industrialized dual-control matrix. While the CPU handles data processing and records storage, the PLC commands real-time power regulation. This division ensures the microprocessor never crashes during a destructive arc discharge.
Furthermore, the instrument features a unique waveform calibration module that actively eliminates grid harmonics, ensuring a clean sine wave output. For operator safety, an integrated monitoring array features automated over-voltage, over-current, mechanical limit, and continuous grounding line alarms to isolate dangerous high-voltage loops from the user.
4. Standardized Field Diagnostic Protocols for Electrical Engineers
Achieving legally defensible and accurate test results requires strict adherence to standardized handling workflows. Even minor ambient dust or micro-bubbles can skew breakdown data, leading to incorrect diagnostic conclusions.
* **Sample Extraction:** Fluid must be drawn carefully from the transformer's bottom sampling valve during dry weather conditions. The initial run must be discarded to clear residual external debris.
* **Vessel Conditioning:** Rinse the integrated test cups thoroughly with a small volume of the target oil sample before filling to neutralize historical chemical cross-contamination.
* **De-aeration Phase:** Pour the oil slowly down the inside wall of the test cell to prevent the formation of micro-bubbles, allowing the fluid to stand for the standard duration required by the system menu.
* **Test Execution:** Select the desired regional standard (such as IEC 60156 or ASTM D1816) on the interface. The automated system will seamlessly execute the voltage ramp-up, arc detection, magnetic stirring, static settlement, and mathematical averaging.
All test profiles and results are stored securely via non-volatile flash memory, ensuring full data recovery and seamless printing via the on-site thermal printer even during sudden station power losses.
5. Strategic Benefits of Upgrading Substation Maintenance Programs
Transitioning from legacy manual test sets to advanced, dual-controlled diagnostic platforms provides clear financial and operational advantages for utilities and engineering firms worldwide.
* **Asset Lifecycle Extension:** Pinpointing micro-level fluid oxidation early allows for proactive oil conditioning before permanent damage occurs to the core's cellulose paper insulation.
* **Enhanced Field Mobility:** A lightweight, ruggedized **Transformer Oil BDV Tester** enables field teams to move swiftly between remote substations without compromising on laboratory-grade measurement accuracy.
* **Regulatory Audit Readiness:** Pristine waveform stabilization guarantees that all exported data files, averages, and timestamped charts easily pass strict national grid inspections and compliance audits.

6. Frequently Asked Questions (FAQ)
**Q1: What makes a dual CPU and PLC system better than a standard single microprocessor?**
A1: Single microprocessors frequently experience crashes or data corruption from localized electromagnetic interference (EMI) during high-voltage arc breakdowns. Musen Electric's dual CPU and PLC architecture isolates the high-voltage control loop from data logging, ensuring completely stable operation and uncorrupted record-keeping.
**Q2: How does the unique waveform calibration feature improve test accuracy?**
A2: Power supply lines at substations are often heavily distorted by industrial harmonics. This advanced calibration system actively smooths incoming voltage fluctuations, feeding a clean sine wave with less than 2% distortion to the oil vessel for highly accurate, standardized results.
**Q3: Is an 80kV output model sufficient for modern grid applications?**
A3: An 80kV output range perfectly covers standard mineral oils used in the vast majority of distribution and transmission transformers. For ultra-high-voltage grid networks or newer synthetic ester fluids that exhibit higher dielectric thresholds, the system can be configured up to 100kV to provide the necessary testing headroom.
