Is Your Transformer Insulation Safe? The Ultimate Guide to Tan Delta Testing

Keywords: Tan Delta Tester, insulation health monitoring, power equipment maintenance, Wuhan Musen Electric Co., Ltd., dielectric loss analysis

Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides critical diagnostic solutions for global power utilities. Ensuring the operational integrity of high-voltage assets requires more than routine checks; it demands precision dielectric analysis to prevent catastrophic failures caused by insulation degradation.

1. Why is Dielectric Loss Monitoring Essential for Power Grid Reliability?

For electrical engineers and substation managers, the health of a transformer's insulation system is the primary factor in its remaining service life. Over time, factors such as thermal stress, chemical oxidation, and moisture ingress alter the dielectric properties of oil-paper insulation. A high-performance Tan Delta Tester is the industry-standard tool for quantifying these changes. By measuring the dissipation factor (tanδ), maintenance teams can detect aging trends long before they manifest as physical breakdowns, shifting the maintenance paradigm from reactive to proactive.

2. How Does Modern Technology Neutralize Field Interference?

Testing in live substation environments presents a significant challenge: electromagnetic interference. Traditional bridge methods often struggle with 50Hz/60Hz noise from neighboring energized lines. Our advanced Tan Delta Tester utilizes sophisticated frequency conversion technology. By injecting a test signal at frequencies slightly offset from the grid (e.g., 45Hz and 55Hz), the system digitally filters out interference, ensuring that the resulting data is a true reflection of the insulation’s condition rather than environmental noise.

3. Optimizing CVT and Transformer Testing Efficiency

Modern electrical infrastructure requires testing equipment that reduces downtime. The integration of specialized measurement modes allows for the simultaneous evaluation of complex components like Capacitive Voltage Transformers (CVT). By utilizing a professional-grade Tan Delta Tester, engineers can perform "one-connection" tests that capture multiple data points—such as C1 and C2 capacitance—without repeated climbing or lead reconfiguration. This not only increases safety but also provides a comprehensive data set for trend analysis across the entire asset fleet.

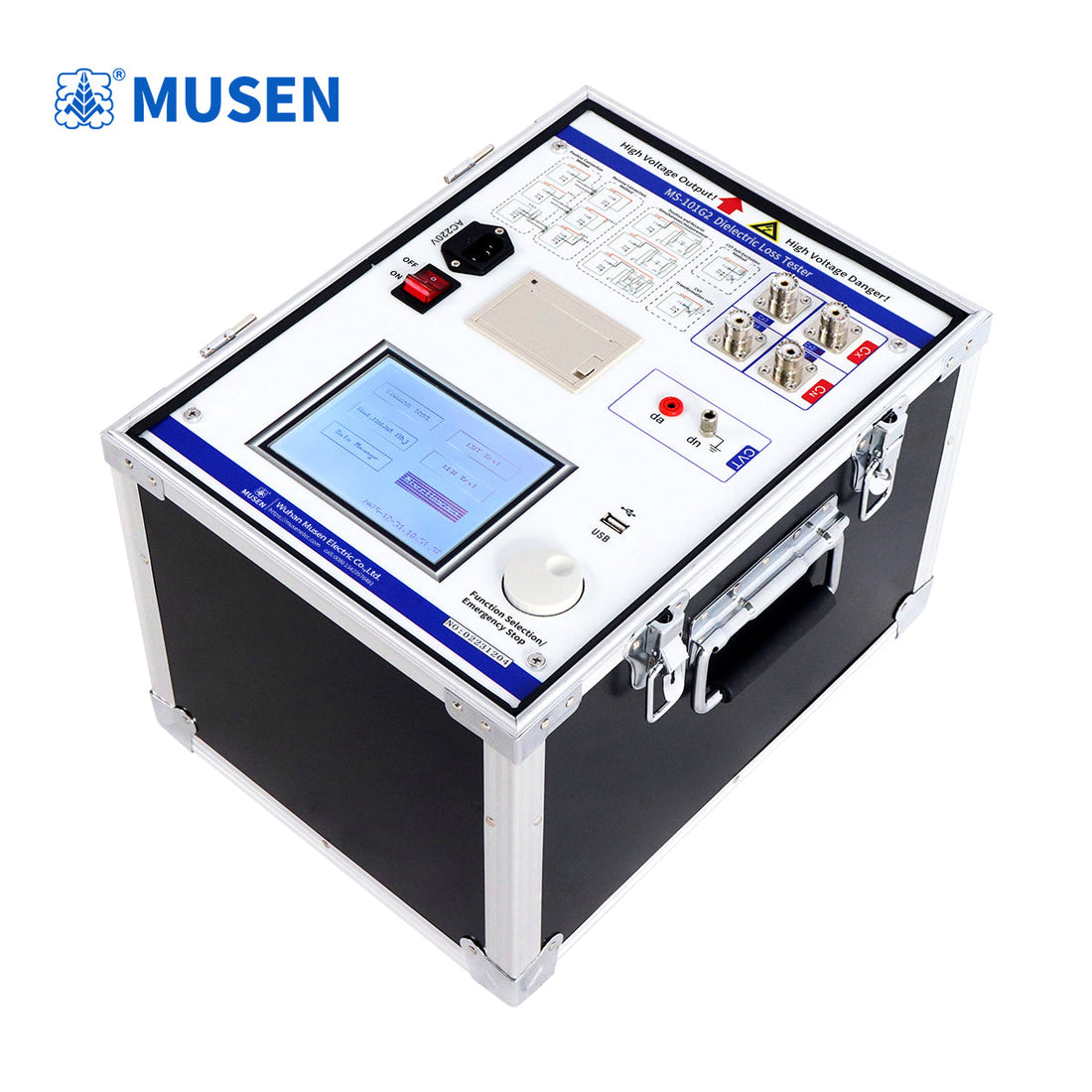

4. Technical Performance and Integration Parameters

To meet the rigorous standards of international power engineering, Wuhan Musen Electric offers the following technical capabilities:

• Integrated CVT Analysis: Self-excitation functions allow for simultaneous C1/C2 and Tgδ measurement.

• Shielded Field Testing: Equipped with reverse connection high-voltage shielding for grounded CVT busbars up to 10kV.

• Variable Frequency Anti-Interference: High-precision data acquisition in environments with strong electromagnetic fields.

• Safety Protocols: Real-time over-current protection for both the operator and the specimen in case of breakdown.

• Multifunctional Extensions: Optional modules for Insulation Resistance (PI/DAR), LCR measurement, and CVT ratio testing.

• Portable Design: Standardized internal capacitors and high-voltage power supplies reduce the need for external peripherals.

5. Frequently Asked Questions for Power Maintenance Professionals

Q: What is the primary indicator of moisture in a transformer's solid insulation?

A: A significant increase in the Tan Delta value at higher temperatures or a steepening of the Tan Delta-Frequency curve typically indicates moisture saturation within the cellulose insulation.

Q: Can this equipment be used on high-capacitance specimens?

A: Yes, our systems are designed to handle various capacitance ranges. For exceptionally large specimens, external power coupling or resonant configurations can be utilized to ensure accurate results.

Q: How often should Tan Delta testing be performed on power transformers?

A: While frequency depends on the asset's criticality and age, the general industry consensus suggests a baseline test during commissioning, followed by periodic assessments every 3 to 5 years, or more frequently if dissolved gas analysis (DGA) shows anomalies.

Q: What makes Wuhan Musen Electric products suitable for international engineering?

A: Our equipment is designed for durability in diverse climates and complies with international testing standards, backed by comprehensive technical support at www.musenelectric.com.
