How to Ensure Substation Safety with High Voltage Insulation Resistance Testing?

 Keywords: High Voltage Insulation Resistance Tester, Substation Maintenance, Transformer Insulation Health, Wuhan Musen Electric, Electrical Testing Equipment

Reliability in Modern Power Grids: The Strategic Importance of Insulation Diagnostics

In the global power sector, the integrity of high-voltage assets is the cornerstone of grid stability. For overseas power plant operators and utility engineers, an undetected insulation breakdown in a transformer or generator is not just a technical failure; it is a significant financial risk. Proactive diagnostic testing ensures that critical infrastructure remains operational while minimizing the risk of catastrophic short circuits. Wuhan Musen Electric Co., Ltd. specializes in providing high-precision solutions that bridge the gap between reactive repairs and strategic asset management.

1. Why is High Voltage Insulation Resistance Testing Critical for Substations?

Maintaining insulation health in large-capacity equipment requires more than basic continuity checks. As insulation ages due to thermal cycling and environmental stress, its ability to withstand operational voltage diminishes. Utilizing a high-performance Insulation Resistance Tester allows engineers to perform non-destructive assessments of the dielectric strength of windings. By measuring the minute leakage current under high stress, utility teams can predict the Remaining Useful Life (RUL) of expensive assets, ensuring that maintenance cycles are data-driven rather than time-dependent.

2. Advanced Diagnostic Metrics: Beyond Simple Resistance Readings

For complex electrical systems, a single point-in-time resistance measurement can be misleading. Professional field testing now mandates the use of Polarization Index (PI) and Dielectric Absorption Ratio (DAR). These metrics are essential for identifying whether low resistance is caused by surface contamination or deep-seated moisture within the insulation layers. Our equipment automates these calculations, providing instant clarity on whether a transformer requires immediate drying or simple cleaning, thereby optimizing onsite labor efficiency.

3. Overcoming EMI Challenges in High-Interference Environments

Electrical engineers working in active substations often face heavy electromagnetic interference (EMI) that can distort sensitive measurements. The latest generation of Insulation Resistance Tester technology from Wuhan Musen Electric is designed with advanced digital filtering and shielded circuitry. This ensures that even when the induced interference current reaches 2mA, the tester maintains its rated accuracy. This level of precision is vital for high-stakes decisions regarding the energization of newly installed or repaired transmission equipment.

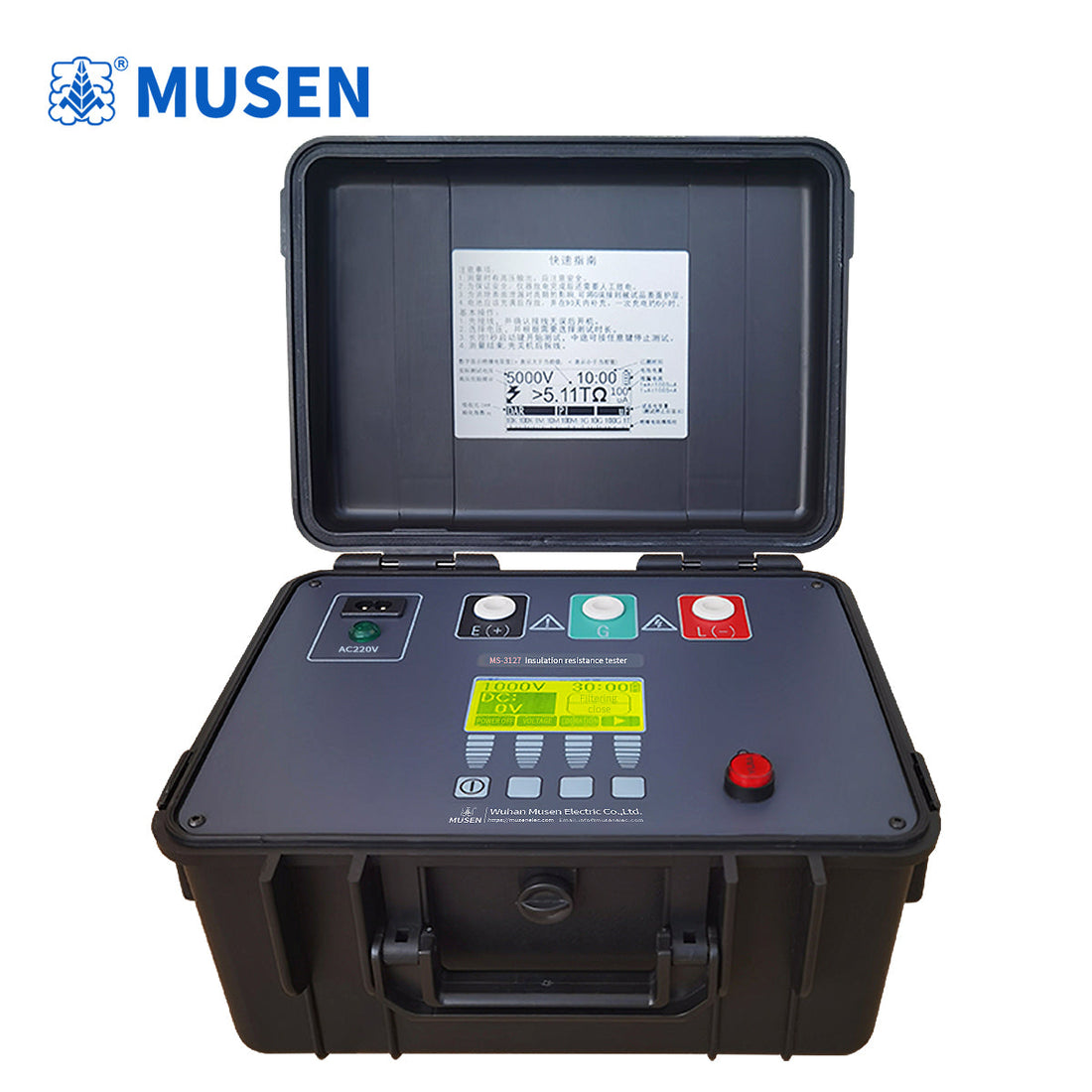

4. Professional Product Profile: Intelligent 5TΩ Diagnostic System

The YJJ series from Wuhan Musen Electric represents the pinnacle of field-ready diagnostic technology, designed specifically for the rigors of international power projects.

• Selectable Voltage Outputs: 500V, 1000V, 2500V, 5000V, and 10000V.

• Maximum Range: Offers a vast measurement ceiling of 5TΩ.

• Superior Power Output: Short-circuit current is adjustable up to 5mA, allowing for the rapid charging of high-capacitance cables.

• Automated Safety: Features a rapid automatic discharge mechanism for capacitive test samples, enhancing technician safety.

• Resilient Power Management: Dual-mode power system (Lithium battery and AC) providing 4 hours of continuous field operation.

• Environmental Protection: Built to withstand harsh field conditions with integrated protection against accidental overvoltage.

5. Conclusion: Future-Proofing Power Assets with Precision

In conclusion, the transition toward smarter, more resilient grids requires a commitment to high-level diagnostic precision. By integrating an advanced Insulation Resistance Tester into regular maintenance protocols, utility companies can significantly reduce the probability of unplanned outages. As a leading manufacturer, Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) continues to support global power infrastructure with tools that define the standards of safety and accuracy in the electrical testing industry.

Professional Troubleshooting: FAQ for Field Engineers

Q1: How does the short-circuit current affect cable testing?

A: High short-circuit current (e.g., 5mA) is essential for quickly charging the inherent capacitance of long cables, allowing the resistance reading to stabilize faster and saving significant time during large-scale field tests.

Q2: Can this equipment be used in humid tropical environments?

A: Yes. Our testers feature digital filtering and high-quality insulation materials to mitigate the effects of humidity. However, we always recommend using the guard terminal to eliminate surface leakage errors.

Q3: What is the significance of the 5TΩ measurement range?

A: Modern synthetic insulation materials often exhibit extremely high resistance values when in good condition. A 5TΩ range ensures that the equipment can accurately benchmark high-quality insulation without "maxing out" the meter.

Q4: Is it necessary to manually discharge a transformer after a 5000V test?

A: No. The instrument includes an automatic rapid discharge function that safely dissipates stored energy within the sample immediately after the test concludes, protecting the operator from residual voltage.
