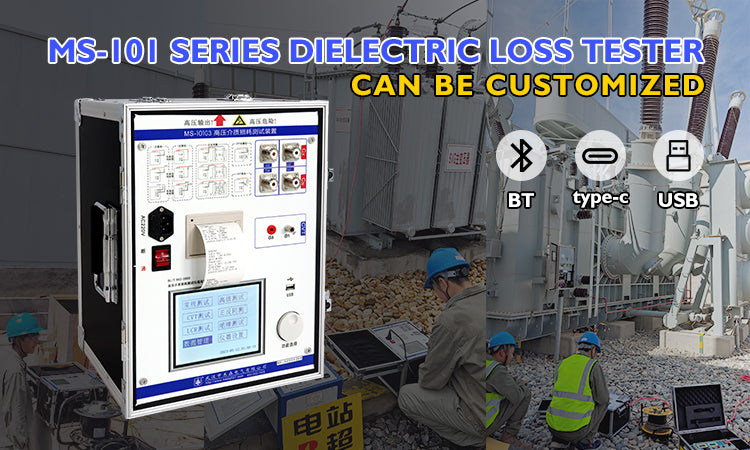

How Does a Professional Dielectric Analyzer Ensure High-Voltage Asset Reliability?
How Does a Professional Dielectric Analyzer Ensure High-Voltage Asset Reliability?
Keywords: Dielectric Analyzer, Tan Delta testing, power equipment insulation, Wuhan Musen Electric Co., Ltd., transformer maintenance
In the demanding landscape of international power engineering, the integrity of high-voltage insulation is the primary barrier against catastrophic grid failure. For utility operators and maintenance units, the ability to quantify dielectric health is not just a safety protocol—it is a critical financial strategy. Wuhan Musen Electric Co., Ltd. provides advanced diagnostic solutions designed to detect the earliest stages of thermal degradation and moisture ingress, ensuring that global power infrastructure remains resilient and efficient.
1. Why is Dielectric Analysis Essential for Modern Power Grids?
Insulation breakdown accounts for over 70% of high-voltage transformer failures worldwide. As assets age, the chemical structure of insulating oils and cellulose paper changes, leading to increased dielectric loss. Utilizing a professional Dielectric Analyzer allows engineers to monitor these changes with scientific precision. By measuring the dissipation factor (tanδ), maintenance teams can distinguish between surface contamination and deep-seated internal aging, allowing for surgical intervention rather than costly, wholesale equipment replacement.
2. Structural Advantages of Frequency Conversion in Field Testing
Field environments in large-scale power projects are rarely "electrically quiet." The proximity of energized lines creates significant 50Hz/60Hz interference that can render standard diagnostic tools inaccurate. Our systems utilize digital frequency conversion technology to shift the test signal away from the grid frequency. This ensures that the data collected by the Dielectric Analyzer remains stable and repeatable, even in ultra-high voltage (UHV) substations where electromagnetic noise is at its peak.
3. Optimizing CVT and Transformer Diagnostic Workflows
The complexity of testing Capacitor Voltage Transformers (CVTs) often leads to significant downtime. Modern engineering standards now demand "one-connection" testing protocols. By integrating self-excitation functions, a single setup can measure C1 and C2 capacitance alongside dielectric loss. This structural efficiency reduces the time on-site by approximately 40%, a critical metric for international contractors managing tight maintenance windows.
4. Technical Parameters of the Musen Electric Diagnostic Suite
For procurement departments and lead engineers, technical compliance is the ultimate authority. Our latest Dielectric Analyzer architecture includes the following specifications:
- ■ CVT Integration: Built-in self-excitation for simultaneous C1/C2 Tgδ measurement.
- ■ Grounding Flexibility: Supports 10kV reverse shielding for CVT bus-grounded scenarios.
- ■ Ratio Accuracy: Covers 35-500kV CVT ratio measurement requirements.
- ■ Multi-Channel Logic: Simultaneous testing of four samples to maximize throughput.
- ■ Comprehensive LCR: Automatic measurement of Inductance, Capacitance, and Resistance.
- ■ Safety Shielding: Full overcurrent and breakdown protection circuits.
5. Conclusion: Data-Driven Asset Management
The transition toward smart grids necessitates a transition toward data-driven maintenance. By implementing the high-precision diagnostic tools provided by Wuhan Musen Electric Co., Ltd., utility providers can move from reactive repairs to predictive asset management. Visit [www.musenelectric.com](https://www.musenelectric.com) to explore our full range of international B2B electrical testing solutions.
6. Frequently Asked Questions (FAQ)
Q: How does frequency conversion eliminate field interference?
A: By using a power source at 45Hz or 55Hz, the analyzer can digitally filter out the 50Hz grid noise, ensuring that only the relevant dielectric response is recorded.
Q: Can the equipment test transformers without disconnecting the busbar?
A: Yes, with reverse shielding functionality, measurements can be taken while the equipment remains grounded, significantly simplifying site logistics.
Q: What is the benefit of multi-channel measurement?
A: It allows for the characterization of all three phases and the neutral point of a transformer simultaneously, ensuring consistent thermal conditions across all tests.
Q: Is the device portable for remote substation use?
A: The unit is designed as an integrated system, containing the high-voltage source and standard capacitor in one ruggedized enclosure for easy transport.
