### **1. Why Does Interfacial Tension Dictate High-Voltage Transformer Reliability?**

High-voltage power transformers represent the most critical capital assets in electrical grids and industrial substations. While routine dielectric breakdown checks and dissolved gas analysis are industry standards, measuring fluid boundary physics offers the earliest warning of chemical degradation. Pure, highly refined mineral insulating fluid is non-polar and strongly hydrophobic. When layered over pure water, the boundary exhibits a high physical resistance to contraction, registering an initial value between 40 and 50 mN/m.

As a transformer operates under continuous thermal loads and high electrical field stress, oxygen and moisture react with the liquid hydrocarbons. This chemical oxidation cascade generates polar contaminants, such as organic carboxylic acids, peroxides, and unstable sludge monomers. Because these progressive aging byproducts possess polar molecular structures, they migrate to the oil-water boundary layer. By aligning themselves along this threshold, they reduce the natural molecular repulsion between the two immiscible fluids. As a result, the boundary resistance drops sharply. Tracking this decline provides power engineers with a highly sensitive baseline to calculate the precise degradation status of liquid insulation long before visible sludge particles precipitate onto core paper insulation.

### **2. What Are the Critical ASTM D971 Testing Thresholds for Operations?**

To turn physical measurements into actionable field maintenance decisions, power engineering teams rely on quantified operational limits established by international standards bodies. The global benchmark for this process is ASTM D971, which defines the strict boundary limits for running electrical equipment.

| Fluid Condition | Boundary Value Range | Physical Status & Diagnostic Action Required |
| --- | --- | --- |
| **Good / New Oil** | 40 to 50 mN/m | Fluid is highly clean; zero significant polar contaminants or aging products present. |
| **Marginal Fluid** | 25 to 35 mN/m | Accelerated oxidation detected; polar compounds actively accumulating. Oil reclamation should be scheduled. |
| **Critical Risk State** | Less than 20 mN/m | Highly unstable; oil is actively shedding insoluble sludge. Immediate filtering or oil replacement required to avoid dielectric breakdown. |

When values drop below the 20 mN/m critical milestone, the fluid loses its ability to hold polar molecules in suspension. Insoluble sludge begins coating the internal radiators, blocking thermal cooling ducts and driving up winding temperatures. This accelerates thermal paper degradation, dramatically shortening the remaining operational lifespan of the transformer.

---

### **3. How Do Automated Analytical Instruments Mitigate Contamination Risks?**

Quantifying micro-level molecular boundary forces requires high physical precision. Historically, manual torque-balance systems introduced significant operator error due to inconsistent physical pulling speeds and analog dial interpretation. Modern diagnostic laboratories have resolved these issues by adopting automated instrumentation designed around the classic Du Noüy ring method.

The automated process utilizes a meticulously cleaned platinum-iridium ring suspended from a highly sensitive balance system. A motorized platform lowers the liquid sample vessel at a constant, vibration-free speed, drawing the platinum ring upward through the oil-water interface. The device records the maximum pulling force exerted right before the liquid film ruptures.

Achieving reproducible results requires strict contamination control. Microscopic residues of surfactants, finger oils, or chemical detergents on testing vessels can artificially depress boundary physics, triggering false alarms. To counter this, testing technicians must thoroughly burn the platinum ring with a hydrocarbon flame between every single test loop to eliminate organic molecules. Furthermore, because interface mechanics are highly temperature-dependent, professional diagnostics require hardware with embedded thermal monitoring circuits to normalize all raw analytical results back to the global reference standard of 25°C.

### **4. Which Instrument Architecture Best Fits Power Asset Procurement?**

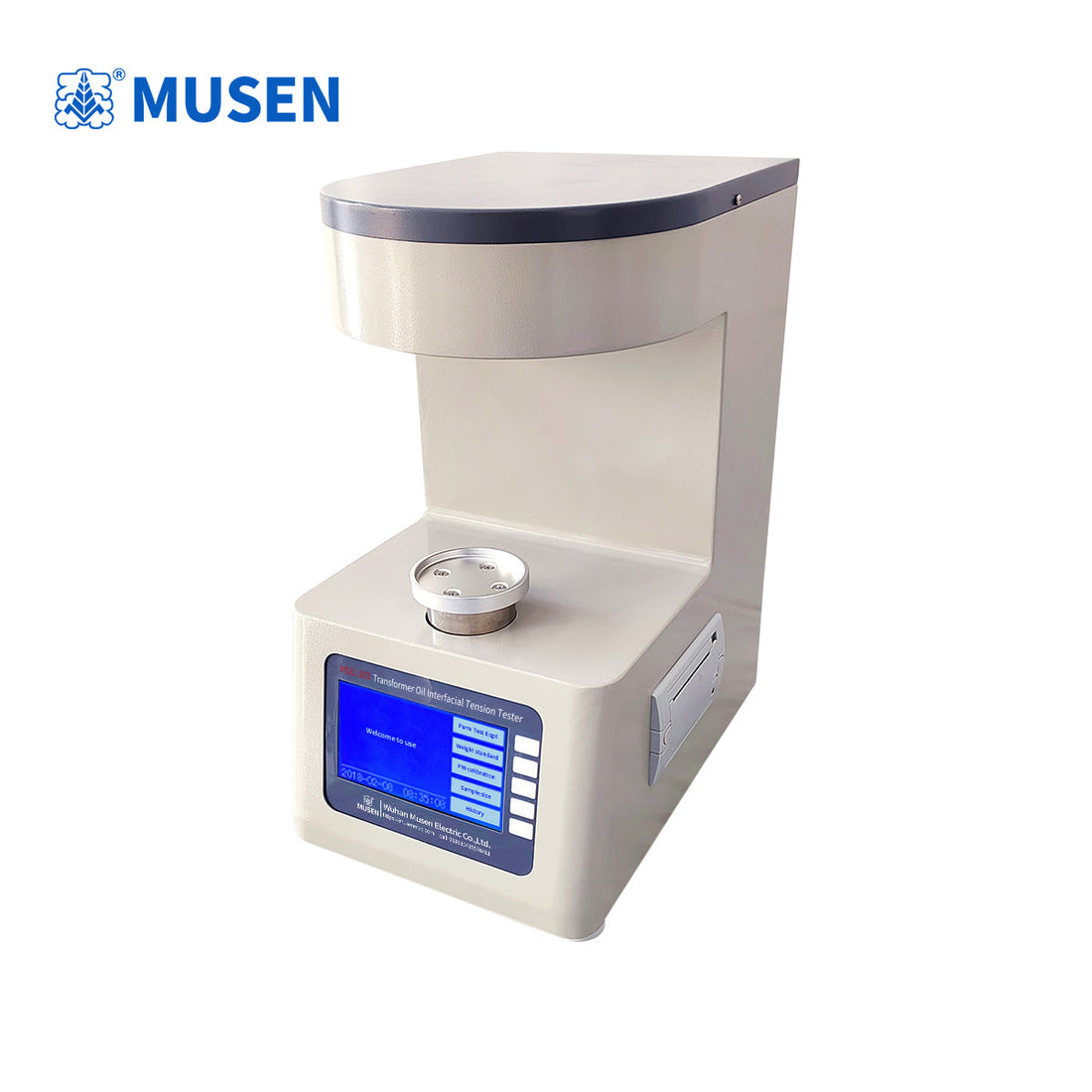

For engineering procurement specialists and utility operations managers, selecting a reliable laboratory system depends heavily on sensor long-term stability and calibration ease. High-precision testing operations rely on an advanced **Transformer Oil Tensiometer** to eliminate human subjectivity and minimize raw calculation errors during high-volume testing schedules.

Modern fleet diagnostic programs utilize specialized instrumentation classified under the **Interfacial Tension Tester (IFT)** designation. These advanced systems feature automated control logic that maintains precise mechanical platform movement, adhering to strict international regulatory parameters. Furthermore, testing facilities that demand versatile analysis across multiple liquid insulation combinations utilize a comprehensive **Liquid Interfacial Tension Apparatus**. This apparatus is engineered to handle diverse fluid densities and chemical profiles with identical precision, providing vital data regarding oil-water separation rates and hydrophobic decay speed.

Wuhan Musen Electrical Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) engineers premier testing hardware tailored for global power engineering infrastructure. Our flagship analytical instrument incorporates several proprietary technical innovations:

* **Original Fast-Response Electromagnetic Force Balance Sensor:** This design optimizes measurement accuracy and linearity, ensuring stable data capture across ultra-low tension thresholds.
* **Single-Point Calibration System:** Unlike older sensors requiring complex multi-point calibration curves, this technology utilizes a single-point calibration, completely eliminating zero-adjustment and full-scale adjustment potentiometers.
* **Real-Time Diagnostic Interface:** The integrated digital display outputs both the equivalent tension value and the current weight profile throughout the physical pull cycle.
* **Automated Thermal Compensation:** Equipped with an integrated temperature detection circuit, the instrument automatically compensates all raw analytical results against thermal variations, normalizing data directly to standard conditions.

### **5. Frequently Asked Questions Regarding Fluid Insulation Diagnostics**

**Q: How often should fluid interface testing be performed on power transformers?**
A: For critical utility-scale transformers or units operating under continuous heavy loads, it is recommended to perform this test annually alongside standard dissolved gas analysis. For older or at-risk units, semi-annual tracking helps catch rapid oxidation spikes before sludge formation begins.

**Q: Can total acid number tests replace the need for interface testing?**
A: No, they are complementary but distinct. Total Acid Number (TAN) measures the quantity of acidic components but is less sensitive during the earliest stages of fluid aging. The boundary tension test detects very low concentrations of early-stage hydrophilic polar compounds before they cause a measurable increase in the overall acid number.

**Q: What causes a sudden drop in fluid boundary tension values?**
A: The primary causes are severe thermal overloading, moisture ingress, or internal electrical faults that accelerate chemical oxidation. It can also occur following the improper mixing of incompatible oil brands or contact with degraded internal varnishes and gaskets.

**Q: Why is the Du Noüy ring method preferred over the Wilhelmy plate method for oil analysis?**
A: The Du Noüy ring method is explicitly mandated by global industry standards such as ASTM D971 and ISO 6295. This is due to its historical reliability, ease of torch cleaning, and robust reproducibility when handling high-viscosity mineral insulating fluids.
