Why Is Controlling Transformer Oil Tan Delta Critical to Preventing Substation Blackouts?

 Oil Tan Delta Tester, Oil Dielectric Dissipation Factor (DDF) Tester, Insulating Oil Volume Resistivity Meter, sub-station electrical insulation decay, diagnostic asset management
  Learn how power generation and grid facilities evaluate liquid insulation health. Discover why measuring dissipation factor and resistivity saves multi-million dollar electrical assets.

### **1. What Hidden Indicators Signal Early Electrical Insulation Decay?**

In high-voltage electrical engineering, severe operational stresses continuously challenge transformers, reactors, and instrument transformers. Liquid insulation functions simultaneously as a dielectric medium and a vital thermal coolant. Over time, continuous thermal cycling, structural oxidation, and moisture ingress alter the oil's molecular matrix. This creates microscopic particulate matter, dissolved acids, and sludge that significantly compromise the fluid's breakdown voltage.

For overseas power plant managers and network grid assets specialists, relying solely on standard dielectric breakdown voltage tests is no longer acceptable. A fluid sample might successfully resist a brief spark-gap flashover while containing elevated levels of polar contaminants. These hidden contaminants actively accelerate the irreversible thermal aging of the internal cellulose paper insulation surrounding the active transformer windings. Power utilities require a proactive, highly repeatable diagnostics metric to identify subtle fluid contamination before irreversible catastrophic insulation breakdown forces a costly forced outage.

### **2. How Do Loss Angle and Volume Resistivity Reveal Fluid Degradation?**

Dielectric loss is the exact thermal energy dissipated when an insulating material is subjected to an alternating electric field. In a theoretically perfect dielectric system, the current vector leads the voltage vector by exactly 90 degrees. However, active chemical impurities introduce a resistive leakage current component. The minor angle by which this phase shift falls short of 90 degrees is the loss angle ($\delta$). The mathematical tangent of this specific angle ($tan\ \delta$) is the globally recognized dissipation factor.

Simultaneously, specific direct current (DC) volume resistivity measures the overall ionic concentration within the oil matrix. As insulation fluid undergoes severe thermal cracking or absorbs external chemical contamination, the presence of free conductive ions increases exponentially. Measuring both parameters gives engineers a comprehensive, multi-dimensional view of asset health, showing both the AC energy losses and the structural breakdown of the oil's chemical resistance.

### **3. Why Use a Specialized Transformer Oil Tan Delta Tester for Diagnostics?**

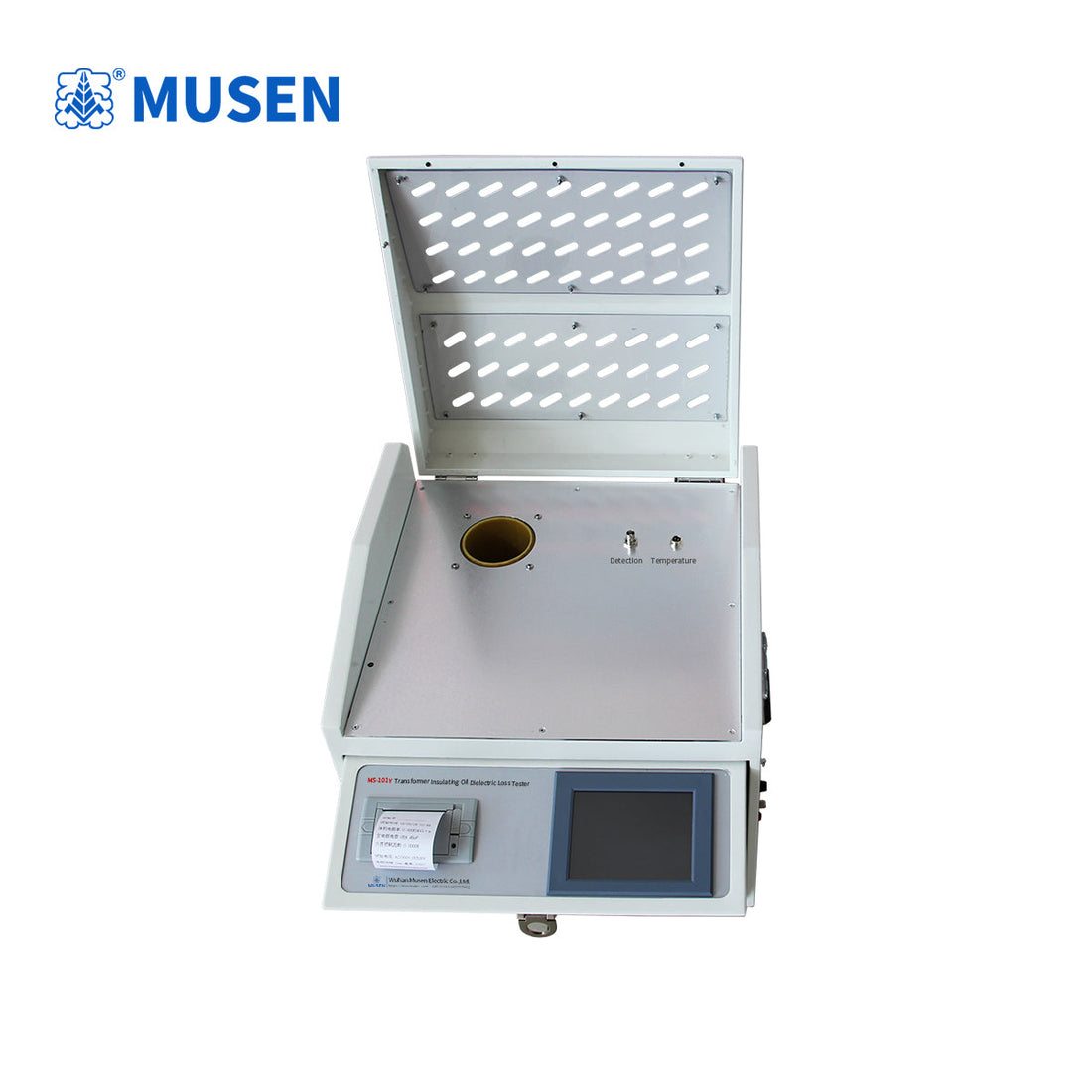

To manage these sensitive variables with absolute laboratory precision, power generation facilities and large industrial consumers rely on specialized instrumentation. Utilizing an advanced **Transformer Oil Tan Delta Tester** allows maintenance teams to subject fluid samples to exact standardized thermal profiles and controlled high-voltage electrical stresses.

A professional **Transformer Oil Tan Delta Tester** acts as a complete, integrated diagnostics system. Instead of forcing technicians to balance manual bridge networks across separate heating chambers—a tedious process prone to human error and sample contamination—the modern **Transformer Oil Tan Delta Tester** automates the entire analytical procedure. It provides rapid, highly repeatable, and operator-independent field measurements that map perfectly to international compliance standards.

### **4. What Core Engineering Features Define High-Precision Oil Diagnostics?**

Industrial testing environments demand rugged engineering paired with laboratory-grade measurement precision. Advanced diagnostic systems must consistently eliminate external variables like ambient humidity and stray atmospheric capacitance. Premium instrumentation platforms achieve this through several integrated, heavy-duty hardware designs:

* **Fully Integrated Automation:** The testing system completes fluid heating, dielectric dissipation factor (DDF) measurement, and volume resistivity testing in a single, uninterrupted automated run.
* **Three-Electrode Test Cell Layout:** Designed with a precise 2mm inter-electrode gap, this structural layout eliminates the negative effects of stray capacitance and surface leakage currents on the final measurement.
* **Medium-Frequency Induction Heating:** Powered by a responsive PID temperature control algorithm, the non-contact induction core ensures rapid, completely uniform heating across the oil cup.
* **SF6 Gas-Filled Reference Capacitor:** The internal standard capacitor uses an ultra-stable SF6 gas-filled three-terminal design, ensuring its capacitance and baseline dissipation values remain entirely unaffected by shifting laboratory humidity or temperature levels.
* **Active Operator Safety Interlocks:** Built-in protection circuits automatically shut down the internal high-voltage supply the moment the enclosure lid is raised or if an electrode short-circuit is detected.
* **Dry Cell Empty Cup Calibration:** The system features a built-in calibration program that checks the empty cell's baseline capacitance and residual loss factor, helping operators instantly verify that the cell is clean and assembled correctly before testing oil.
* **Non-Volatile Calibration Archiving:** Calibration data is automatically saved to internal memory, providing real-time data compensation essential for calculating relative permittivity and exact DC resistivity with maximum precision.

For international power companies seeking verified testing platforms that meet these strict field specifications, Wuhan Musen Electrical Co., Ltd. provides engineered high-voltage test equipment. Learn more about their professional testing solutions by visiting the official corporate web portal at [www.musenelectric.com](https://www.musenelectric.com).

### **5. Frequently Asked Questions Regarding Dissipation Factor Analysis**

**Q: Why do international testing standards like IEC 60247 specify testing at exactly 90°C?**
**A:** At lower ambient temperatures, polar contaminants and conductive ions move slowly within thick hydrocarbon chains, which can mask early degradation. Heating the oil sample to exactly 90°C increases ionic mobility, allowing the testing instrument to clearly capture and measure subtle structural impurities, aging symptoms, and moisture under worst-case operating conditions.

**Q: How frequently should high-voltage transformer oil undergo tan delta diagnostics?**
**A:** For critical transmission substation transformers rated above 110kV, engineering standards recommend performing comprehensive dissipation factor and volume resistivity analysis annually. For distribution transformers or assets operating under continuous peak loads, testing every two to three years is typical, unless triggered earlier by abnormal dissolved gas analysis (DGA) trends.

**Q: What specific threshold values indicate that insulating oil must be regenerated?**
**A:** While exact limits vary by asset voltage class, a tan delta value exceeding 0.005 at 90°C for EHV transformer oil indicates significant degradation or contamination. If values climb past 0.01, or if the specific DC volume resistivity drops below recommended minimum limits, the fluid requires immediate clay filtration, degasification, or complete oil replacement to protect the asset.
