How to Locate SF6 Leaks Instantly in High-Voltage Breakers?


SF6 Gas Leak Detector, Infrared SF6 Gas Analyzer, Portable SF6 Leak Sniffer, Quantitative SF6 Gas Leakage Tester, substation gas leak detection


 Master instant substation gas testing. Learn how an Infrared SF6 Gas Analyzer accurately pinpoints insulation faults and prevents high-voltage grid downtime.

---

### 1. How Do Trace Gas Emissions Threaten Substation Grid Reliability?

Substation asset managers and international power plant operators face severe operational risks when insulating gases escape from high-voltage switchgear. Sulfur hexafluoride (SF6) provides critical arc-quenching capabilities inside gas-insulated switchgear (GIS) and high-voltage circuit breakers. However, even a minor micro-leak degrades the system's dielectric strength over time. If the gas density drops past critical thresholds, it triggers emergency breaker trips, unprogrammed grid downtime, and potentially catastrophic catastrophic insulation breakdowns.

Beyond localized equipment hazards, global environmental regulations impose heavy financial penalties on utility companies for unmitigated emissions. To maintain grid compliance and operational safety, maintenance crews must transition from reactive pressure-gauge monitoring to proactive, real-time localized scanning. Utilizing an advanced **SF6 Gas Leak Detector** allows field engineers to scan extensive structural footprints rapidly, converting invisible gas plumes into actionable maintenance points before a low-pressure lockout occurs.

### 2. Why Choose Non-Dispersive Infrared Technology Over Legacy Detection Tools?

Traditional utility testing relied heavily on sniffing methods like corona discharge sensors or chemical sniffer solutions. While functional in controlled laboratory settings, these legacy tools routinely fail in harsh, wind-swept outdoor substations due to high cross-sensitivity from ambient moisture, oil vapors, and changing atmospheric conditions. Furthermore, old-school sensors frequently "choke" or experience baseline drift when exposed to high gas concentrations, leading to false negatives and missed fault locations.

Modern electrical infrastructure testing requires the chemical specificity offered by optical technology. A professional-grade **Infrared SF6 Gas Analyzer** leverages Non-Dispersive Infrared (NDIR) spectroscopy to track gas molecules without physical or chemical degradation. Because SF6 gas exhibits a sharp, unmistakable absorption signature within specific mid-infrared wavelengths, the optical sensor measures exact density variations instantaneously. This method is completely immune to cross-gas interference, ensuring that field crews receive highly repeatable, stable data in high-voltage, high-electromagnetic fields.

### 3. What Are the Core Engineering Technical Benchmarks for Procurement Selection?

When international procurement teams and power utility engineers select field diagnostic hardware, the equipment must balance high analytical precision with rugged, portable mechanics. Industrial testing units from specialized manufacturers like Wuhan Musen Electrical Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) integrate premium international hardware components to meet these strict field standards.

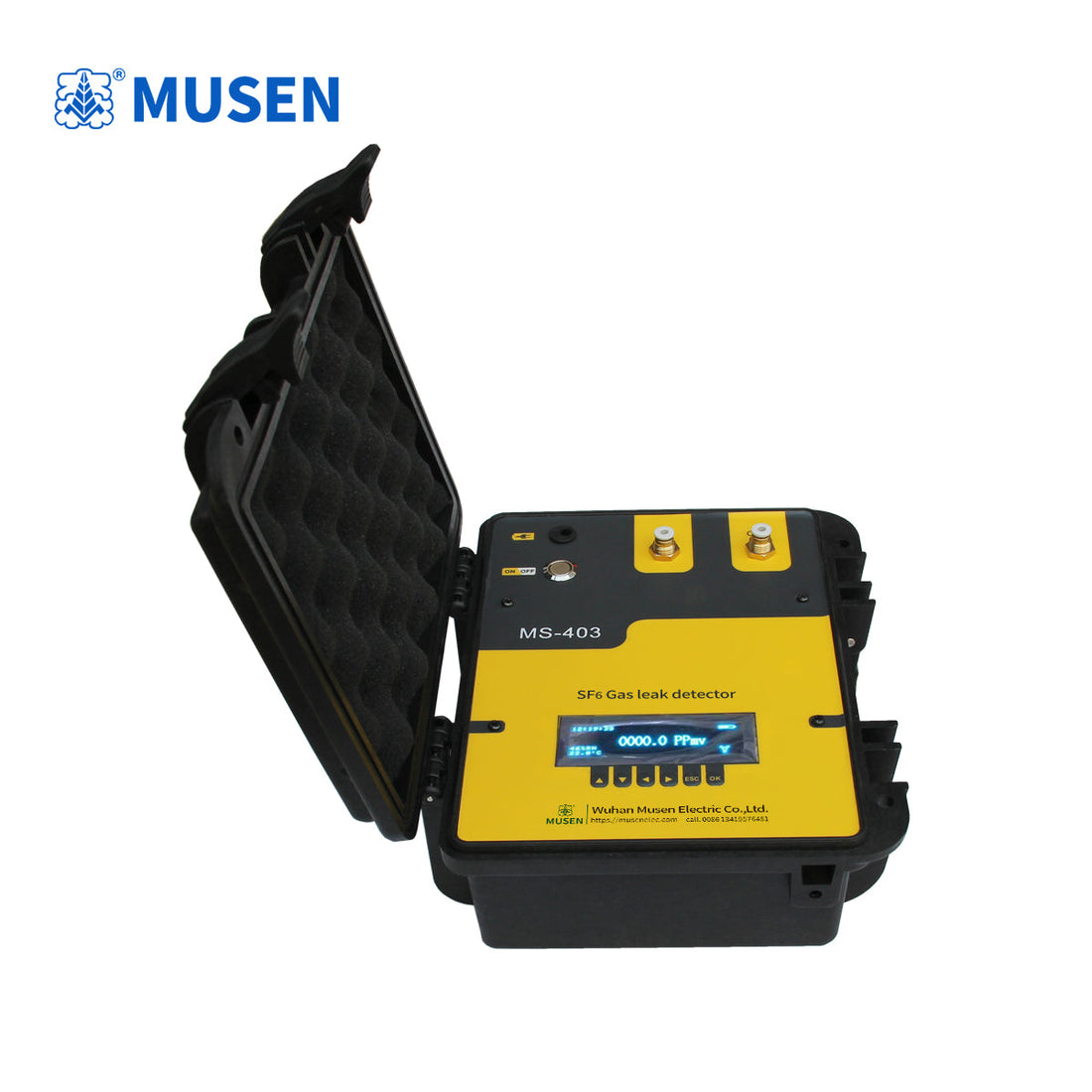

The baseline engineering criteria for a tier-one **Quantitative SF6 Gas Leakage Tester** include the following technical parameters:

* **Dual-Mode Analytical Capability:** The system must seamlessly support both qualitative broad-area screening and high-precision quantitative mass-rate logging on energized high-voltage apparatus.
* **Precision Spatial Targeting:** Equipped with an optimized internal gas routing system to precisely isolate and locate the exact physical coordinates of structural gas leaks.
* **Integrated Multi-Parameter Dashboard:** The primary digital screen must concurrently display real-time gas volume concentration, ambient temperature, relative ambient humidity, remaining battery cell capacity, system clock, and internal diaphragm pump throughput.
* **Premium German Optical Sensors:** Driven by an imported, world-class German NDIR sensor core to guarantee absolute measurement accuracy and an extended service lifespan under extreme conditions.
* **Ultra-Fast Response Cycles:** The processing core consolidates data rapidly, achieving full measurement stability within 10 seconds with excellent sequential data repeatability.
* **Dynamic Environmental Compensation:** Built-in software automatically adjusts calculations for real-time temperature and barometric pressure fluctuations, ensuring accurate readings across diverse climates.

### 4. How to Execute a Step-by-Step Field Scanning and Repair Sequence?

Locating a micro-leak across complex high-voltage circuit breaker assemblies requires a structured, step-by-step diagnostic workflow to guarantee data integrity and successful maintenance.

* **Step 1: Baseline Calibration and Environment Check:** Start the analytical device in a clean-air environment upwind from the target electrical equipment. Verify that the internal diaphragm pump status indicator shows optimal flow rate and allow the system to complete its automated optical zero-point self-calibration.
* **Step 2: High-Risk Structural Scanning:** Move the testing probe tip at a slow, continuous speed along high-risk structural joints. Focus intently on main flange connections, dynamic mechanical operating shafts, gas refilling valves, structural welds, and density monitor ports.
* **Step 3: Quantitative Maximum Point Verification:** Once the acoustic or visual alarm signals a spike in gas concentration, hold the probe tip completely stationary at the suspected fault location. Allow 10 seconds for the NDIR optical core to stabilize, then log the corrected concentration value shown on the dashboard.
* **Step 4: Seal Remediation and Post-Fix Validation:** Isolate the component if necessary, clean the structural metal faces thoroughly, and apply high-grade fluorosilicone sealants or install new engineered O-rings. After the sealant cures, rerun the exact same testing path; a successful repair is confirmed when the real-time concentration reading drops and remains at zero.

### 5. Frequently Asked Questions Regarding Substation Gas Diagnostics

**How often should field crews perform qualitative leak screening on high-voltage circuit breakers?**
Industrial maintenance standards recommend executing a comprehensive qualitative check annually during scheduled substation audits, or immediately whenever localized online density monitors flag a downward pressure trend. Catching trace emissions early prevents unexpected low-pressure system lockouts.

**Can extreme outdoor weather conditions distort the accuracy of infrared analytical data?**
Yes, ambient temperature and barometric pressure variations modify gas density, which can skew uncompensated infrared readings. Professional testing equipment solves this by utilizing onboard real-time software compensation routines, which automatically normalize the data to standard reference states regardless of freezing winter or scorching summer climates.

**What is the practical difference between a qualitative sniffer and a quantitative gas leakage tester?**
A qualitative sniffer is engineered for rapid mobility, allowing technicians to quickly scan a broad area to find out *where* a leak is located. A quantitative tester measures the precise concentration or mass loss rate, providing the exact numerical data required for environmental compliance auditing, regulatory reporting, and repair prioritization.
