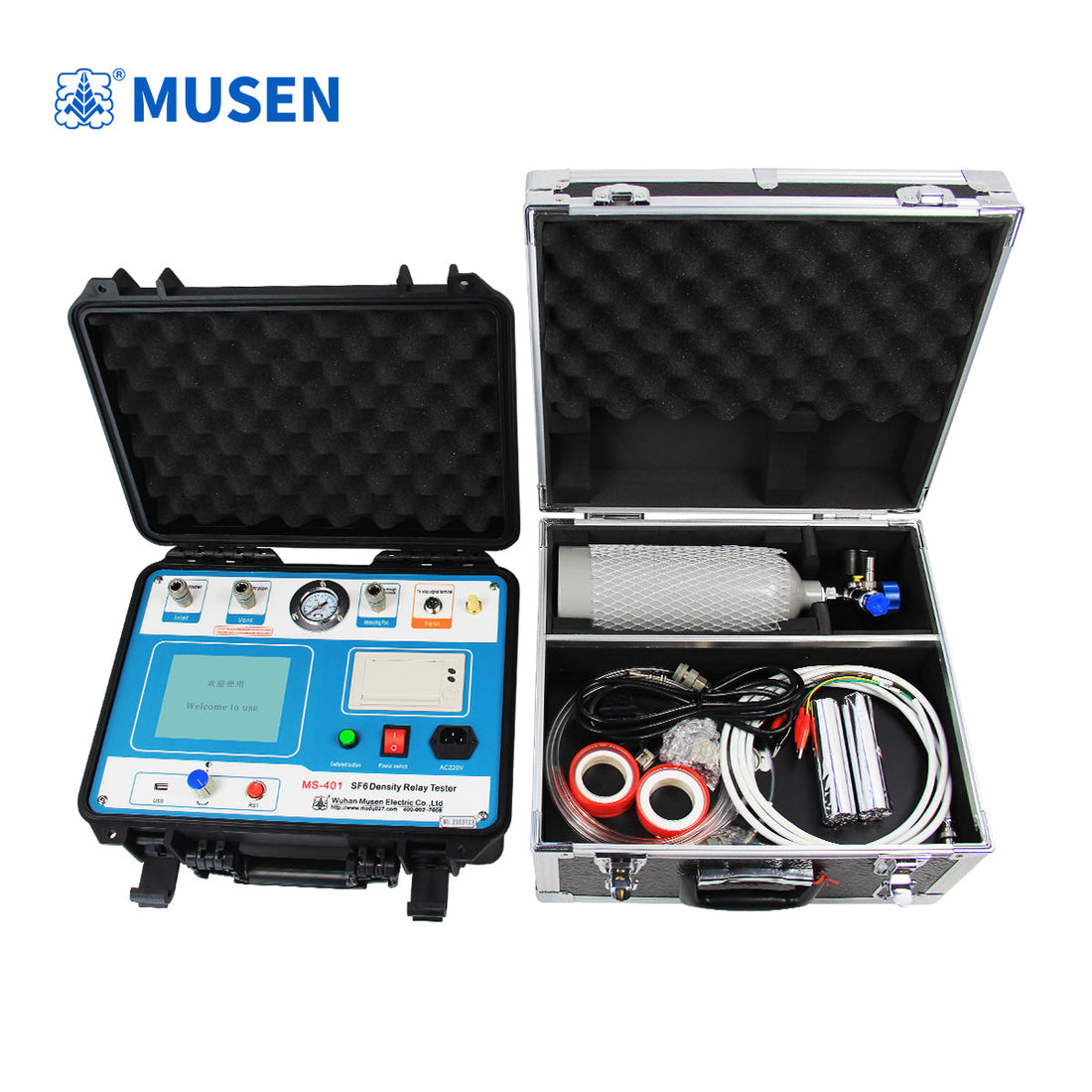

How to Optimize Substation Safety with Portable SF6 Density Monitor Tester Calibration?

 Portable SF6 Density Monitor Tester, Automatic SF6 Relay Calibration Kit, SF6 Gas Density Relay Calibrator, SF6 relay field testing, Musen Electric substation maintenance


Discover how a Portable SF6 Density Monitor Tester ensures grid safety. Learn automated field testing procedures, multi-signal verification methods, and expert calibration workflows from Musen Electric.

### **1. Why Is Regular SF6 Density Relay Calibration Critical for Grid Reliability?**

High-voltage circuit breakers rely heavily on Sulphur Hexafluoride (SF6) gas for arc quenching and insulation. However, gas leaks or pressure drops can compromise the entire substation. A **Portable SF6 Density Monitor Tester** is indispensable for verifying that density relays accurately trigger safety alarms before critical insulation levels are lost. Ambient temperature variations continually alter gas pressure, meaning standard pressure gauges cannot reflect true density without mathematical compensation. By executing regular field diagnostics, power engineering teams prevent catastrophic switchgear failures, reduce emergency downtime, and maintain compliance with strict international grid safety mandates.

### **2. What Core Testing Functions Must Field Equipment Perform?**

To meet the high-efficiency demands of modern overseas power utilities, field instrumentation must deliver comprehensive, multi-channel diagnostic capabilities within a single portable footprint.

* **Four-Point Threshold Detection:** The testing instrument accurately measures the alarm values, lockout values, alarm response values, and lockout response values of the SF6 gas density relay.
* **Simultaneous Multi-Signal Evaluation:** Advanced units can test one set of alarm signals alongside two sets of lockout signals simultaneously, significantly cutting down diagnostic time for complex control circuits.
* **Adaptable Circuit Testing:** The system provides diverse measuring procedures, allowing engineers to switch between single lockout measurement and double lockout measurement based on the specific architectural design of the high-voltage switchgear.

### **3. How Does Automation Eliminate Human Error in Gas Circuit Control?**

Manual calibration methods involving mechanical needle valves and analog dials are highly prone to human error and can easily shock delicate internal relay components. Utilizing an **Automatic SF6 Relay Calibration Kit** resolves these operational challenges by digitalizing the entire pressure cycle.

* **Zero Manual Intervention:** All testing processes are completed automatically by the instrument without manual intervention, removing the risk of operator miscalculation.
* **Smooth Closed-Loop Regulation:** The built-in microcomputer utilizes a closed-loop pressure control system to adjust gas volume smoothly, avoiding tedious manual gas circuit regulation operations and protecting fragile microswitches from pressure spikes.

### **4. Why Is Ambient Temperature Calibration No Longer a Limitation?**

Historically, laboratory-grade calibration required controlled 20°C environments to eliminate temperature-induced pressure fluctuations. In field operations, this is highly impractical.

* **Environmentally Independent Processing:** The calibration process does not require a constant temperature room, enabling accurate verification of SF6 gas density relays and pressure gauges across any valid effective temperature range.
* **Dual-Gauge Calibration Utility:** The device features built-in reference programs that offer both ambient temperature pressure gauge calibration and standard 20°C pressure gauge calibration functionalities, allowing field technicians to cross-examine mechanical substation meters instantly on-site.

### **5. How Do Advanced Transition Joints Facilitate Non-Dismantling Tests?**

The labor costs and safety risks associated with completely removing density relays from active switchgears are significant concerns for substation managers. Breaking the original gas seals can introduce moisture or cause permanent gas leaks.

* **Universal Interface Compatibility:** High-performance calibration systems are equipped with a wide variety of transitional joints matching standard global switchgear configurations.
* **In-Situ Field Testing:** Density relays of most models of switches can be calibrated directly on-site without dismantling, ensuring gas loop integrity and vastly accelerating routine maintenance schedules.

### **6. What Expert Solutions Does Wuhan Musen Electric Co., Ltd. Provide?**

As a leading developer of professional power test equipment, Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) engineers advanced diagnostic systems tailored for overseas power engineering contractors and utility operators. The flagship **SF6 Gas Density Relay Calibrator** combines high-precision digital pressure sensors with smart temperature compensation algorithms, ensuring absolute data accuracy under harsh field conditions. Built for rugged substation environments, Musen Electric's portable solutions feature intuitive interfaces, robust internal data storage, and complete test-report export capabilities to support predictive maintenance asset management workflows.

### **7. Frequently Asked Questions Regarding Field SF6 Calibration**

**Q1: How frequently should substation SF6 density relays undergo field calibration?**
A1: International standards generally recommend a calibration cycle of every 1 to 3 years depending on grid voltage levels, environmental exposure, and the age of the switchgear asset.

**Q2: Can this equipment calibrate traditional mechanical pressure gauges?**
A2: Yes. The device integrates dedicated firmware for both ambient and 20°C standard pressure gauge verification, making it a dual-purpose tool for both electronic relays and mechanical dials.

**Q3: What is the risk of performing manual gas regulation during a relay test?**
A3: Manual gas regulation often causes rapid pressure spikes. These sudden pressure shocks can mechanically warp internal bellows or damage the microswitches, leading to a permanent shift in calibration accuracy.

**Q4: Do the transition joints prevent SF6 gas emissions during testing?**
A4: Yes. The specialized transitional joints feature quick-connect, self-sealing mechanisms designed to minimize gas loss, ensuring compliance with strict environmental regulations regarding greenhouse gas emissions.
