How to Achieve Reliable GIS Partial Discharge Simulation Calibration? Expert Solutions for Power Grids

In modern power infrastructure, the operational reliability of Gas Insulated Switchgear (GIS) is the foundation of a stable energy supply. However, the accuracy of the diagnostic equipment used to monitor these systems depends entirely on rigorous testing standards. For power grid engineers and diagnostic laboratories, achieving precise GIS partial discharge simulation calibration is the most critical step in preventing catastrophic equipment failure.

Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides industry-leading solutions for this specialized requirement, ensuring that your monitoring equipment remains compliant with global safety and performance benchmarks.

1. The Fundamental Role of Calibration in GIS Diagnostics

Calibration serves as the "source of truth" for any insulation monitoring system. Without a controlled reference, detection instruments may yield false positives or, worse, fail to identify developing faults. A high-quality simulation system allows engineers to replicate real-world degradation patterns—such as metallic particles, floating potential, and insulating gaps—in a controlled, repeatable environment. By verifying the instrument’s response against these known variables, maintenance teams can trust their field data when performing critical life-cycle assessments on high-voltage assets.

2. Technical Capabilities of the MS-GTU-PD808 System

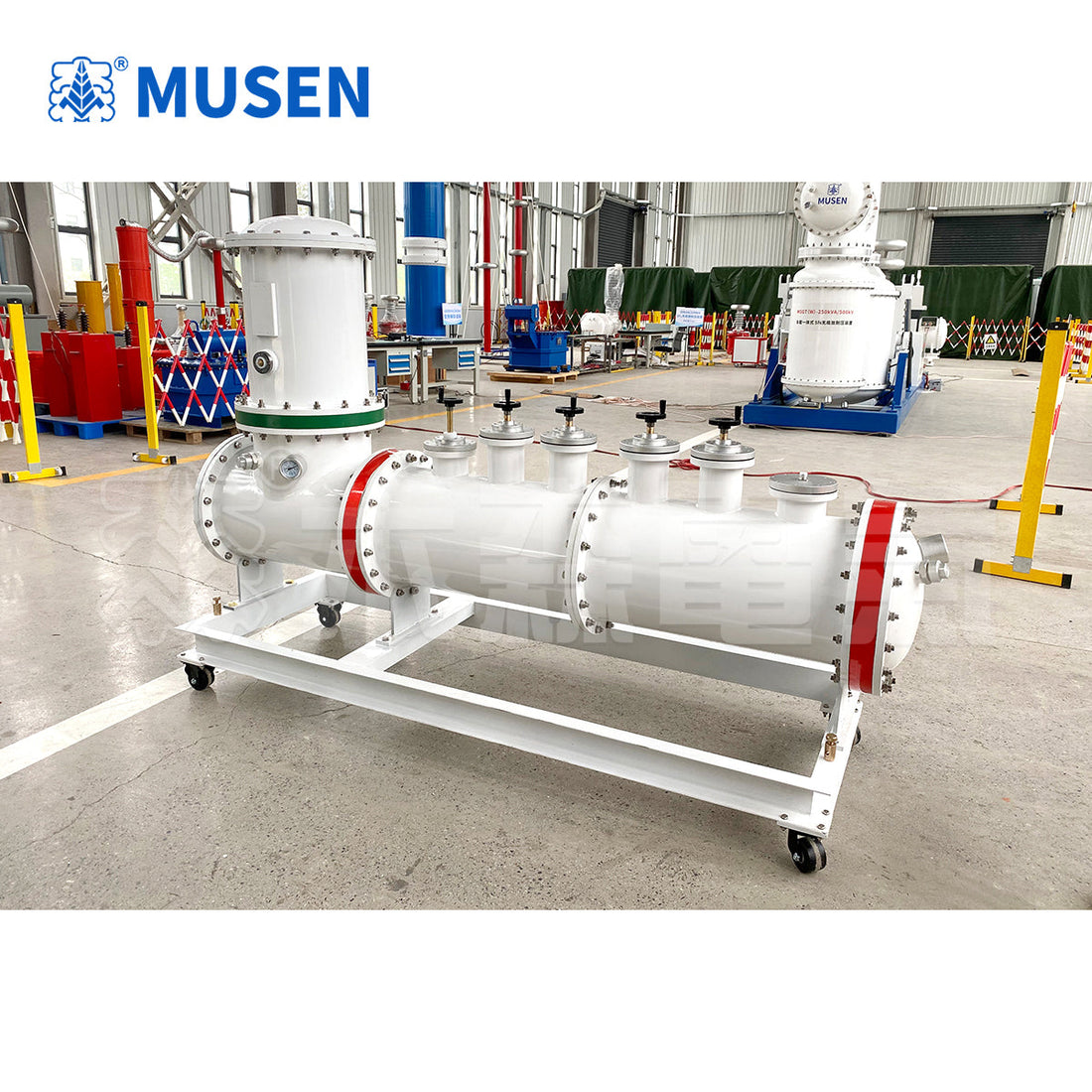

The MS-GTU-PD808, developed by Musen Electric, is designed to meet the extreme demands of high-voltage testing environments. This system allows for the comprehensive GIS partial discharge simulation calibration required to maintain laboratory-grade precision in the field.

Key performance parameters include:

• Comprehensive Fault Simulation: Replicates tip, floating, air gap, particle, and surface discharge types simultaneously.

• High Sensitivity: The entire testing circuit ensures a background noise level of less than 3pC, meeting stringent accuracy requirements.

• Multi-Method Support: Validates performance across pulse current, UHF, ultrasonic, HF, and SF6 gas analysis detection technologies.

• Operational Versatility: Capable of conducting standard power-frequency withstand voltage tests when configured with appropriate bushings.

3. Engineering Advantages for Field and Laboratory Environments

Efficiency in high-voltage testing is often hindered by bulky equipment and complex setup requirements. The MS-GTU-PD808 addresses these pain points through a modular, ruggedized design that prioritizes portability and operator safety. All high-voltage components are housed in a hermetically sealed enclosure, allowing for safe operation even in confined, non-shielded field environments. This capability is essential for organizations that require rapid, on-site verification of their diagnostic tools without the need for expensive, dedicated high-voltage laboratories.

4. Ensuring Data Integrity and Operational Safety

The ultimate goal of performing GIS partial discharge simulation calibration is to ensure that the data collected during routine maintenance is both accurate and actionable. By utilizing the MS-GTU-PD808, operators can standardize their diagnostic workflows. The equipment’s ability to mimic real-world electrical stress ensures that sensors are properly tuned, ultimately reducing the risk of unexpected downtime. With robust design standards that survive long-distance logistics and harsh conditions, this system provides long-term reliability for grid operators, researchers, and equipment manufacturers worldwide.

5. Frequently Asked Questions (FAQ)

Q1: Why is a low background noise level (<3pC) necessary for calibration?

A: Precision sensors require a high signal-to-noise ratio to detect minute discharge signals. A background noise level below 3pC provides a stable, clean baseline, ensuring that the calibration process correctly identifies the sensor's detection limits without interference.

Q2: Can the MS-GTU-PD808 be used for training personnel?

A: Yes, the system’s ability to generate distinct, repeatable discharge types makes it an excellent tool for training maintenance personnel in identifying different GIS fault signatures.

Q3: Is the system compatible with different testing methods?

A: Yes, it is designed for compatibility with industry-standard methods, including pulse current, UHF, ultrasonic, and high-frequency testing, making it a versatile asset for diverse diagnostic needs.

Q4: How does this system ensure safety during high-voltage tests?

A: Musen Electric prioritizes safety by ensuring all high-voltage components are fully enclosed within a secure, grounded, and sealed structure, minimizing the risk of accidental exposure during operation.
