1. What Defines the Reliability of DC Hipot Testing Equipment in High-Voltage Grids?

In the landscape of international power engineering, the integrity of high-voltage insulation is the primary defense against unplanned outages. DC Hipot Testing Equipment is engineered to subject electrical insulation to a controlled, high-voltage DC stress, enabling the measurement of minute leakage currents. Unlike AC testing, DC methodology allows for a deep diagnostic view of dielectric health without the massive power requirements of reactive charging current. For global utility providers and industrial complexes, this equipment is the gold standard for "Go/No-Go" testing of XLPE cables and power transformers.

2. How Does DC High Voltage Testing Detect Subsurface Insulation Defects?

Professional insulation analysis relies on the physics of dielectric absorption. When using a DC High Voltage Tester, the equipment monitors three distinct current components: capacitance charging current, dielectric absorption current, and resistive leakage current. As the charging currents decay, the remaining leakage current provides a direct map of the insulation’s condition. This data-driven approach allows engineers at Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) to pinpoint moisture ingress, thermal aging, or mechanical damage that standard continuity tests would miss.

3. Why is Portability Critical for Modern Electrical Commissioning?

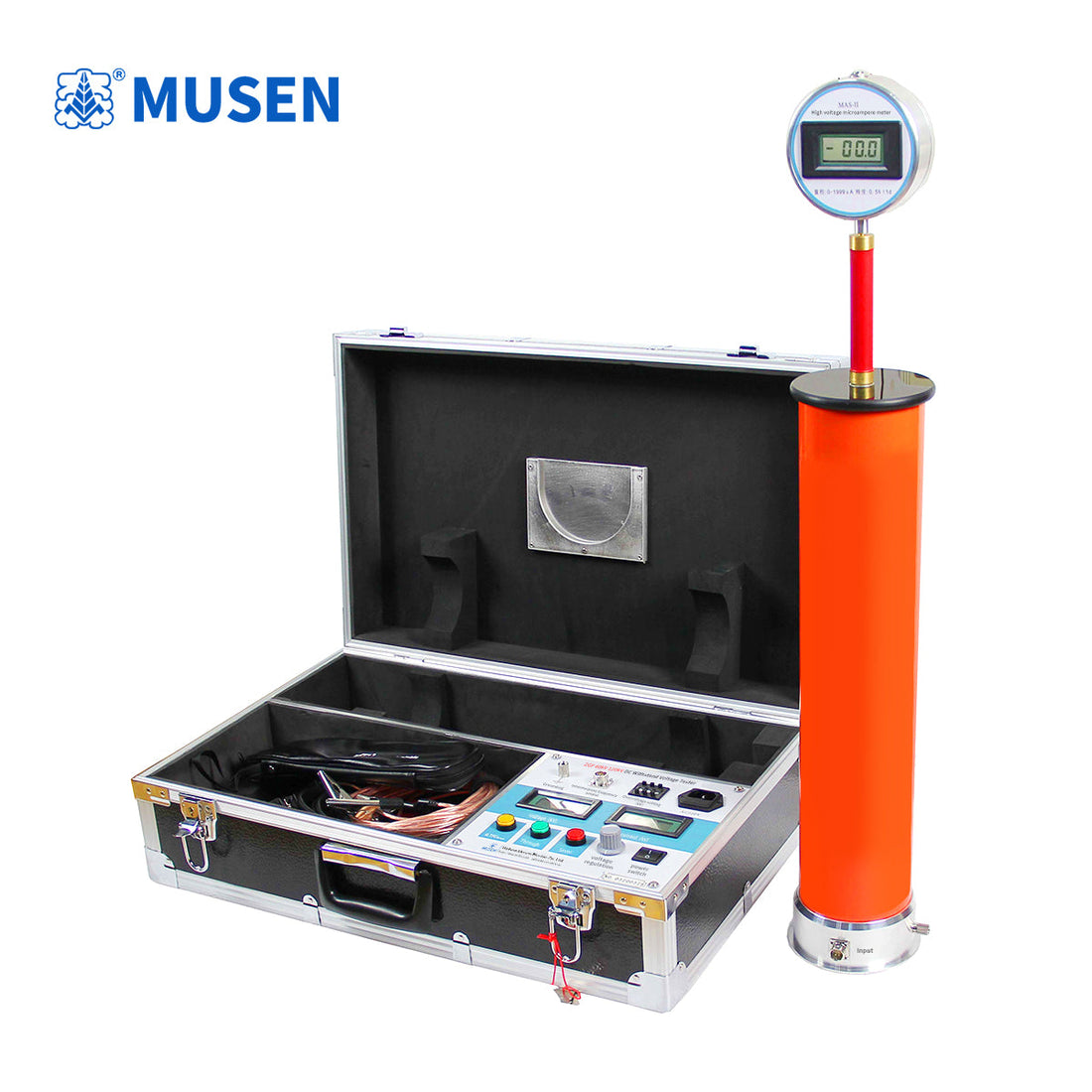

Overseas power projects often involve remote substations and challenging terrains where heavy machinery is impractical. The industry has shifted toward the Portable DC Hipot Tester due to its high power-to-weight ratio. Modern units utilize high-frequency voltage doubling technology and Pulse Width Modulation (PWM) to replace heavy oil-filled transformers. This evolution ensures that field engineers can perform laboratory-grade testing on-site, meeting stringent international standards like IEEE 400 and IEC 60502-2 while maintaining a compact footprint.

4. What Technical Specifications Ensure Maximum Safety and Accuracy?

Professional-grade testing requires equipment that balances precision with robust protection. Our systems at Musen Electric are designed with the following structural advantages:

• Stable and Precise Output: Featuring high-frequency voltage doubling circuits and double closed-loop feedback, ensuring minimal voltage ripple and laboratory-level stability.

• Intuitive Regulation: Full-range smooth voltage adjustment without external dividers; high-resolution digital displays for real-time voltage and current monitoring.

• Comprehensive Safety Logic: Integrated zero-start interlocks, over-voltage, over-current, and breakdown protection with nanosecond-level sensor response to protect both the operator and the asset.

• Specialized Arrester Mode: A dedicated 0.75U function for rapid, one-button testing of Zinc Oxide (ZnO) lightning arresters, streamlining maintenance workflows.

5. Frequently Asked Questions Regarding DC Insulation Testing

Q: Can DC Hipot testing damage XLPE cables? A: When performed according to international standards (applying specific voltage levels for set durations), the test is non-destructive. It is designed to find flaws that would otherwise fail during operational surges.

Q: What is the significance of the 0.75U function in field testing? A: This function is critical for verifying the leakage current of lightning arresters. It automatically calculates 75% of the rated voltage, which is the standard threshold for assessing the degradation of metal oxide varistors.

Q: Why does Musen Electric prioritize high-frequency PWM technology? A: PWM (Pulse Width Modulation) allows for much finer control over the voltage output, preventing "voltage overshoot" which could accidentally stress the insulation beyond the test parameters.

Q: How does the equipment handle a dielectric breakdown? A: The system features a nanosecond-level sensing relay that immediately cuts the high-voltage output upon detecting a sudden surge in current, preventing physical damage to the equipment under test.
