How to Ensure Power Plant Reliability with Primary Injection Testing Equipment?

  Primary Injection Testing Equipment, High Current Generator, primary current injection, Musen Electric, substation testing, electrical commissioning

  Discover why global power utilities rely on professional Primary Injection Testing Equipment for safety. Learn technical specifications, structure options, and how to verify protection systems accurately.

1. Why is Primary Injection Testing Vital for Grid Stability?

In the field of international power engineering, verifying the integrity of a protection system is a high-stakes task. While secondary injection tests the logic of a relay, Primary Injection Testing Equipment is the only way to validate the entire circuit. By injecting a high current into the primary side of the system, engineers can identify faults in current transformers (CTs), verify wiring accuracy, and ensure that circuit breakers trip under real-world conditions. For power plants and large-scale industrial facilities, this equipment is a fundamental requirement to prevent catastrophic failure during an actual overcurrent event.

2. Technical Evaluation: Choosing the Right Current Output for Your Facility

Selecting the appropriate hardware depends on the maximum rated current of the assets under test. Modern engineering standards demand precision and stability. Musen Electric provides industrial-grade solutions that offer digital control and high-accuracy measurement. Depending on the application—whether it is a small distribution transformer or a massive generator step-up transformer—the current requirements vary significantly.

3. Structural Efficiency: Integrated vs. Split-Type Systems

Logistics in power plant environments often dictate equipment choice. Primary Injection Testing Equipment can be configured in two primary formats to meet site-specific challenges:

• Integrated Structure: Best for laboratory settings or accessible ground-floor substations where all components are housed in a single, mobile unit.

• Split-Type Structure: Preferred for overseas engineering projects where portability is key. The control unit and the high-current transformer are separated, allowing teams to transport equipment through narrow passages or to elevated platforms more easily.

4. Industrial Specification and Product Capabilities

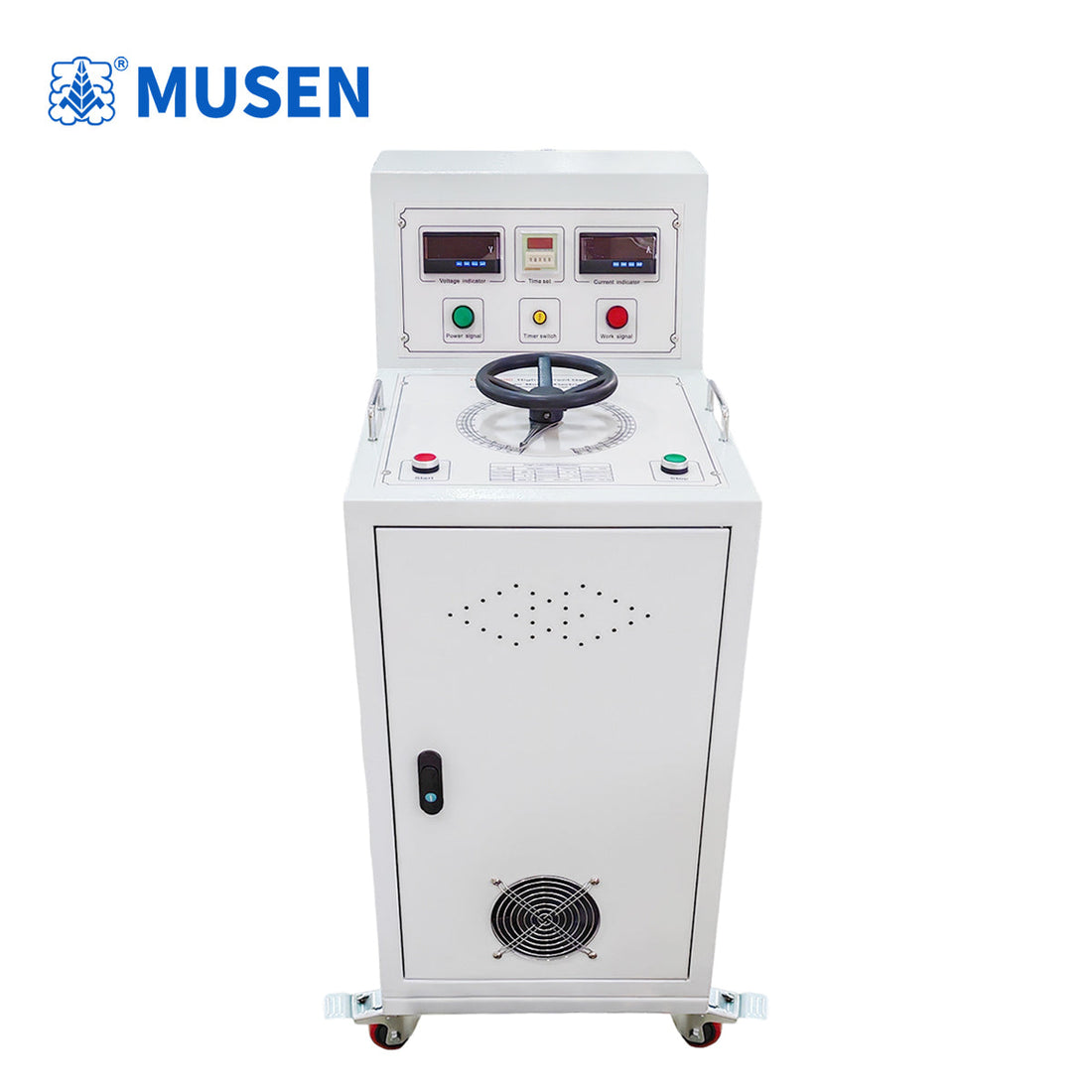

As a mandatory tool for electrical testing in high-current environments, the High Current Generator (大电流发生器) from Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) is engineered for durability and precision. These systems are widely deployed in power plants, distribution substations, electrical manufacturing facilities, and research laboratories.

Available Specifications:

• Standard Models: 500A, 1000A, 2000A, 2500A, 3000A, 4000A, 5000A, 6000A, 8000A, 10000A.

• Customization: Units can be tailored as split or integrated structures based on the specific thermal and mechanical demands of the project.

5. Expert FAQ: Addressing Common Technical Concerns

Q: Can this equipment be used for temperature rise tests?

A: Yes. High-capacity models are designed for continuous output, making them ideal for testing the thermal limits of busbars and connectors over extended periods.

Q: Does the equipment support 50Hz and 60Hz grids?

A: Musen Electric systems are compatible with international power standards, ensuring accurate performance across different regional grid frequencies.

Q: What is the benefit of using an 8000A or 10000A model?

A: These ultra-high current models are necessary for validating the high-set instantaneous trip settings of large power plant breakers, where lower current kits would fail to trigger a response.
