Why Do Power Transformers Fail Prematurely, and How Can You Detect Winding Defects Instantly?

Transformer Winding Resistance Meter, Transformer DC Winding Resistance Tester, Transformer Ohmmeter, 10A/20A/40A Winding Resistance Test Set, DC Resistance Tester, winding defects, preventive maintenance

Power transformer failures disrupt grids globally. Discover how international power utilities use a Transformer Winding Resistance Meter to pinpoint manufacturing defects, broken strands, and high-resistance joints before they cause catastrophic outages.

### 1. What Are the Hidden Mechanical and Electrical Threats inside Power Transformers?

In large-scale power transmission, unexpected transformer failure is one of the most financially devastating events an electrical utility can face. Many grid operators overlook the fact that structural degradation often begins long before a catastrophic failure occurs, usually starting as minor electrical or mechanical deviations inside the tank. During factory assembly or years of thermal cycling, several critical hidden threats can develop:

* **Sub-conductor Selection Flaws:** Small variations in copper purity or inconsistent cross-sectional areas introduced during manufacturing alter the nominal resistance across parallel paths.
* **Welding and Joint Degradation:** Poor brazing or weak cold-welds at lead connections, bushing terminals, or tap switch junctions introduce highly localized contact resistance.
* **Loose Connections:** Mechanical vibrations and short-circuit forces cause the contact interfaces of De-energized Tap Changers (DETC) and On-Load Tap Changers (OLTC) to loosen or oxidize.
* **Conductor Strand Breakage:** High mechanical stress can completely sever individual strands within multi-strand transposed cables, drastically lowering the phase current capacity.

To find these faults without dismantling the active tank, international engineering standards rely on precision electrical diagnostics. Utilizing an advanced **Transformer Winding Resistance Meter** serves as the definitive field verification method to detect these manufacturing anomalies and operational hazards before they lead to permanent asset destruction.

### 2. How Does Co-Excitation and Simultaneous Three-Phase Analysis Accelerate Substation Testing?

Field testing large power transformers can be challenging because high inductive currents take a long time to stabilize, often delaying substation maintenance windows. Traditional point-to-point single-phase testing methods prolong this process and can introduce thermal errors. To address these field challenges, Musen Electric ([www.musenelectric.com](https://www.musenelectric.com)) integrates two advanced automation features into its high-tier diagnostic equipment:

* **Integrated Core Magnetization & Co-Excitation:** The instrument applies a magnetic assistance method that charges both high-voltage and low-voltage windings simultaneously. This quickly saturates the heavy core, reducing the current stabilization window from hours to minutes.
* **Simultaneous Multi-Channel Acquisition:** For Yn, Y, and Delta (Δ) configurations, the system runs a three-phase test simultaneously. This simultaneous tracking speeds up testing by up to 70% and ensures all data is collected under identical thermal conditions, eliminating temperature-driven reading errors.

When the measurement cycle is complete, the instrument engages an automatic demagnetization process. This safely removes residual magnetism from the iron core, preventing severe inrush currents when the transformer is re-energized and protecting the asset from mechanical shock.

### 3. Which Technical Parameters Validate Data Stability and Ensure Field Accuracy?

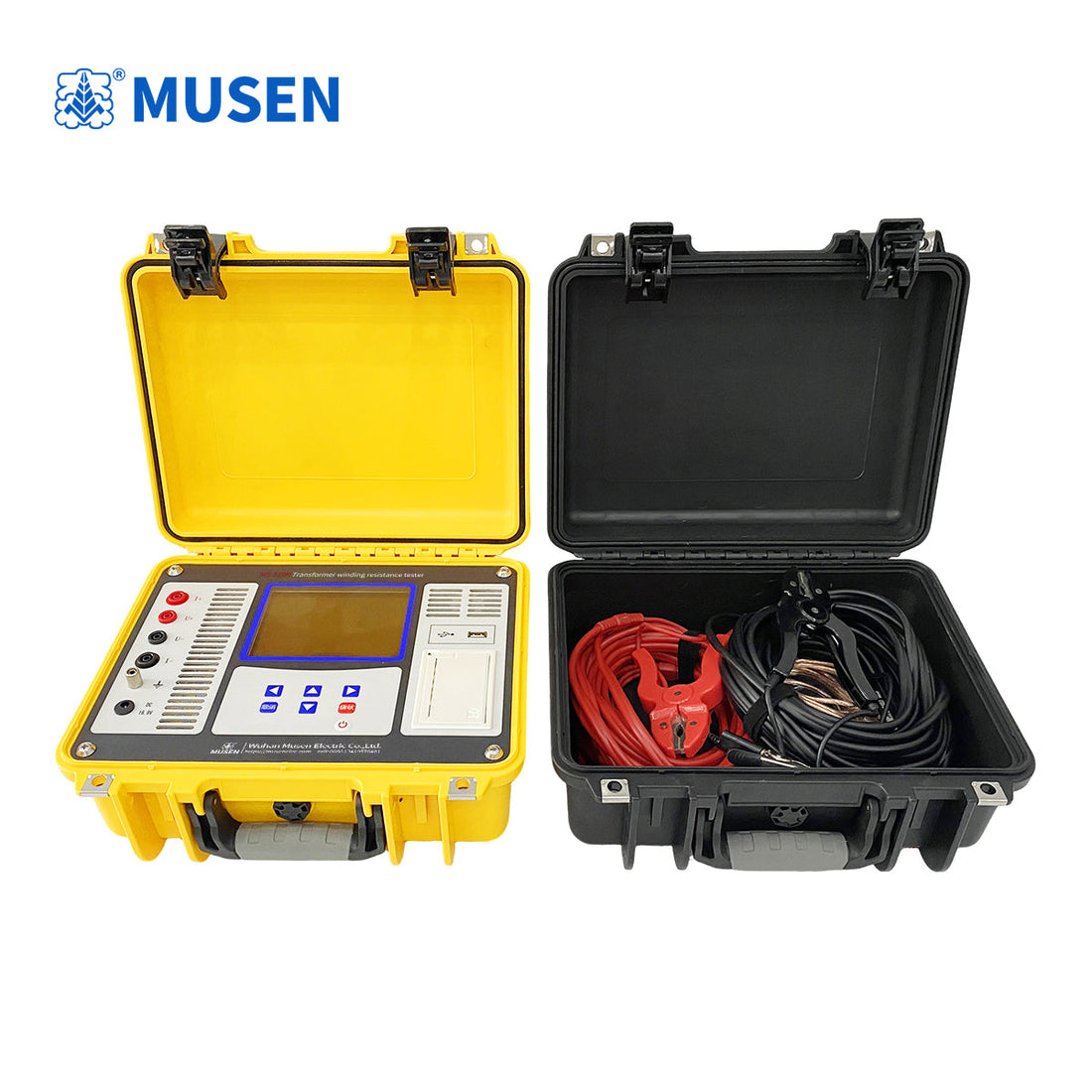

For procurement managers and substation engineers, purchasing field hardware requires choosing equipment with the right balance of current delivery and automated analytical capabilities. High-inductance transmission assets require a versatile diagnostic system to ensure repeatable data accuracy. Musen Electric engineered the **10A/20A/40A Winding Resistance Test Set** to meet these demanding substation environments through specific quantitative capabilities:

* **Dual-Parameter Range Optimization:** With a maximum current output of 20A paired with a wide resistance range reaching up to 25kΩ, this system allows testing teams to efficiently service a broad mix of assets, including large power generation units, high-voltage transmission networks, and high-impedance distribution components.
* **Automated Three-Phase Unbalance Calculations:** The internal microprocessor automatically computes the real-time three-phase unbalance ratio. This allows field crews to quickly compare results against international standards like IEEE C57.152 and IEC 60076-1, which typically require a limit of less than 2% deviation between phases.
* **Real-Time Stability Tracking:** To prevent errors caused by transient currents, the system tracks and displays the resistance change rate at 5-second, 15-second, and 30-second intervals. This metrics-driven validation helps operators verify that the circuit has stabilized before logging data.

The safety architecture is reinforced with multi-tier hardware protection, including active Counter-Electromotive Force (Back-EMF) safe discharge systems, open-circuit protection, and an automatic power-off discharge sequence to protect both operators and the connected equipment.

### 4. Frequently Asked Questions Regarding Transformer Winding Diagnostics

**Q1: How do loose connections in tap changers affect the overall performance of a transformer?**
Loose mechanical connections or contact oxidation inside a tap changer create localized high resistance. When high load currents pass through these compromised points, it generates severe thermal energy. This localized heating accelerates oil degradation, generates combustible gases (such as ethylene and acetylene), and can eventually lead to a thermal runaway fault inside the tank.

**Q2: Why is tracking the resistance change rate at 5s, 15s, and 30s critical for preventing data misinterpretation?**
Because large power transformers are highly inductive, the injected DC test current requires time to reach a steady state. Tracking the resistance change rate over 5, 15, and 30 seconds provides clear validation that the measurement circuit has stabilized. This data-driven step prevents technicians from logging premature, fluctuating readings during initial transient states, ensuring high data accuracy.

**Q3: What are the dangers of re-energizing a transformer that has high residual core magnetism?**
When a transformer is re-energized while its core retains a high level of residual magnetism from DC testing, it can trigger a severe asymmetric excitation inrush current. This inrush current can exceed the rated full-load current by several times, causing severe mechanical stress on the windings, triggering nuisance tripping of protection relays, and potentially compromising grid stability.

**Q4: Can a single test instrument handle both high-current transmission assets and high-resistance auxiliary systems?**
Yes. A versatile tester designed with a wide measurement range, such as an output current of up to 20A combined with an internal resistance range reaching 25kΩ, provides excellent flexibility. This capabilities mix allows field crews to effectively handle low-resistance power transformer windings as well as high-resistance auxiliary systems, station service transformers, and voltage transformers with a single diagnostic tool.
