Is Your Transformer Structurally Sound? Detecting Winding Deformation with FRA Testing

Power Transformer FRA Test Equipment, SFRA Tester, Transformer FRA Test Set, Winding Deformation Analysis, Wuhan Musen Electric

Learn how the Power Transformer FRA Test Equipment identifies hidden structural faults in 63kV-500kV transformers. Explore the technical advantages of SFRA Tester technology for grid reliability.

1. Why is Winding Deformation the Silent Killer of Power Transformers?

High-voltage transformers ranging from 63kV to 500kV are the backbones of regional power grids. However, they are frequently exposed to extreme electrodynamic forces during external short circuits or seismic events. These forces can cause physical alterations—such as axial displacement, radial tilting, or twisting—that are invisible to the naked eye and undetectable by standard electrical tests. Power Transformer FRA Test Equipment provides a non-destructive diagnostic method to visualize the internal mechanical state of the transformer. By analyzing the frequency response "signature," engineers at Wuhan Musen Electric (www.musenelectric.com) can pinpoint structural irregularities before they escalate into catastrophic insulation failures.

2. How Does an SFRA Tester Validate Internal Structural Integrity?
The SFRA Tester (Sweep Frequency Response Analyzer) utilizes the principle that every transformer winding has a unique set of electrical components: resistance, capacitance, and inductance. When the physical geometry of the winding changes, these electrical parameters shift, altering the frequency response curve. This method is internationally recognized for its sensitivity. By comparing current test data against the "birth certificate" (initial factory test) or previous maintenance records, the Sweep Frequency Response Analyzer identifies even millimeter-level shifts in the winding assembly, providing a data-driven basis for repair or replacement decisions.

3. What Technical Benchmarks Define High-Performance FRA Testing?
For global power utilities and engineering firms, precision and adaptability are the primary requirements for diagnostic tools. A professional Transformer FRA Test Set must handle the complex electromagnetic environments found in 500kV substations. The equipment developed by Wuhan Musen Electric is engineered to meet these rigorous international standards through a structural and digitalized approach. The system ensures that the "fingerprint" of the transformer is captured with high repeatability, allowing for long-term trend analysis and condition-based maintenance (CBM) strategies that reduce unplanned downtime and extend asset life.

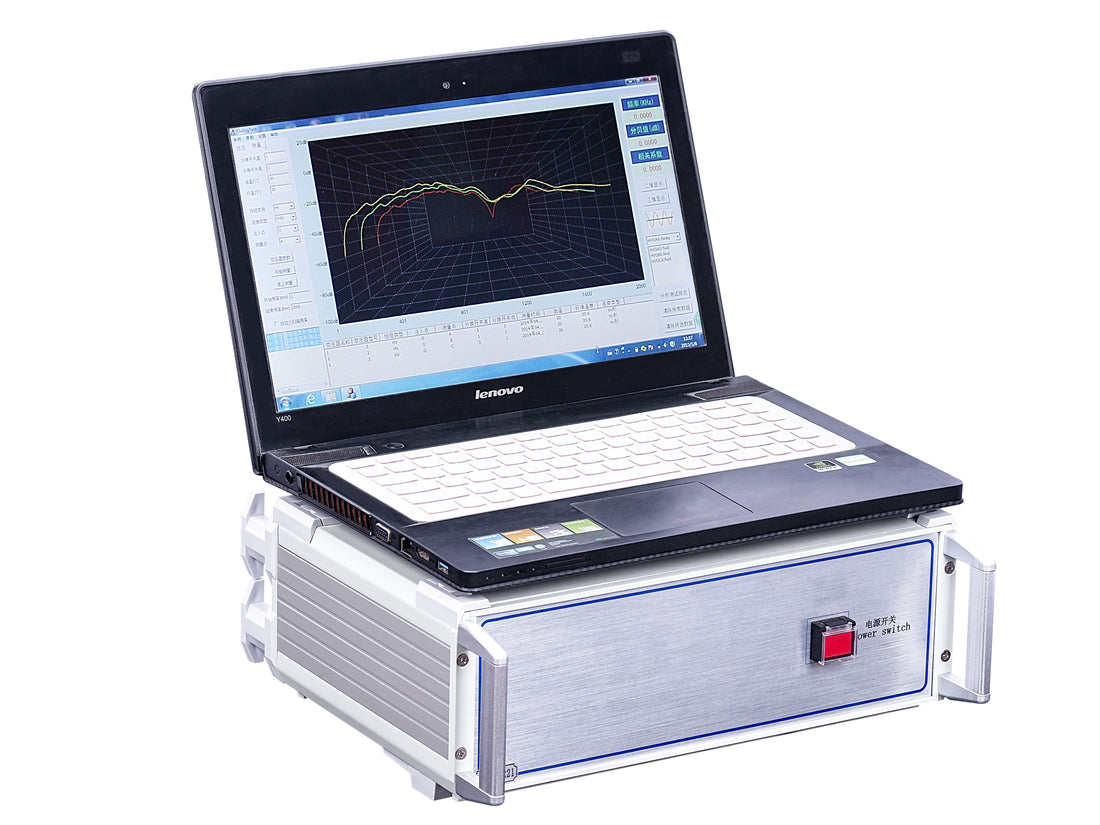

4. Integrated Measurement Systems and Technical Specifications
To ensure comprehensive diagnostics, the testing instrument incorporates advanced signal processing and flexible scanning capabilities:

Dual Measurement Systems: The unit features both linear and sectional sweep measurement systems, ensuring full compatibility with various global technical methodologies and historical data formats.

Extended Frequency Range: It supports multiple linear sweep functions with a maximum scanning frequency of 1MHz, covering the full spectrum required for detailed structural resonance analysis.

High-Resolution Data Points: Frequency scanning intervals are adjustable to 0.25kHz, 0.5kHz, or 1kHz. This granularity allows for more sophisticated analysis of the transformer’s internal deformation, providing more data points where structural sensitivity is highest.

5. Frequently Asked Questions (FAQ)
Q1: Can FRA testing be performed on a transformer that is currently energized?
No. To ensure safety and accuracy, the transformer must be completely de-energized and disconnected from the high-voltage busbars. The FRA method measures the passive RLC network of the windings, which requires a quiet electrical environment.

Q2: What is the primary difference between Linear and Sectional sweep modes?
Linear sweep provides a consistent resolution across the entire frequency range, which is ideal for general structural mapping. Sectional sweep allows for higher resolution in specific frequency bands where faults are more likely to manifest, offering a more targeted diagnostic approach.

Q3: How does temperature affect the results of an FRA test?
While FRA is primarily sensitive to mechanical changes, extreme temperature variations can slightly shift the dielectric constant of the insulation. It is a best practice to record the oil temperature during testing to ensure accurate comparisons with historical baseline data.

Q4: Is the equipment portable enough for remote substation work?
Yes. Modern test sets are designed with field ruggedness in mind, featuring lightweight enclosures and high-speed data interfaces to allow for rapid testing and immediate on-site analysis by engineering teams.
