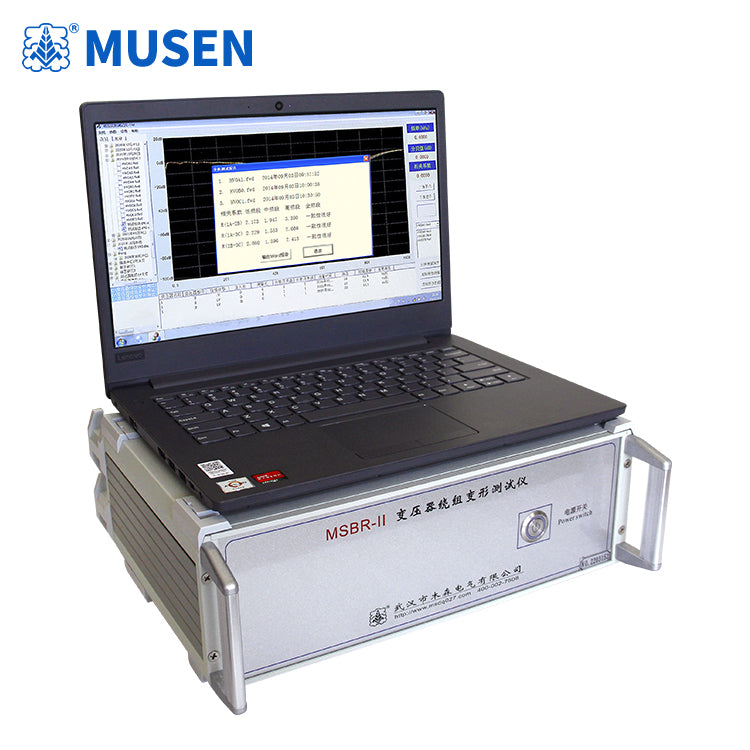

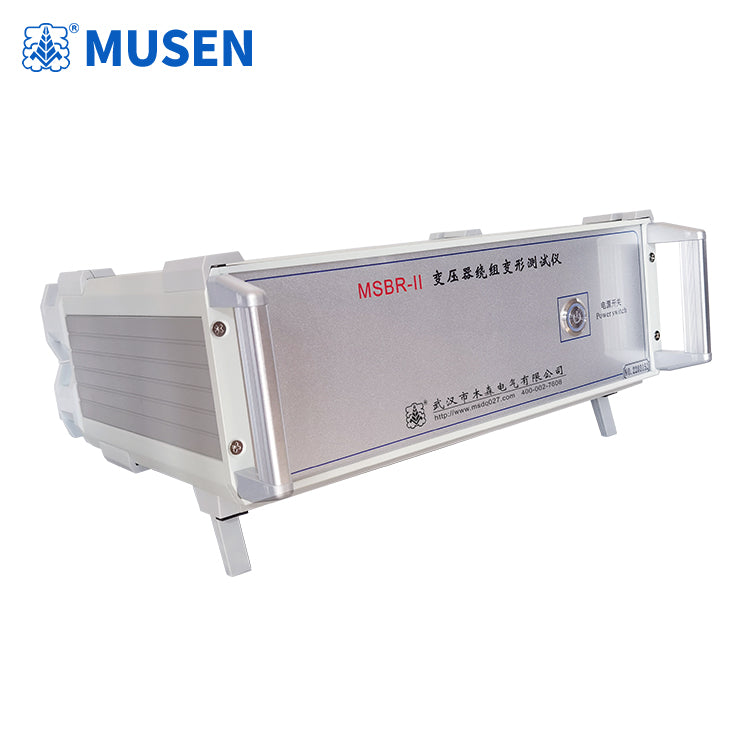

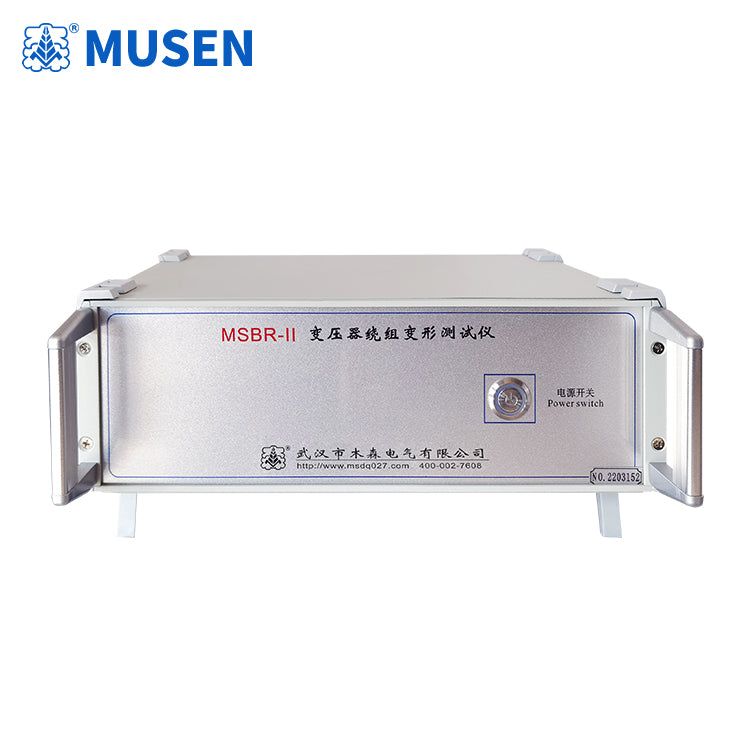

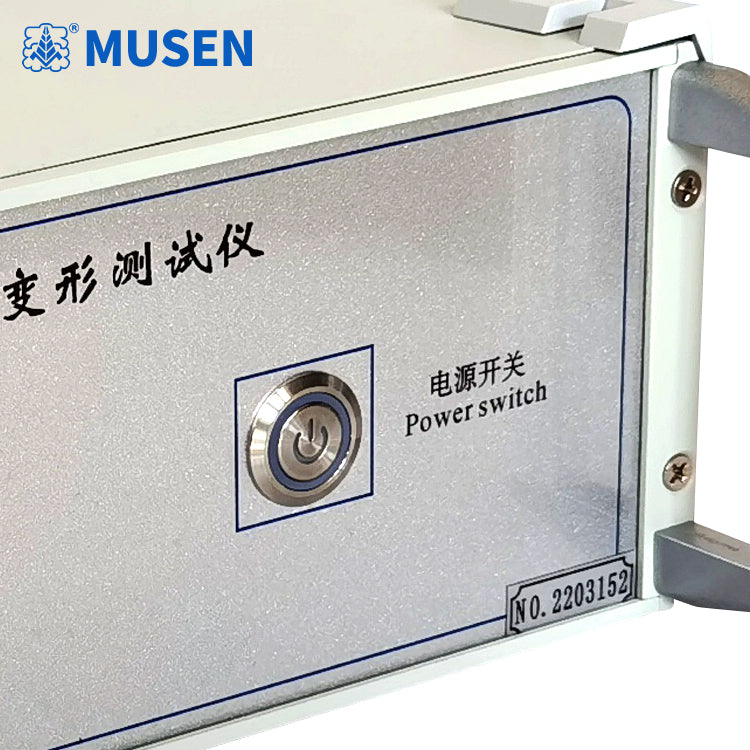

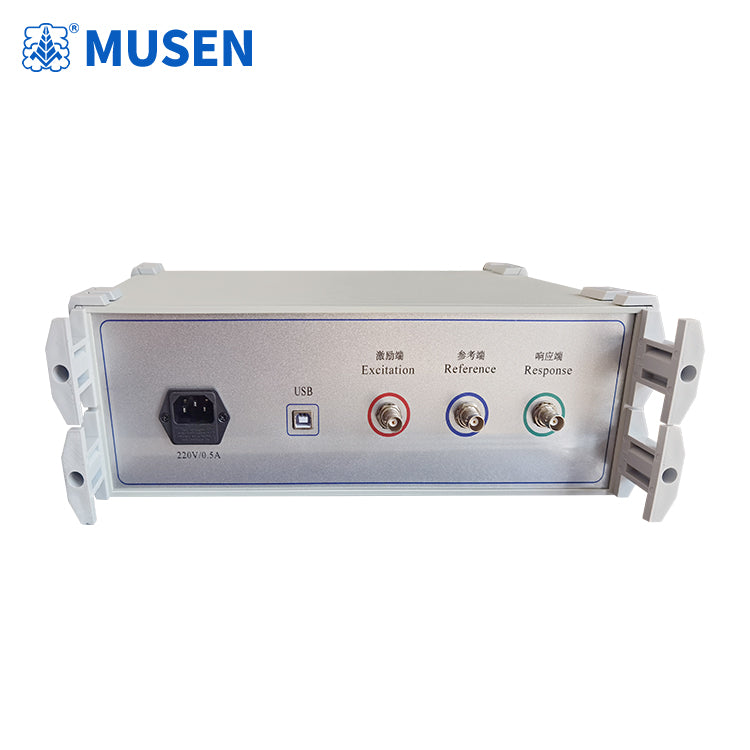

MSBR-II Transformer winding deformation tester

The transformer winding tester, developed based on the response analysis method, is a novel non-destructive testing device for internal faults in transformers. It is suitable for detecting internal structural faults in power transformers ranging from 63kV to 500kV.
1. Scanning Modes:
① Linear frequency sweep measurement range: (1kHz) - (1MHz)
② Segmented frequency sweep measurement ranges:
(0.5kHz) - (1kHz)
(0.5kHz) - (10kHz)
(10kHz) - (100kHz)
(100kHz) - (500kHz)
(500kHz) - (1000kHz)
2. Amplitude Measurement Range: (-100dB) to (+20dB)
3. Amplitude Measurement Accuracy: +20dB to -60dB ±1dB, -60dB to -100dB ±2dB
4. Scanning Frequency Accuracy: 0.01%
5. Signal Input Impedance: 1MΩ
6. Signal Output Impedance: 50Ω
7. In-phase Test Repeatability: 99.5%
