Is Your Transformer Failing? How to Use a Transformer Ohmmeter to Detect Internal Flaws?

 Transformer Ohmmeter, Winding Resistance Testing, Transformer Maintenance, Transformer DC Winding Resistance Tester, Power Grid Reliability
 Learn how to identify critical transformer defects like loose connections and broken strands using a Transformer Ohmmeter. A professional guide for global utility engineers and maintenance experts.

### **1. Why Is Precision Winding Resistance Testing Critical for Grid Stability?**

In the global power infrastructure sector, the reliability of a substation hinges on the integrity of its transformers. Even a minor deviation in the electrical path can lead to catastrophic failure. A **Transformer Ohmmeter** is the primary tool used by engineers to verify the condition of the internal conductive circuit. Unlike standard resistance meters, these professional-grade instruments provide the high-stability DC current required to overcome the massive inductance of power windings, allowing for the detection of micro-ohm changes that signal early-stage deterioration.

### **2. Can a Transformer Ohmmeter Identify Hidden Manufacturing Defects?**

Manufacturing flaws, such as cold solder joints, gas pockets in brazed connections, or improperly tightened internal bolts, often remain dormant during initial commissioning. However, under high-load thermal expansion, these points become high-resistance "hot spots." By utilizing a **Transformer DC Winding Resistance Tester**, maintenance teams can establish a baseline profile. A resistance variance of more than 2% between phases, or a 1% shift from factory records, typically indicates:

* **Winding Deformity:** Mechanical shifts caused by short-circuit forces.
* **Loose Connections:** Vibrations during transport or thermal cycling affecting bolted busbars.
* **Broken Strands:** Damage to individual strands in Continuously Transposed Conductors (CTC).

### **3. What Are the Technical Standards for Reliable Field Diagnostics?**

According to IEEE C57.152 and IEC 60076-1 standards, accuracy in resistance measurement is non-negotiable. Modern testing involves the Kelvin Four-Wire method to eliminate lead resistance errors. For large-scale utility assets, the **Transformer Ohmmeter** must provide sufficient compliance voltage to saturate the magnetic core quickly. Data integrity is further ensured by normalizing all readings to a reference temperature (usually 75°C), as copper resistance varies significantly with thermal changes. This structured approach allows asset managers at Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) to predict the Remaining Useful Life (RUL) of the equipment.

### **4. Advanced Testing Solutions for Global Power Engineering**

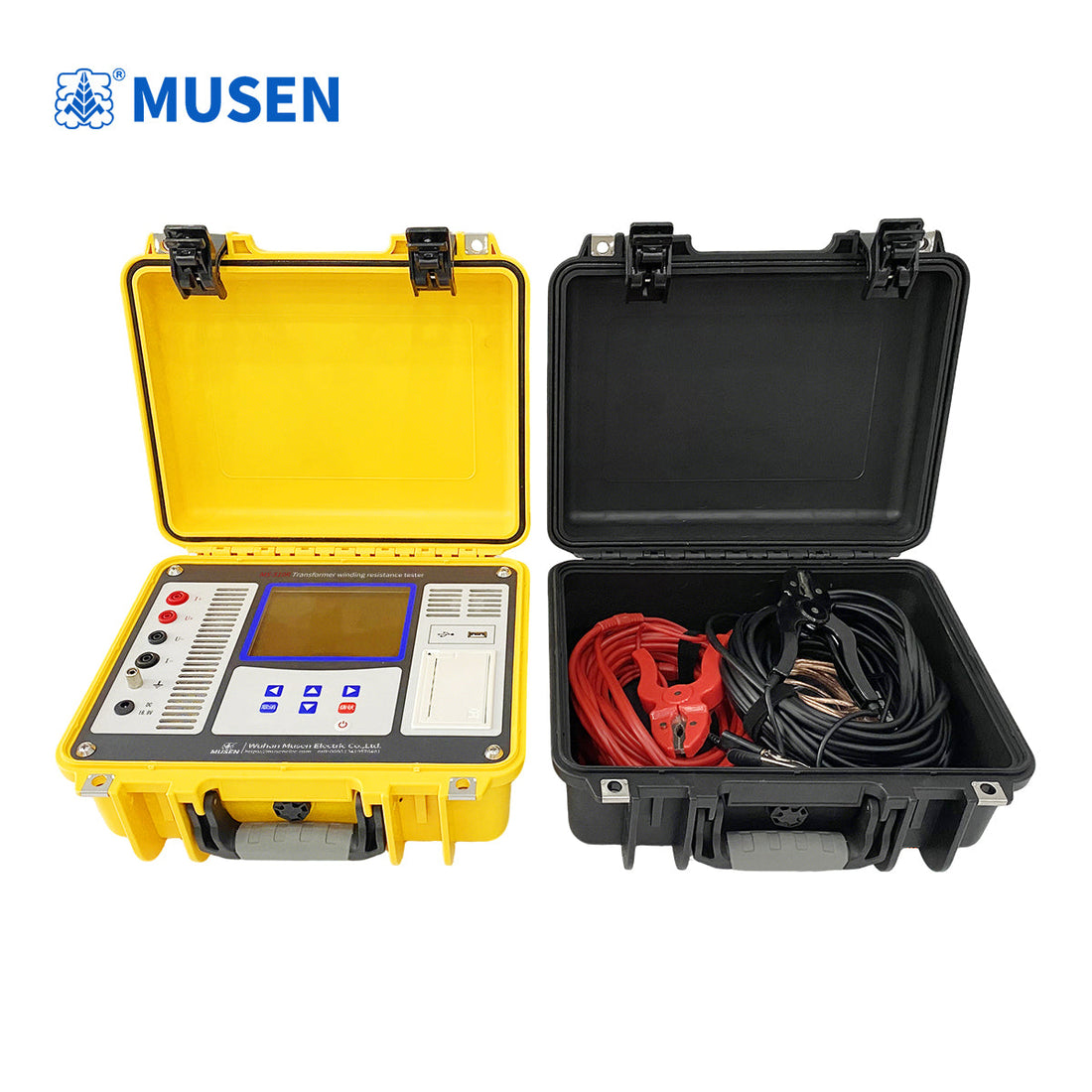

For professional testing agencies and utility departments, Wuhan Musen Electric provides high-performance diagnostic hardware designed for the rigors of the field. Our instruments are engineered to deliver laboratory-grade precision in substation environments.

* **Power Versatility:** Adaptive 220V AC or internal Lithium-battery power, capable of testing hundreds of units on a single charge.
* **High-Output Range:** Six selectable current modes with a maximum 10A output and 25V compliance voltage for rapid core saturation.
* **Precision Measurement:** A wide diagnostic range from 500uΩ to 50KΩ with high-accuracy resolution.
* **Integrated Intelligence:** Automatic temperature conversion and a robust safety matrix featuring back-EMF discharge, open-circuit protection, and thermal alarms.

### **5. Frequently Asked Questions Regarding Transformer Resistance Testing**

**Q: Why does the resistance reading take so long to stabilize?**
A: Transformers are highly inductive. The stabilization time is determined by the L/R time constant. High-quality testers use higher voltage outputs to force the current to its target value faster, significantly reducing wait times during field inspections.

**Q: How often should winding resistance tests be performed?**
A: Industry best practice suggests testing during initial commissioning, after any significant short-circuit event, and as part of a 3-to-5-year preventative maintenance cycle.

**Q: Is it safe to test a transformer while it is still hot?**
A: Yes, but the temperature must be accurately recorded. Because resistance changes with temperature, the "hot" reading must be mathematically converted to the standard reference temperature (75°C or 85°C) to make a valid comparison with historical data.
