Solving the Silence: Why Modern HV Assets Demand Ultra-Low PD Testing
In the world of high-voltage engineering, silence is more than golden—it is a sign of structural integrity. As global power grids push the limits of 110kV and 220kV transmission, the ability to detect minute insulation flaws before they escalate into catastrophic failures has become a non-negotiable standard. The Partial Discharge-Free High-Voltage Test Transformer
has emerged as the industry leader for this task, providing the "quiet" electrical environment necessary to hear the smallest whispers of insulation distress.
What is the Functional Scope of This Technology?
Modern testing facilities require versatility. This integrated system is engineered to handle a broad spectrum of AC withstand and diagnostic tests for high-criticality assets:
- ➤ Power Transformers: Comprehensive testing for 110kV and 220kV voltage classes.
- ➤ Gas Insulated Switchgear (GIS): Precision AC withstand and PD analysis in a shielded environment.
- ➤ Instrument Transformers: High-accuracy validation for current and potential transformers.
- ➤ Capacitive Bushings: Insulation aging and quality control assessments.

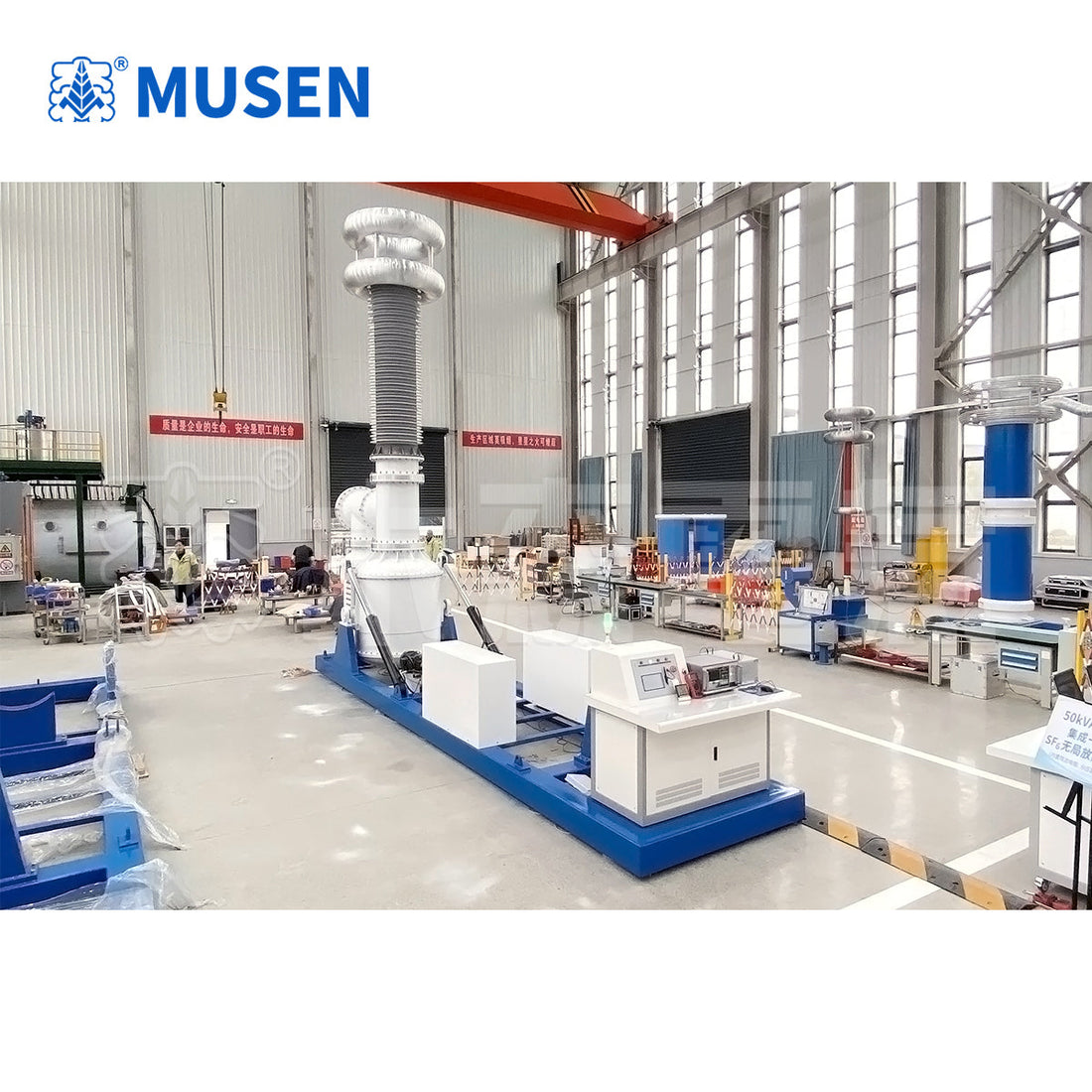

Innovative Engineering: The One-Click Hydraulic Transformation
Logistical efficiency is often the bottleneck in high-voltage testing. Conventional equipment is bulky and difficult to orient, often requiring external cranes and hours of labor. This system revolutionizes the workflow with an intelligent hydraulic lifting system. With a single-button command, the main host unit can transition from its horizontal transport mode to its vertical operating position. This not only optimizes space but ensures the internal SF6 insulation remains stable and ready for immediate use upon arrival at the site.
Decoding the Integrated Architecture
True "PD-Free" status cannot be achieved through a patchwork of components. It requires a singular, harmonious design. The architecture of the Partial Discharge-Free High-Voltage Test Transformer integrates the following key elements into a unified, high-performance loop:
✦ Intelligent Control Console: The operator's interface for voltage regulation and safety monitoring.
✦ Main Test Transformer: The high-precision core utilizing SF6 gas for maximum insulation.
✦ Capacitive Voltage Divider: Integrated directly to provide real-time, low-loss measurement.
✦ Coupling Capacitor & Current-Limiting Reactor: Built-in to eliminate the corona noise typically found in external wiring.
✦ Power Isolation Transformer: Filters out high-frequency interference from the supply grid.
Top 6 Advantages of Gas-Insulated Integrated Systems
The industry is rapidly shifting away from traditional oil-immersed units toward integrated SF6 solutions. Here is why engineers prefer this new standard:
1. Superior Safety & Fire Protection
SF6 is an inert, non-flammable gas. Unlike oil-filled units, there is zero fire risk, making it ideal for indoor substations and high-safety environments.
2. Extreme Weight Efficiency
The integrated design dramatically reduces the overall weight and volume compared to modular sets, facilitating easier shipping and on-site positioning.
3. Maintenance-Free Operation
The system is clean and oil-free. Maintenance is simplified to periodic monitoring of gas pressure and density—no oil testing or replacement required.
4. Environmental Immunity
Being fully sealed within a metal enclosure, the test circuit is completely isolated from humidity, altitude, and ambient pollution.
The Breakthrough in Sensitivity: 10pC vs. 5pC
The true test of a "PD-Free" system is its background noise. In traditional modular setups, the high-voltage leads connecting the transformer, resistor, and divider create their own discharge points. This usually results in a background noise floor of around 10pC.
By contrast, our integrated design houses all these components within a single pressurized tank. This radical elimination of external HV wiring brings the total partial discharge level to less than 5pC. This 50% reduction in noise allows engineers to detect deep-seated insulation defects that would otherwise be masked by equipment interference.
Smart Protection: Safeguarding Your Assets
High-voltage testing is a high-stakes environment. Our system is equipped with an automated protection suite to ensure that neither the operator nor the equipment is at risk during a breakdown.
- ★ Over-Current & Over-Voltage Protection: Instantaneous circuit interruption within milliseconds of a flashover.
- ★ Auto-Zero Interlock: The system cannot be energized unless the voltage regulator is in the zero position.
- ★ Gas Density Monitoring: Constant tracking of SF6 levels with automatic alarms for any pressure drops.
The Professional Choice for Global Standards
The Partial Discharge-Free High-Voltage Test Transformer is designed for the modern era of the power grid. By combining the safety of SF6 gas, the convenience of a hydraulic lifting system, and the precision of an integrated < 5pC noise floor, it provides a future-proof solution for utilities and manufacturers alike.
| Technical Specification | Performance Detail |
|---|---|
| Voltage Class | 110kV to 220kV Systems |
| Partial Discharge Level | ≤ 5pC at Rated Voltage |
| Insulation Medium | SF6 Gas (Flame Retardant) |
| Structure | Fully Integrated / Hydraulic Lift |
Frequently Asked Questions (FAQ)
1. Can this transformer be used for GIS field testing?
Absolutely. Its compact, integrated design and hydraulic vertical/horizontal transformation make it specifically suited for the limited space available in GIS substations during site commissioning.
2. How often does the SF6 gas need to be replaced?
Under normal operating conditions, the gas does not need to be replaced. It is a sealed system. You only need to monitor the gas density gauge to ensure the pressure remains within the specified operating range.
3. What is the advantage of a built-in coupling capacitor?
A built-in coupling capacitor eliminates the need for extra high-voltage cables and external connections, which are primary sources of corona discharge and background noise, ensuring a much higher testing sensitivity.
4. Does the system automatically shut down during a specimen failure?
Yes. The intelligent control console features an over-current and over-voltage protection circuit that automatically cuts the power and returns the regulator to zero if the test object experiences an insulation breakdown.
```
