How to Ensure Transformer Reliability with Effective Turns Ratio Maintenance?

 Turns Ratio Tester, Transformer Test, Transformer Testing Device, Power Transformer Maintenance, TTR Testing

  Discover professional strategies for routine transformer turns ratio maintenance. Learn how precision testing prevents grid failures and optimizes asset life for power engineering projects.

The operational integrity of high-voltage assets is the backbone of global energy infrastructure. Among various diagnostic protocols, the verification of winding integrity stands out as a critical preventive measure. Implementing Turns Ratio Tester protocols allows engineering teams to identify internal structural shifts, insulation degradation, and manufacturing deviations before they manifest as catastrophic system failures. This guide, provided by Wuhan Musen Electric Co., Ltd. (www.musenelectric.com), outlines the data-driven approach to maintaining power transformers through advanced ratio analysis.

1. Why is Routine Ratio Verification Critical for Grid Stability?

A transformer's performance is fundamentally dictated by its ability to maintain a precise voltage correlation between windings. Over time, mechanical stresses from through-faults or thermal cycling can lead to physical winding deformation. Regular use of a Turns Ratio Tester provides a non-destructive window into the core and coil assembly. By monitoring the ratio deviation—typically required to stay within ±0.5% of the nameplate value—utilities can transition from reactive repairs to predictive maintenance, significantly extending the mean time between failures (MTBF).

2. Technical Standards for Professional Transformer Testing

In the international power engineering sector, testing efficiency must be paired with extreme accuracy. Professional diagnostics require equipment that can handle diverse vector groups and high-interference environments found in active substations. A high-tier Turns Ratio Tester should provide more than just a numerical ratio; it must offer phase angle measurement and excitation current data to help engineers distinguish between a simple tap changer error and a serious inter-turn short circuit.

3. Optimizing Field Workflow with Advanced Diagnostic Tools

Modern maintenance schedules demand rapid data acquisition without sacrificing safety. Structural improvements in testing technology now allow for simultaneous three-phase measurements, reducing the time spent in the "dead zone" of a power outage. For complex configurations, such as phase-shifting or Z-type transformers, specialized algorithms are employed to ensure the calculated ratio accounts for the inherent phase displacement, providing a clear pass/fail result based on international standards like IEEE or IEC.

4. Industrial-Grade Equipment Specifications

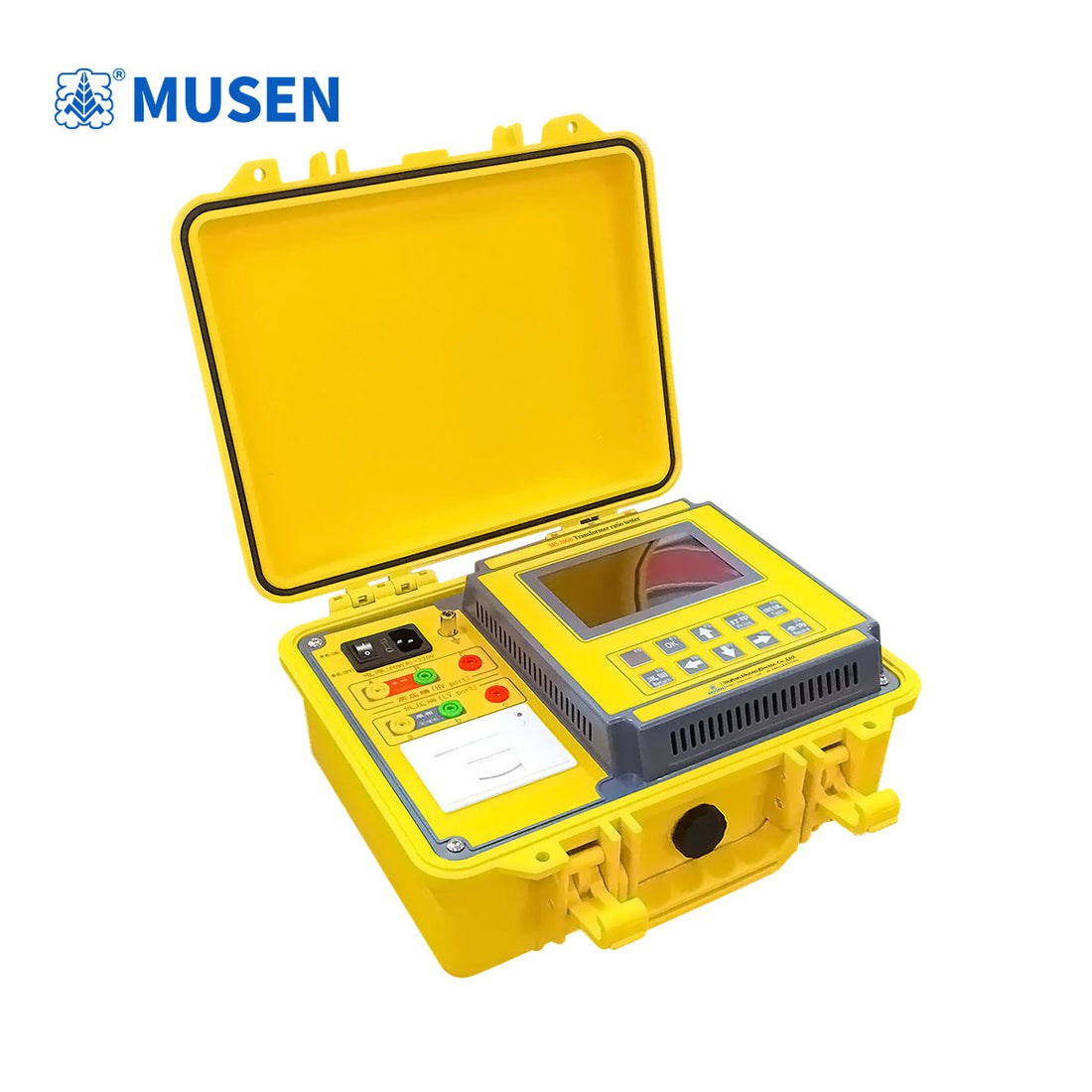

Wuhan Musen Electric Co., Ltd. specializes in high-precision diagnostic instruments designed for rigorous field use. Our equipment integrates the following technical advantages:

• Extensive Measurement Capability: Supports a wide turns ratio range from 0.9 up to 10,000.

• High-Speed Processing: Capable of completing single-phase diagnostics in under 5 seconds.

• Multi-Topology Support: Seamlessly tests Single-phase, Three-phase, and Z-type transformer windings.

• Intelligent Diagnostics: Features blind ratio testing, vector group identification, and tap position analysis.

• Operator Safety Systems: Built-in protection against high/low voltage reverse connections.

• Circuit Protection: Advanced safeguards against transformer short circuits and inter-turn faults.

Conclusion: The Strategic Value of Precise Maintenance

In conclusion, the systematic application of ratio testing is not just a checkbox in a maintenance log; it is a vital strategy for risk mitigation. By utilizing precision-engineered tools from Wuhan Musen Electric Co., Ltd., power engineers can ensure their infrastructure remains resilient against the demands of the modern grid. For detailed technical support and equipment sourcing, visit our international portal at www.musenelectric.com.

Frequently Asked Questions (FAQ)

Q1: What is the acceptable tolerance for a turns ratio test?

According to most international standards (such as IEEE C57.12.00), the measured ratio should be within 0.5% of the calculated nameplate ratio for the specific tap being tested.

Q2: Can a ratio test detect a fault that a DGA (Dissolved Gas Analysis) might miss?

Yes. While DGA detects chemical changes in oil due to heat or arcing, a ratio test detects physical movement or shorted turns that may not yet have caused significant oil degradation.

Q3: Is it necessary to test all tap positions during maintenance?

It is highly recommended to test the neutral position and the extreme high/low positions. However, for a comprehensive health assessment, testing all positions ensures the tap changer mechanism is functioning correctly across its entire range.

Q4: How does temperature affect the results of a turns ratio test?

Unlike winding resistance, the turns ratio is a physical property of the number of wire wraps and is generally not affected by temperature, making it one of the most stable and reliable field diagnostics available.
