How to Effectively Evaluate Cable Health with an Insulation Resistance Tester?

Insulation Resistance Tester, insulation tester for cables, high voltage insulation tester, 220kV power cable testing, electrical diagnostic tools

Learn how professional utility companies use an insulation resistance tester to prevent 220kV cable failures. This guide covers PI/DAR analysis, safety protocols, and advanced equipment selection for power engineering projects.

 1. Why is Insulation Resistance Testing Vital for High-Voltage Infrastructure?**

In large-scale power projects, the reliability of a 220kV system hinges on the dielectric strength of its insulation. An **Insulation Resistance Tester** is not merely a measurement tool; it is a critical diagnostic instrument used to identify moisture ingress, physical degradation, and thermal aging. For overseas power engineering firms, maintaining high insulation standards is the first line of defense against costly outages and equipment damage. By applying a stabilized DC voltage, these testers reveal leakage paths that are invisible to standard maintenance checks.

2. Critical Testing Metrics: Moving Beyond Simple Ohmic Values**

Professional utility operators rely on time-resistance methods to gauge insulation health. A simple spot reading can be influenced by temperature and humidity, which is why structural data analysis is required.
* **Polarization Index (PI):** A ratio of the 10-minute to 1-minute resistance, crucial for identifying deep-seated moisture in large transformer windings or long cable runs.
* **Dielectric Absorption Ratio (DAR):** Calculated from 60-second and 30-second readings to evaluate the immediate condition of the insulation surface.
* **Leakage Current & Capacitance:** High-end units provide real-time data on leakage current (in nA/µA) and capacitance, offering a 360-degree view of the asset's electrical integrity.

3. Optimizing Equipment Selection for 220kV Power Cable Projects**

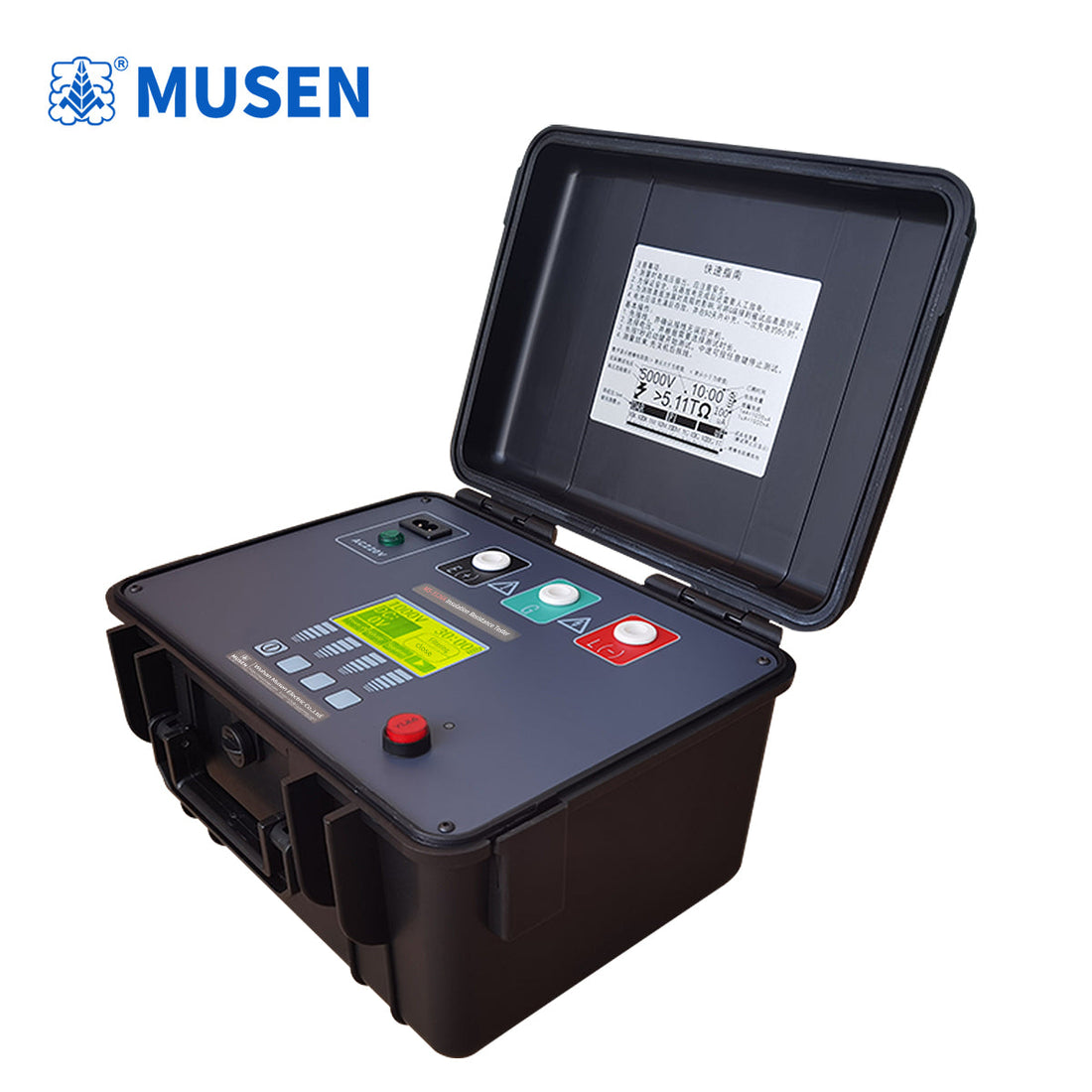

When selecting an **insulation tester for cables** in high-voltage environments, the equipment must withstand significant electromagnetic interference. At Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), we emphasize the need for high-output short-circuit currents to quickly charge long capacitive cable lines. A professional-grade **high voltage insulation tester** should feature robust shielding and automated discharge mechanisms to ensure both data accuracy and operator safety during field inspections.

 4. Advanced Technical Specifications for Utility-Grade Testers**

Modern electrical diagnostics require precision hardware. The following specifications represent the industry standard for reliable field performance:
* **Output Versatility:** Integrated ranges of 500V, 1000V, 2500V, 5000V, and 10000V, with a maximum measurement capability of 10TΩ.
* **Current Power:** Short-circuit current is adjustable up to 10mA, facilitating the rapid testing of high-capacitance specimens.
* **Interference Immunity:** Operates with high precision even in environments with up to 2mA of interference current.
* **Safety & Discharge:** Automatic rapid discharge for capacitive loads, eliminating the risks associated with manual discharge after cable testing.
* **Hybrid Power System:** Powered by high-capacity Li-ion batteries (4-hour endurance at 10kV) with seamless AC/DC switching and in-use charging capabilities.

 5. Frequently Asked Questions (FAQ) Regarding IR Testing**

**Q: What is the minimum acceptable insulation resistance for a 220kV cable?**
A: While standards vary by region (e.g., IEEE or IEC), a common benchmark is (V+1) MΩ, where V is the operating voltage in kV. However, for 220kV assets, readings should typically be in the GΩ or TΩ range.

**Q: Can a 5000V tester be used for 220kV cable maintenance?**
A: Yes, but a 10000V (10kV) **Insulation Resistance Tester** is preferred for high-voltage cables to provide a more rigorous stress test, making it easier to identify latent defects that a 5kV unit might miss.

**Q: Why does temperature affect my test results?**
A: Insulation resistance is inversely proportional to temperature. As temperature rises, molecular activity increases, leading to higher leakage current and lower resistance. Always normalize readings to 20°C or 40°C for accurate trend analysis.

**Q: How does the automatic discharge feature improve safety?**
A: Long cables act as massive capacitors. After testing at 10kV, the stored energy can be lethal. An automatic discharge function safely neutralizes this charge within seconds, protecting the technician and the instrument.
