How to Detect Insulation Failure in Power Transformers Early?

Dielectric Analyzer, tanδ Test Kit, Dielectric Loss Test Kit, Dielectric Loss (tanδ) Tester, Dielectric Loss Angle Tester

Is your transformer at risk? Learn how to use a professional Dielectric Analyzer to measure tan delta and capacitance, detecting moisture and aging in high-voltage insulation before costly failures occur.

### **1. Why is Dielectric Loss the Key Indicator of Insulation Health?**

In high-voltage engineering, the condition of a transformer's insulation determines its lifespan. A **Dielectric Analyzer** measures the tangent delta (tanδ) and capacitance to assess whether the insulation medium—typically oil and paper—has been compromised. In an ideal scenario, insulation acts as a perfect capacitor; however, factors like thermal stress and chemical decomposition introduce resistive leakage currents. By quantifying these losses, engineers at **Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com))** can pinpoint specific issues such as:

* **Moisture Ingress:** Water molecules increase ionic conductivity, leading to a sharp rise in tanδ.
* **Insulation Aging:** Natural depolymerization of cellulose paper changes the dielectric constant.
* **Oil Degradation:** Oxidation products in transformer oil increase dielectric losses significantly.

### **2. How to Perform Accurate tanδ Measurements in High-Interference Sites?**

Field testing in energized substations is challenging due to electromagnetic interference (EMI). To ensure data integrity, a modern **tanδ Test Kit** must employ frequency-shifting technology. By applying test voltages at frequencies like 45Hz or 55Hz, the system can mathematically isolate and reject the 50Hz/60Hz noise from the power grid. This structural approach to data collection ensures that the results reflect the true state of the equipment rather than environmental noise. Engineers should follow a strict testing sequence:

1. **UST Mode (Ungrounded Specimen Test):** Isolates the insulation between two terminals.
2. **GST Mode (Grounded Specimen Test):** Measures the insulation of a component that is permanently connected to the ground.
3. **Temperature Correction:** All readings must be normalized to 20°C using standard conversion factors to maintain historical consistency.

### **3. What Are the Technical Specifications for Professional Testing Equipment?**

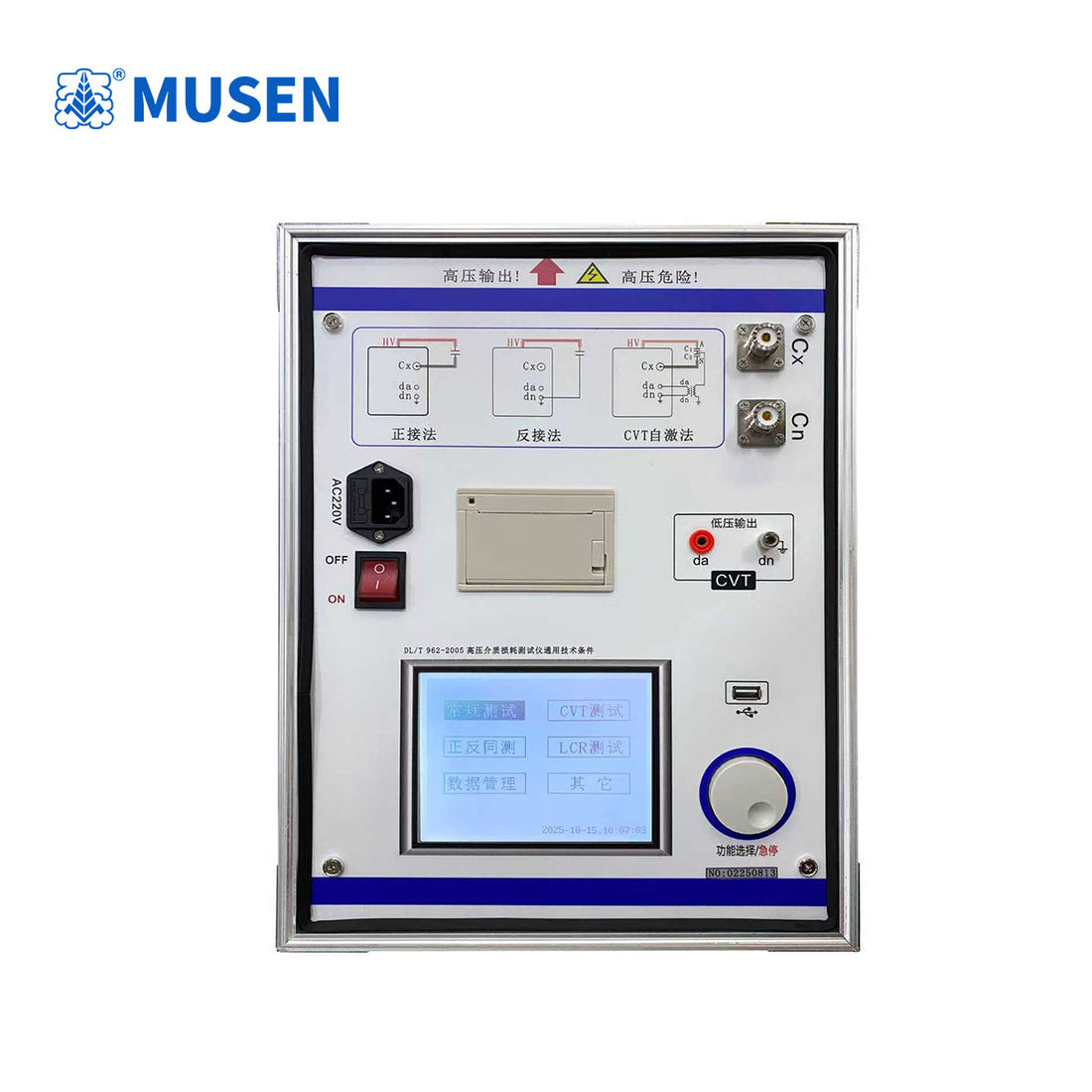

For global power utilities and maintenance service providers, the choice of a **Dielectric Loss Test Kit** depends on its versatility and precision. The technical team at **Wuhan Musen Electric Co., Ltd.** has developed systems that integrate multiple diagnostic functions into a single portable unit. High-performance units are characterized by the following technical parameters:

* **Integrated CVT Functionality:** Equipped with CVT self-excitation testing, allowing for the simultaneous measurement of C1 and C2 capacitance and Tgδ with a single connection.
* **Advanced Shielding:** Features low-voltage and high-voltage shielding functions, enabling 10kV reverse-connection measurements on CVT buses while grounded, without disconnecting overhead lines.
* **External Reference Support:** Capable of utilizing external voltage sources and reference capacitors (Cn) for specialized laboratory or ultra-high voltage applications.
* **Multi-Channel Synchronization:** Supports simultaneous measurement across four channels to increase efficiency during large-scale commissioning.
* **Extended Diagnostic Suite:** Includes built-in ratios for 35-500kV CVTs, insulation resistance testing (PI and DAR), and LCR automatic measurement for inductance and resistance.

### **4. How to Interpret Capacitance and Dissipation Factor Trends?**

Data without context is useless. A single measurement provides a snapshot, but trend analysis reveals the "health trajectory" of the asset. When reviewing data from a **Dielectric Loss (tanδ) Tester**, engineers look for specific data signatures:

* **Stable tanδ / Rising Capacitance:** Indicates physical displacement or deformation of the windings or capacitor layers.
* **Rising tanδ / Stable Capacitance:** Typically suggests uniform moisture contamination or early-stage oil sludge formation.
* **Voltage Tip-Up:** If the dissipation factor increases as the test voltage increases, it is a strong indicator of partial discharge or internal voids in solid insulation.

### **5. Frequently Asked Questions Regarding Dielectric Analysis**

**Q1: Can this equipment test grounded CVTs without disconnecting the leads?**
A1: Yes. Our systems feature high-voltage reverse-connection shielding, allowing you to test C11 on a grounded CVT bus at 10kV without the labor-intensive process of removing high-altitude connections.

**Q2: What is the benefit of the CVT Ratio measurement feature?**
A2: It allows the operator to verify the voltage transformation accuracy and phase error of CVT units from 35kV up to 500kV, serving as a comprehensive verification tool during commissioning.

**Q3: Does the device support insulation resistance testing?**
A3: Certain configurations of our **Dielectric Analyzer** include a built-in insulation resistance module capable of calculating the Polarization Index (PI) and Absorption Ratio (DAR) automatically.

**Q4: How does the multi-channel function improve field efficiency?**
A4: By using four independent measurement channels, technicians can test multiple bushings or phases simultaneously, reducing the total time spent in the "outage window" by up to 60%.

**Q5: Is the equipment compatible with external high-voltage sources?**
A5: Absolutely. The unit is designed with an external standard capacitor interface, allowing it to act as a bridge for measurements when using external HV sources for high-capacity test objects.
